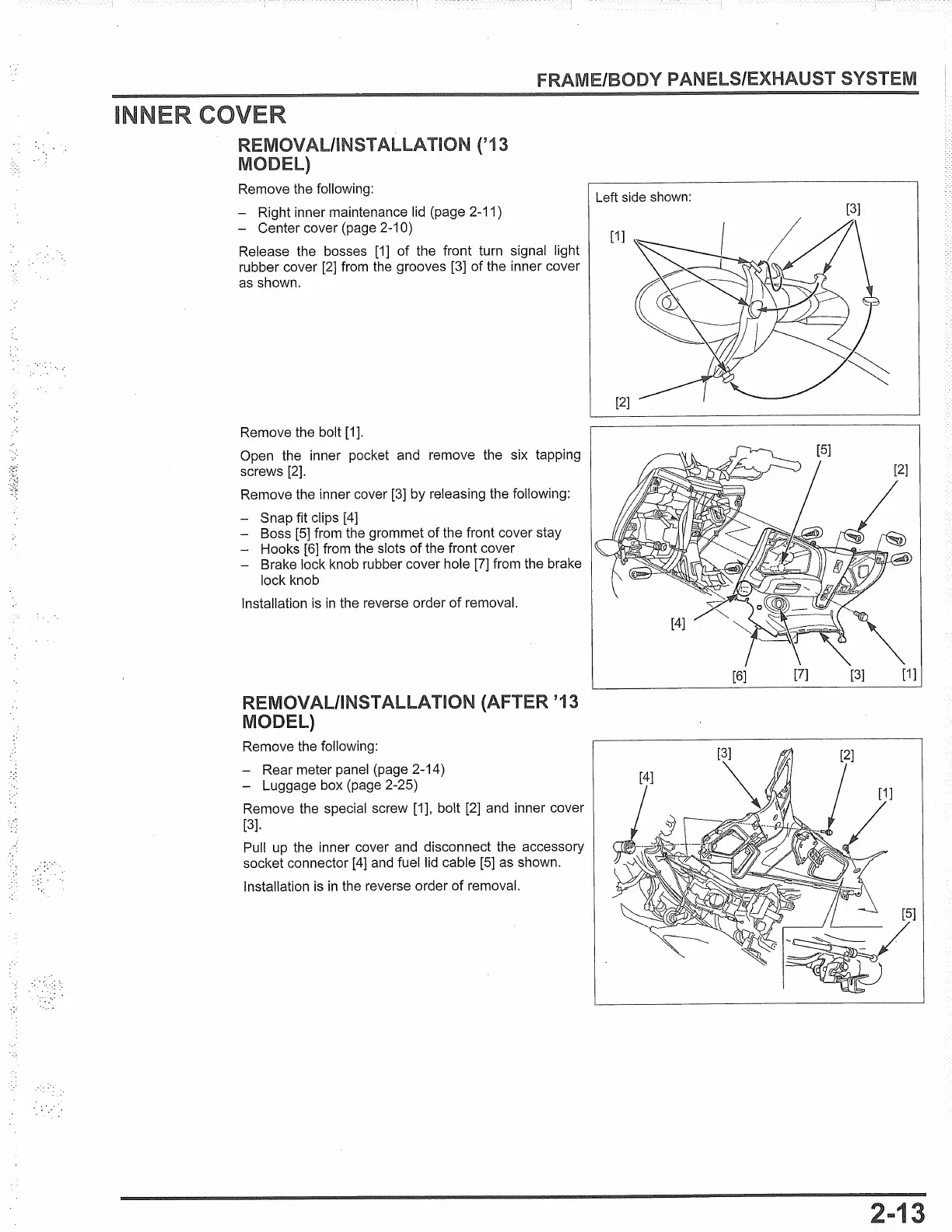

FRAME/BODY
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
- Right inner maintenance lid (page 2-11)
- Center cover (page 2-10)
Release the bosses
[1]
of the front turn signal light
rubber cover
[2]
from the grooves [3] of the inner cover
as
shown.
Remove the bolt [1].
Open the inner pocket and remove the six tapping
screws [2].
Remove the inner cover
[3]
by releasing the following:
Snap fit clips
[4]
- Boss [5] from the grommet of the front cover stay
- Hooks
[6]
from the slots
of
the front cover
- Brake lock knob rubber cover hole
[7]
from the brake
lock knob
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the following:
- Rear meter panel (page 2-14)
- Luggage box (page 2-25)
Remove the special screw [1], bolt [2] and inner cover
[3].
Pull
up
the inner cover and disconnect the accessory
socket connector
[4]
and
fuel lid cable
[5]
as
shown.
Installation
is
in
the reverse order
of
removal.
Left side shown:
[1]
[2]
ELS/EXHAUST SYSTEM
[3] [1]
