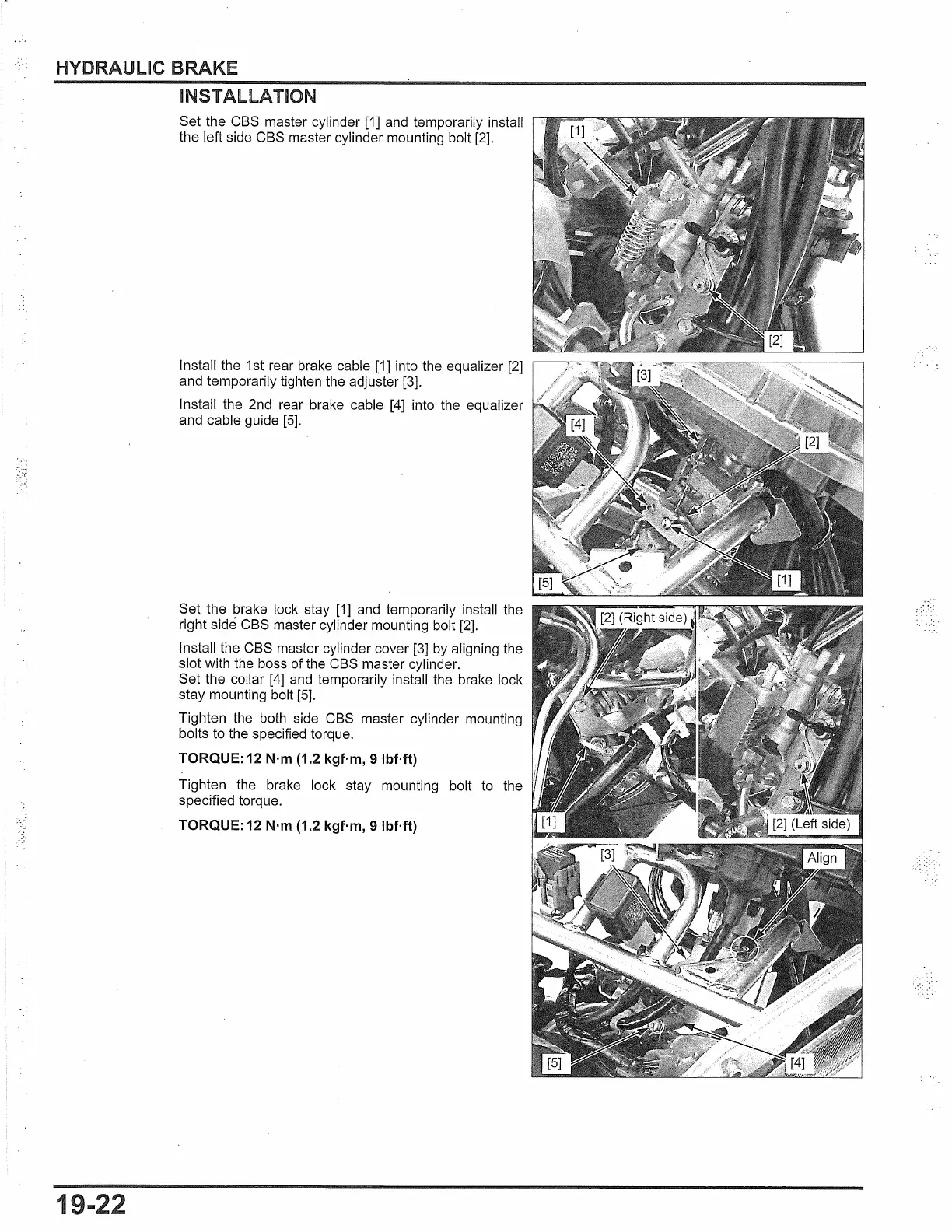

HYDRAULIC BRAKE
19-22
INSTALLATION
Set the CBS master cylinder
[1]
and temporarily install
the left side CBS master cylinder mounting bolt
[2].
Install the 1st rear brake cable
[1]
into the equalizer
[2]
and temporarily tighten the adjuster [3].
Install the 2nd rear brake cable
[4]
into the equalizer
and cable guide
[5].
Set the brake lock stay
[1]
and temporarily install the
right side CBS master cylinder mounting bolt
[2].
Install the CBS master cylinder cover
[3]
by aligning the
slot with the boss of the
CBS
master cylinder.
Set the collar
[4]
and
temporarily install the brake lock
stay mounting bolt
[5].
Tighten the both side
CBS
master cylinder mounting
bolts to the specified torque.
TORQUE: 12 N·m (1.2 kgf·m, 9
lbHt)
Tighten the brake lock stay mounting bolt
to
the
specified torque.
TORQUE: 12 N·m (1.2 kgf·m, 9
lbHt)

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
