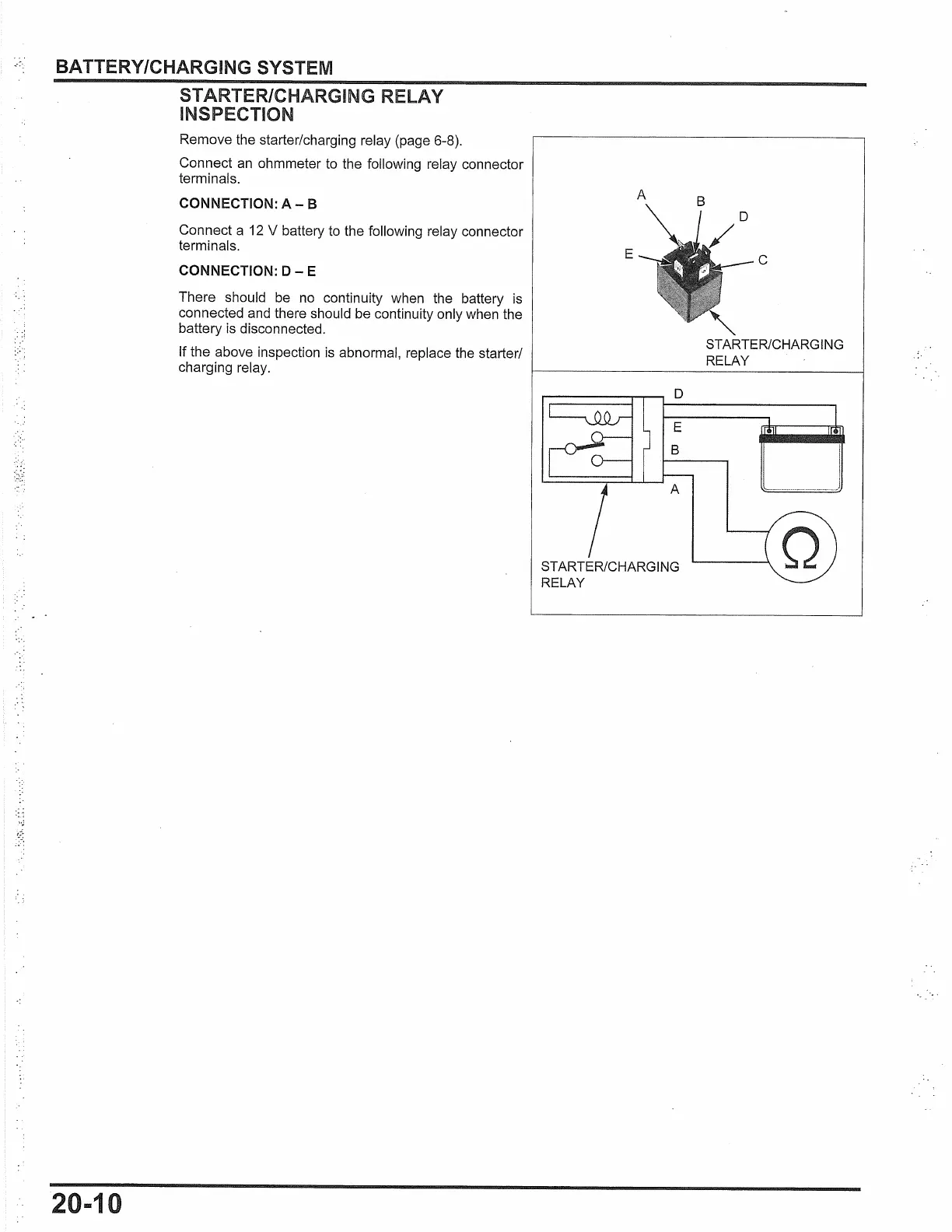

Honda PCX150 2016 User Manual

BATTERY/CHARGING SYSTEM
20-10
STARTER/CHARGING RELAY
INSPECTION
Remove the starter/charging relay (page 6-8).
Connect
an
ohmmeter to the following relay connector
terminals.
CONNECTION:A-B
Connect a 12 V battery to the following relay connector
terminals.
CONNECTION: D - E
There should be no continuity when the battery is
connected and there should be continuity only when the
battery is disconnected.
If the above inspection is abnormal, replace the starter/
charging relay.
E
D
E
B
A
STARTER/CHARGING
RELAY
C
STARTER/CHARGING
RELAY

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
