Honda PCX150 2016 User Manual

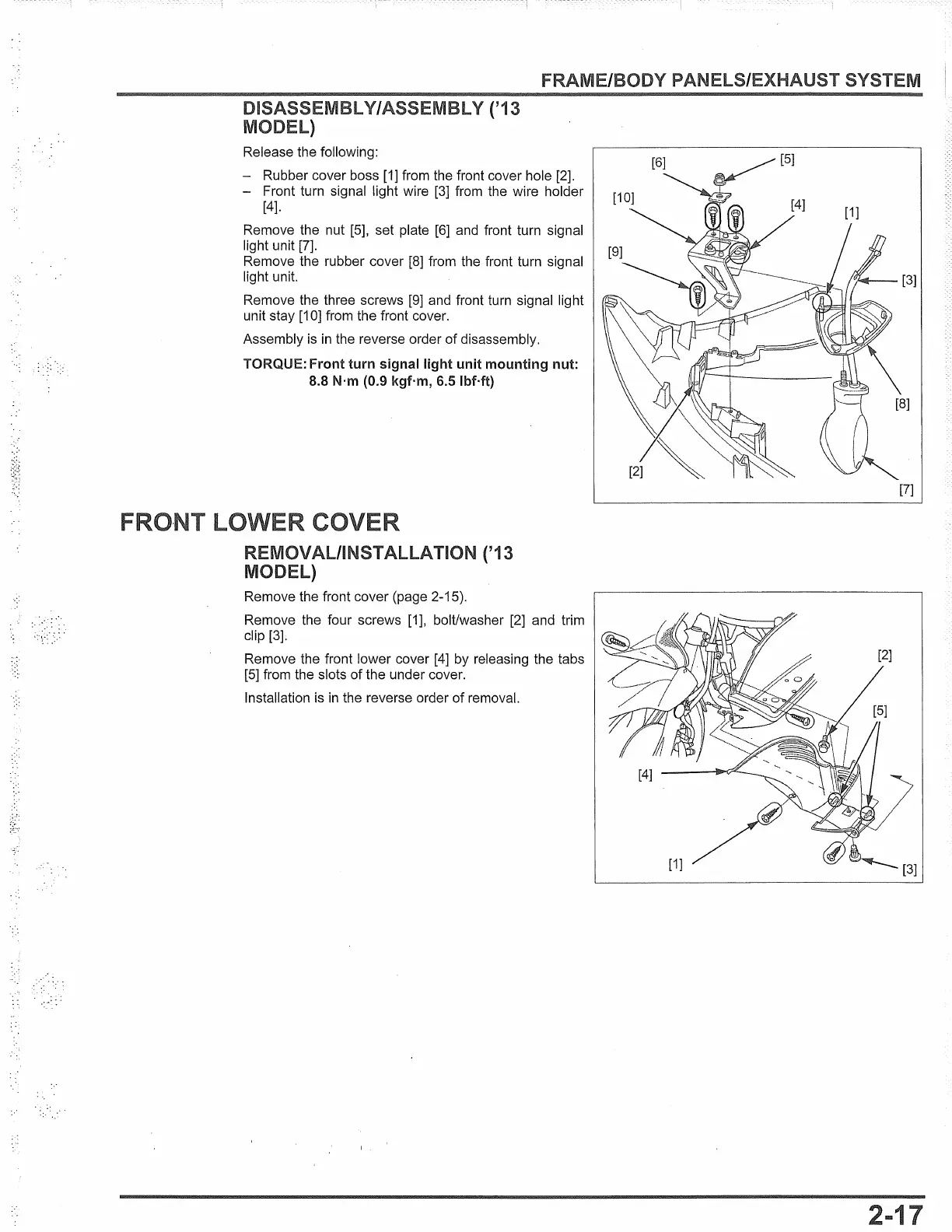

FRAME/BODY
('13
MODEL)
Release the following:
- Rubber cover boss
[1] from the front cover hole [2].
- Front turn signal light wire
[3] from the wire holder
[4].
Remove the nut [5], set plate [6] and front turn signal
light unit [7].
Remove the rubber cover
[8] from the front turn signal
light unit.
Remove the three screws [9] and front turn signal light
unit stay
[1 O] from the front cover.
Assembly
is in the reverse order of disassembly.
TORQUE: Front turn signal light unit mounting nut:
8.8 N·m (0.9 kgf·m, 6.5 lbMt)
REMOVAL/INSTALLATION ('13
MODEL)
Remove the front cover (page 2-15).
Remove the four screws [1], bolt/washer [2] and trim
clip [3].
Remove the front lower cover [4] by releasing the tabs
[5] from the slots of the under cover.
Installation is
in the reverse order of removal.
SYSTEM
[7]
[1]
/
[3]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
