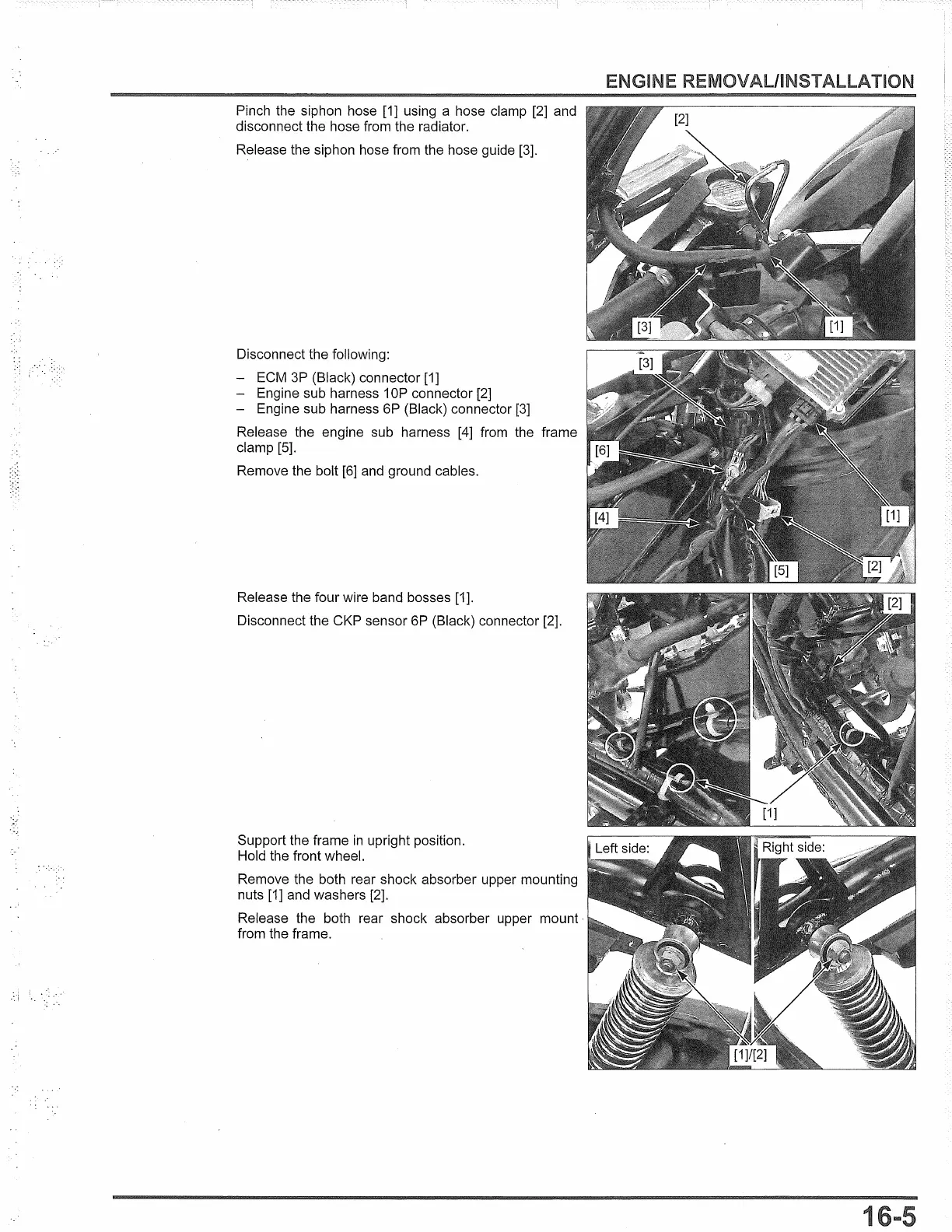

Pinch the siphon hose [1] using a hose clamp [2] and
disconnect the hose from the radiator.
Release the siphon hose from the hose guide [3].
Disconnect the following:
- ECM
3P (Black) connector [1]
- Engine sub harness 1
OP connector [2]
- Engine sub harness 6P (Black) connector [3]
Release the engine sub harness [4] from the frame
clamp [5].
Remove the bolt
[6] and ground cables.
Release the four wire band bosses [1].
Disconnect the CKP sensor
6P (Black) connector [2].
Support the frame
in upright position.
Hold the front wheel.
Remove the both rear shock absorber upper mounting
nuts
[1] and washers [2].
Release the both rear shock absorber upper mount·
from the frame.
ENGINE REMOVAL/INSTALLATION
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
