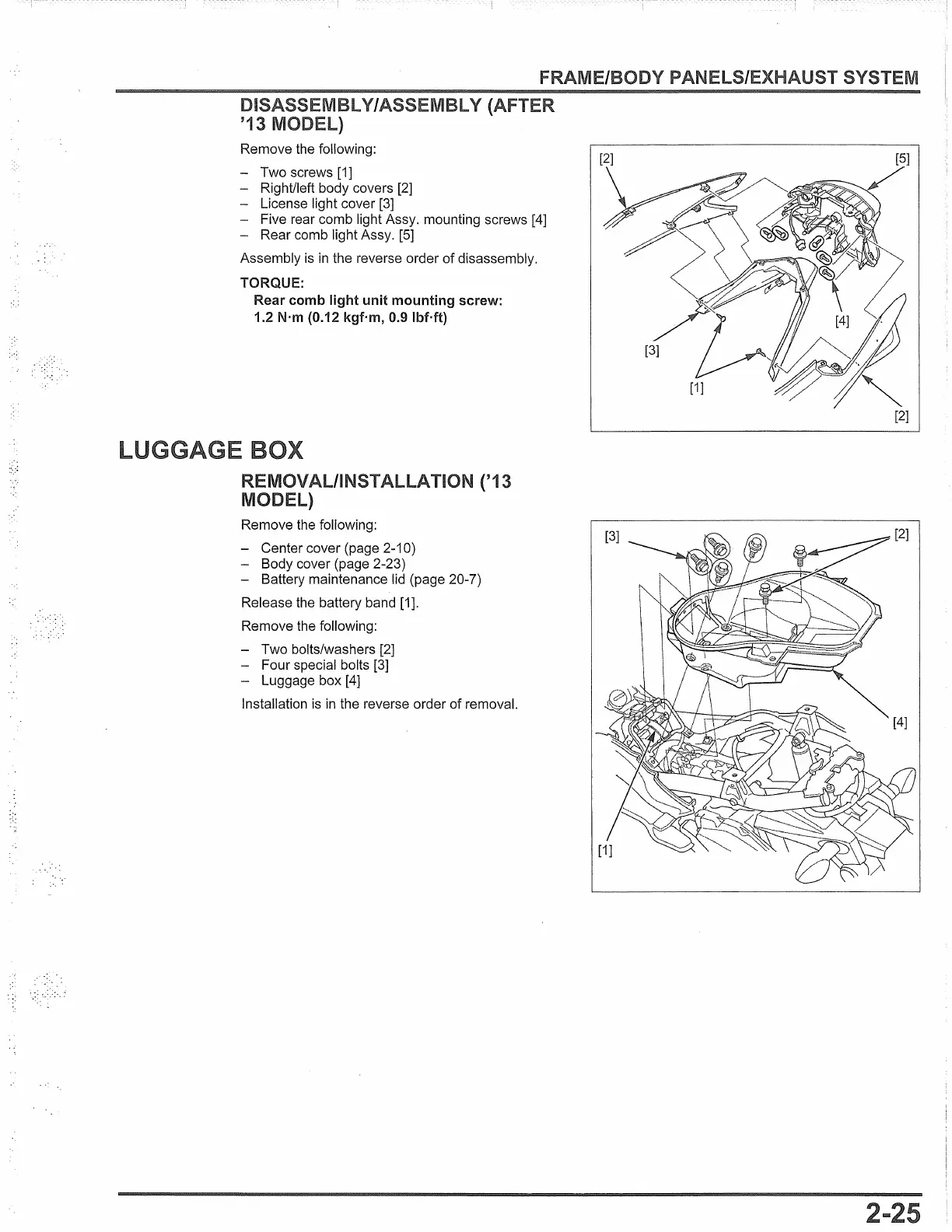

DISASSEMBLY/ASSEMBLY
'13 MODEL)
Remove the following:
- Two screws [1]
- Right/left body covers [2]
- License light cover
[3]
FRAME/BODY PANELS/EXHAUST SYSTEM
- Five rear comb light Assy. mounting screws [4]
- Rear comb light Assy. [5]
Assembly
is in the reverse order of disassembly.
TORQUE:
Rear comb light unit mounting screw:
1.2 N·m (0.12 kgf·m, 0.9
lbMt)
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
Center cover (page 2-10)
- Body cover (page 2-23)
- Battery maintenance lid (page 20-7)
Release the battery band [1].
Remove the following:
- Two bolts/washers [2]
- Four special bolts [3]
- Luggage box [4]
Installation
is in the reverse order of removal.
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
