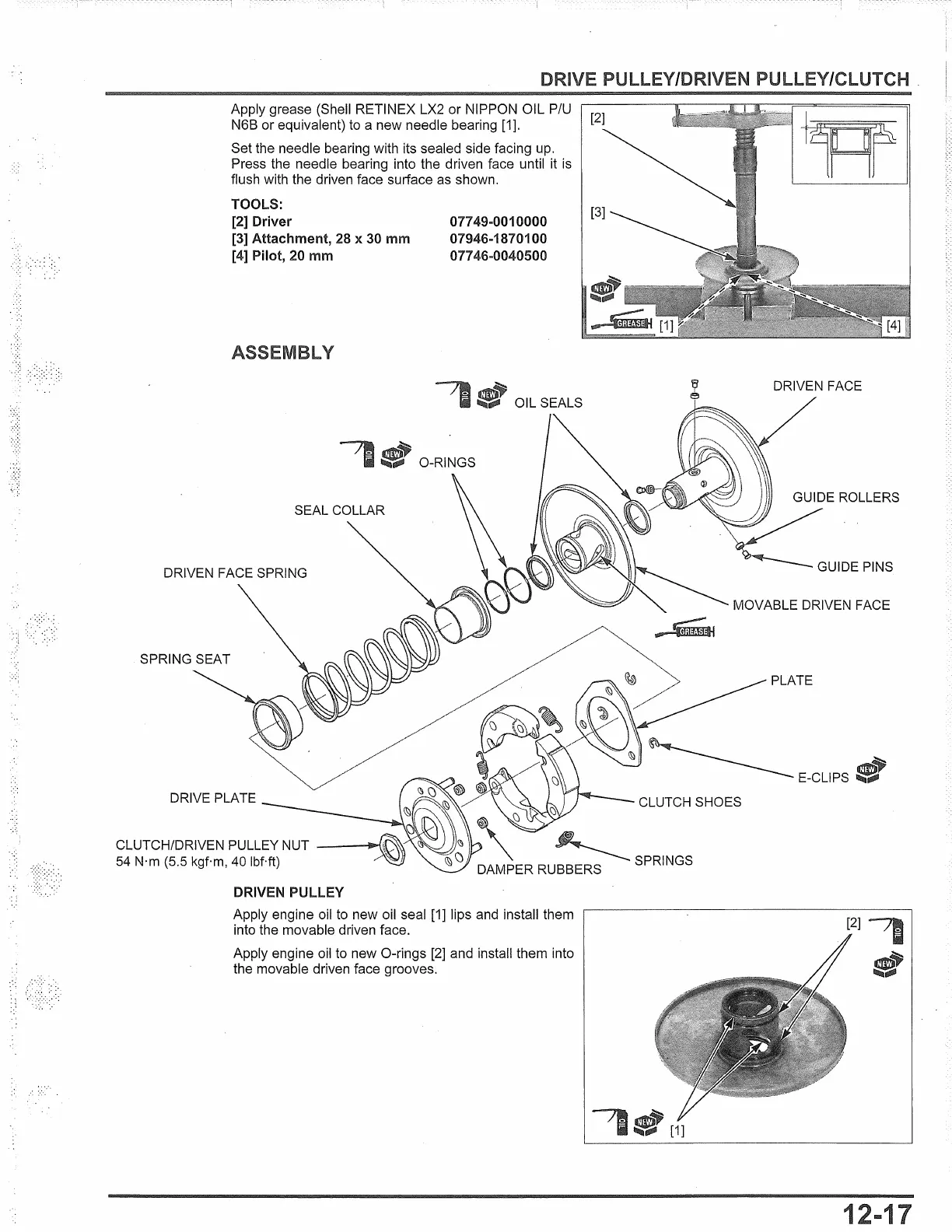

Apply grease (Shell RETINEX LX2 or NIPPON OIL P/U
N6B or equivalent) to a new needle bearing [1].
Set the needle bearing with its sealed side facing up.
Press the needle bearing into the driven face until it
is
flush with the driven face surface as shown.
TOOLS:
[2] Driver
[3] Attachment, 28 x 30
mm
[4] Pilot, 20 mm
ASSEMBLY
SEAL COLLAR
DRIVEN PULLEY
077 49-0010000
07946-1870100
077 46-0040500
Apply engine oil to new oil seal [1] lips and install them
into the movable driven face.
Apply engine oil
to new 0-rings [2] and install them into
the movable driven face grooves.
DRIVEN FACE
MOVABLE DRIVEN FACE
CLUTCH SHOES
~
S [1]
PLATE
[2]
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
