Honda PCX150 2016 User Manual

< < · ..

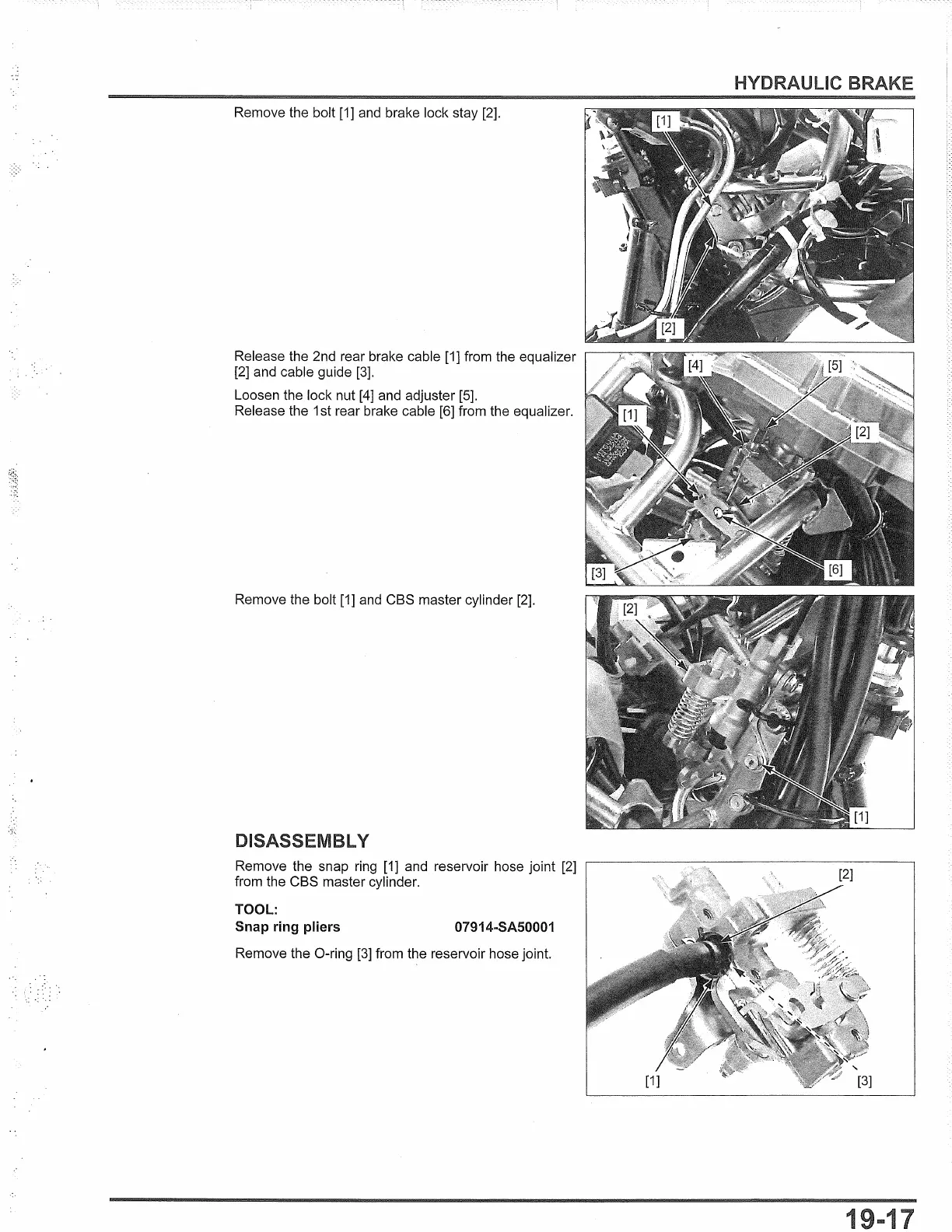

Remove the bolt [1] and brake lock stay [2].
Release the 2nd rear brake cable [1] from the equalizer
[2] and cable guide [3].
Loosen the lock nut [4] and adjuster [5].
Release the 1st rear brake cable [6] from the equalizer.
Remove the bolt
[1] and CBS master cylinder [2].
DISASSEMBLY
Remove the snap ring [1] and reservoir hose joint [2]
from the CBS master cylinder.
TOOL:
Snap ring pliers
07914-SA50001
Remove the 0-ring [3] from the reservoir hose joint.
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
