Honda PCX150 2016 User Manual

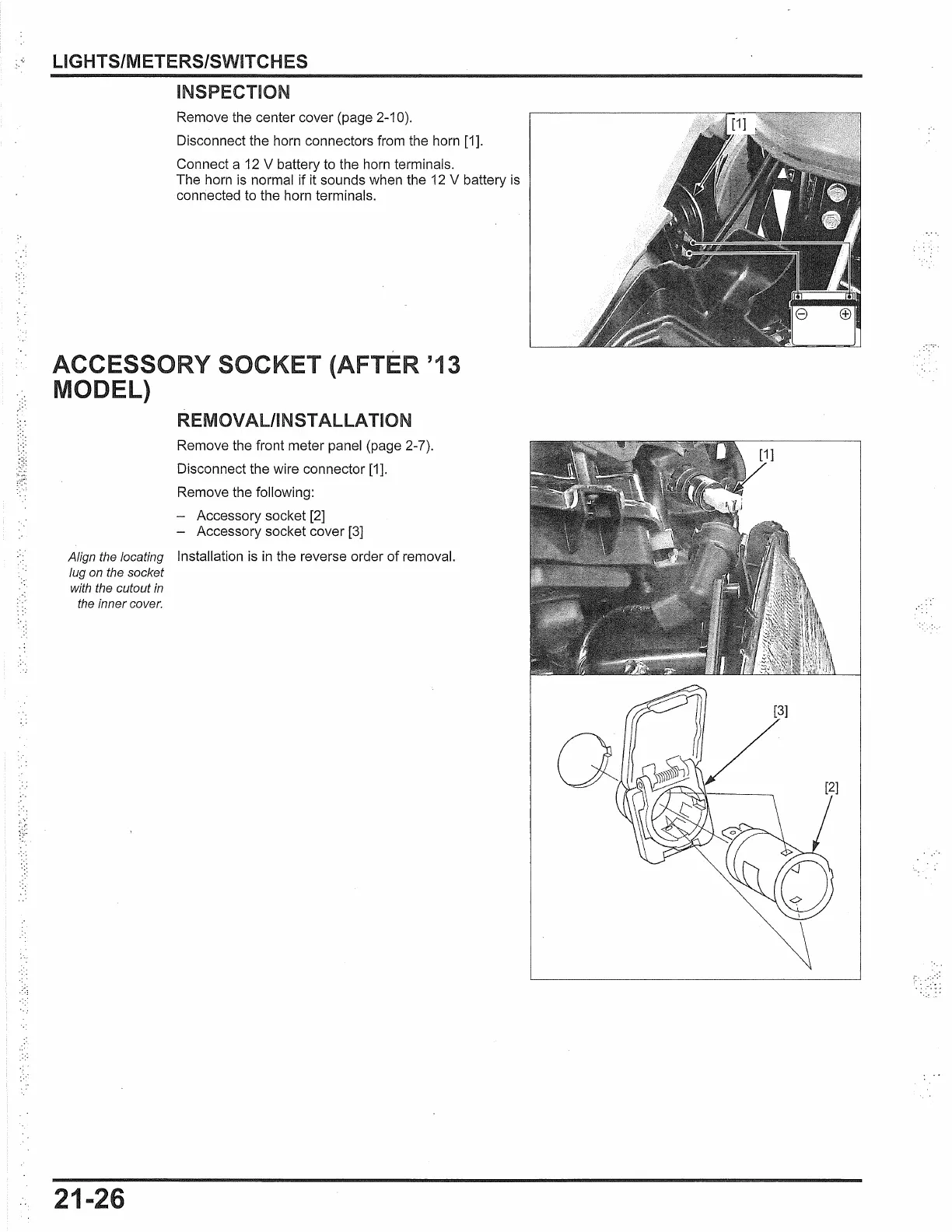

LIGHTS/METERS/SWITCHES
INSPECTION
Remove the center cover (page 2-10).
Disconnect the horn connectors from the horn [1].
Connect a 12 V battery to the horn terminals.
The horn
is normal if it sounds when the 12 V battery is
connected to the horn terminals.
ACCESSORY SOC
MODEL)
(AFTER '13
REMOVAL/INSTALLATION
Remove the front meter panel (page 2-7).
Disconnect the wire connector [1].
Remove the following:
- Accessory socket [2]
- Accessory socket cover
[3]
Align the locating Installation is in the reverse order of removal.
lug on the socket
with the cutout
in
the inner cover.
21-26

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
