Honda PCX150 2016 User Manual

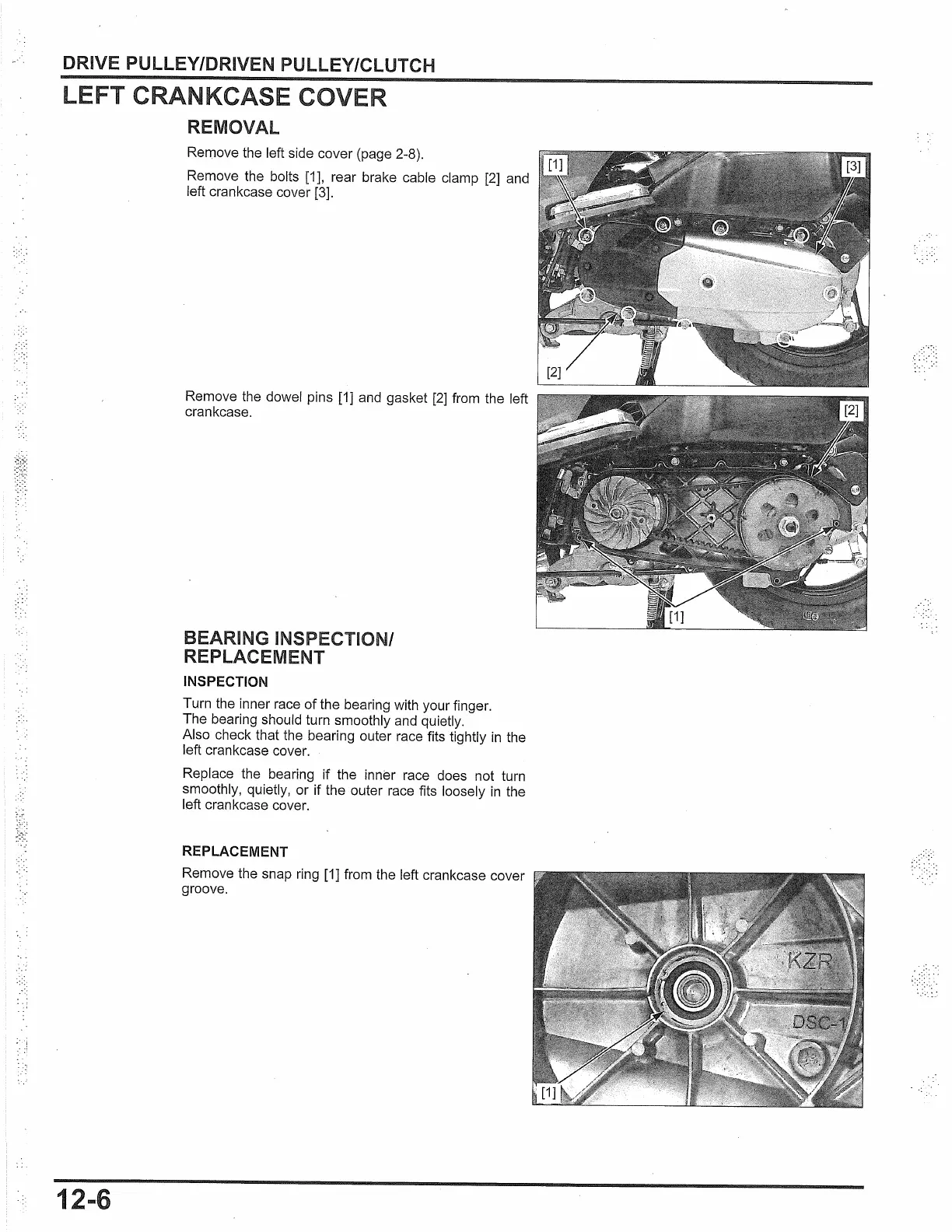

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
FT CRANKCASE COVER
REMOVAL
12-6
Remove the left side cover (page 2-8).
Remove the bolts [1], rear brake cable clamp [2] and
left crankcase cover [3].
Remove the dowel pins [1] and gasket
[2]
from the left
crankcase.
BEARING INSPECTION/
REPLACEMENT
INSPECTION
Turn the inner race
of
the bearing with your finger.
The bearing should turn smoothly and quietly.
Also check that the bearing outer race fits tightly
in
the
left crankcase cover.
Replace the bearing if the inner race does not turn
smoothly, quietly, or if the outer race fits loosely
in
the
left crankcase cover.
REPLACEMENT
Remove the snap ring [1] from the left crankcase cover
groove.

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
