Honda PCX150 2016 User Manual

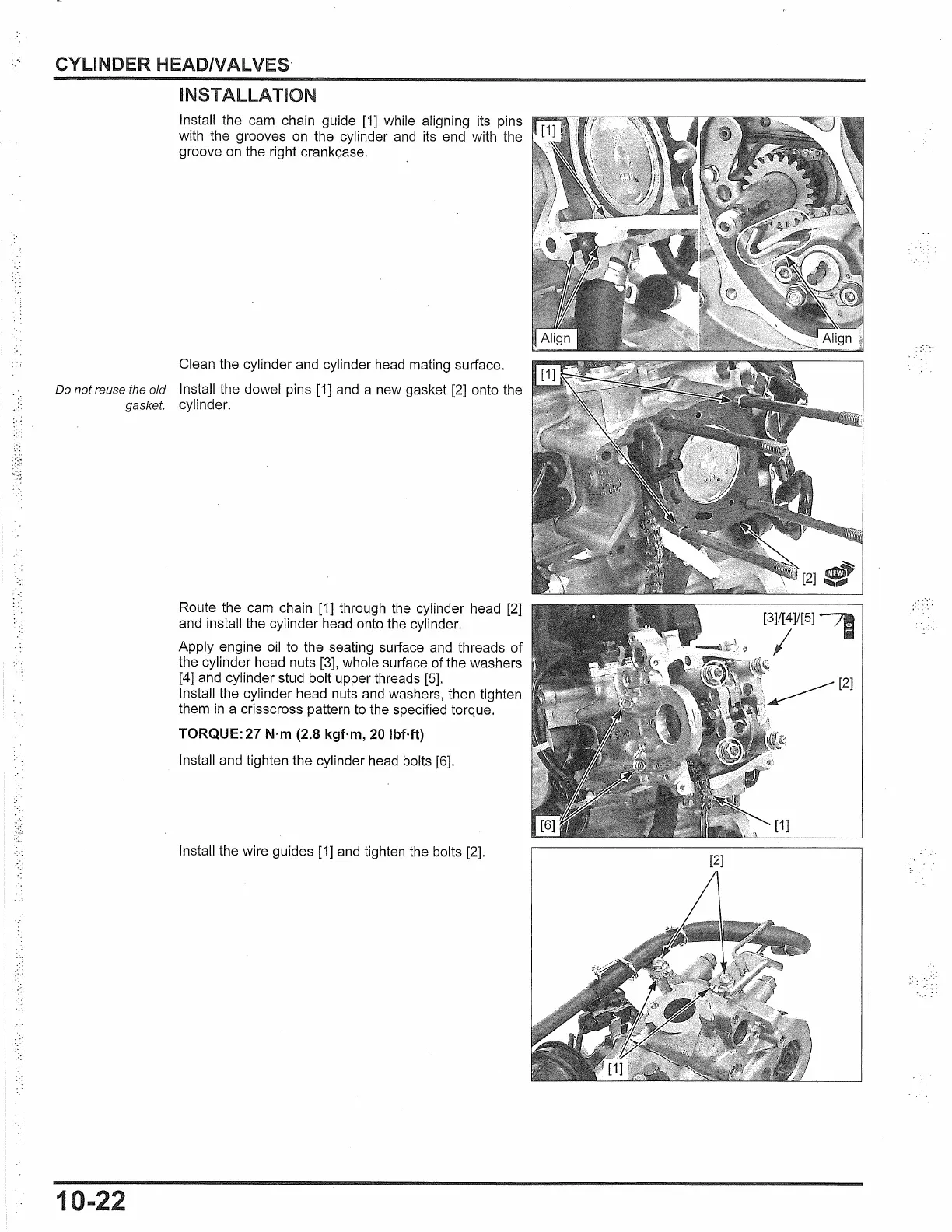

CYLINDER HEADNALVES·
INSTALLATION
Install the cam chain guide
[1]
while aligning its pins
with the grooves
on
the cylinder
and
its end with the
groove
on
the right crankcase.
Clean the cylinder and cylinder head mating surface.
Do not reuse the old
Install the dowel pins [1] and a new gasket [2] onto the
gasket.
cylinder.
10-22
Route the cam chain
[1]
through the cylinder head [2]
and install the cylinder head onto the cylinder.
Apply engine
oil
to the seating surface and threads of
the cylinder head nuts [3], whole surface of the washers
[4] and cylinder stud bolt upper threads
[5].
Install the cylinder head nuts and washers, then tighten
them
in
a crisscross pattern to the specified torque.
TORQUE: 27 N·m (2.8 kgf·m, 20 lbf·ft}
Install and tighten the cylinder head bolts [6].
Install the wire guides [1] and tighten the bolts [2].
[2]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
