FUEL

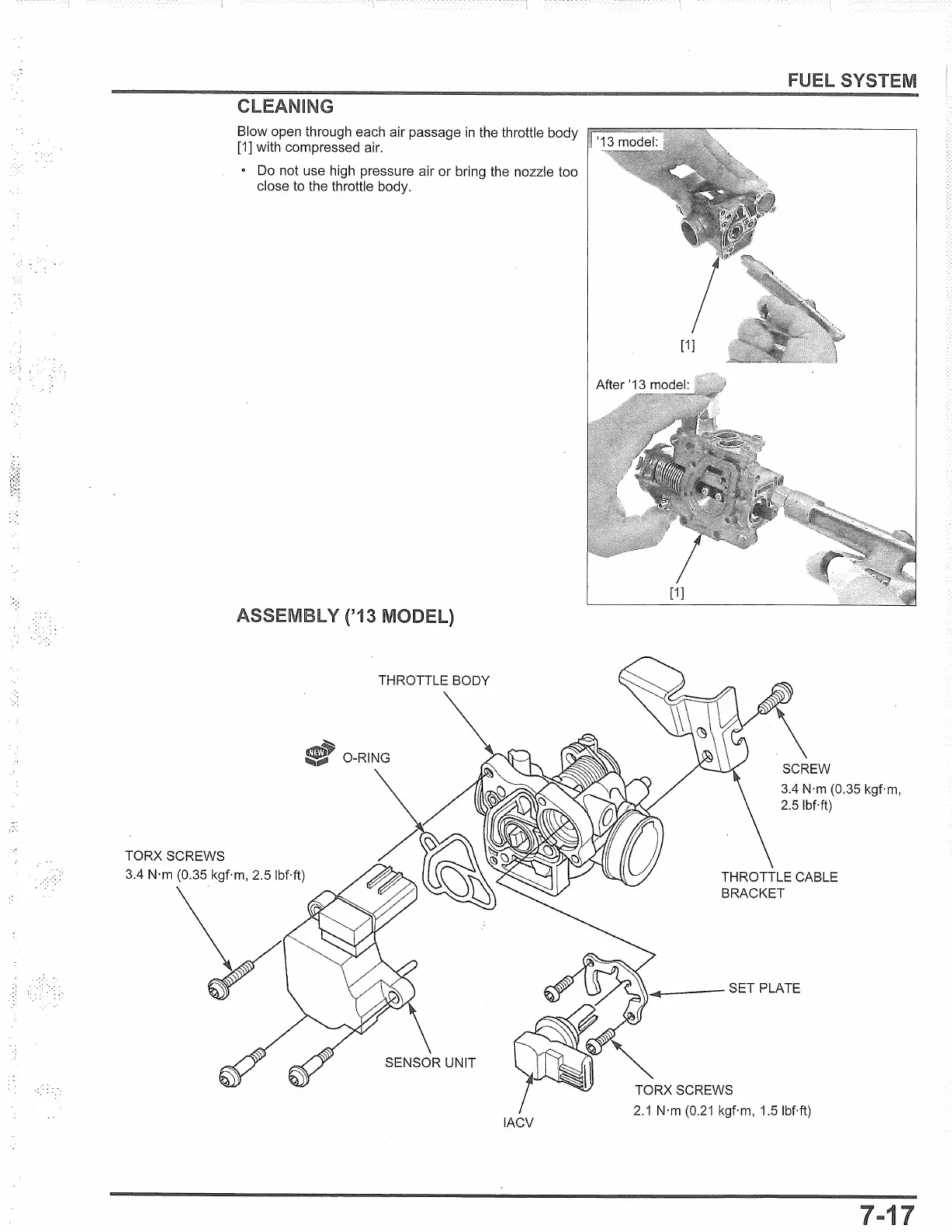

CLEANING
Blow open through each air passage
in
the throttle body
~--=
TORX SCREWS
[1] with compressed air.
• Do not use high pressure air or bring the nozzle too
close to the throttle body.
('13 MODEL)
0-RING
3.4 N·m (0.35 kgf·m, 2.5 lbf-ft)
IACV
3.4 N·m (0.35 kgf-m,
2.5 lbf·ft)
2.1
N·m
(0.21
kgf-m, 1.5 lbf-ft)

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
