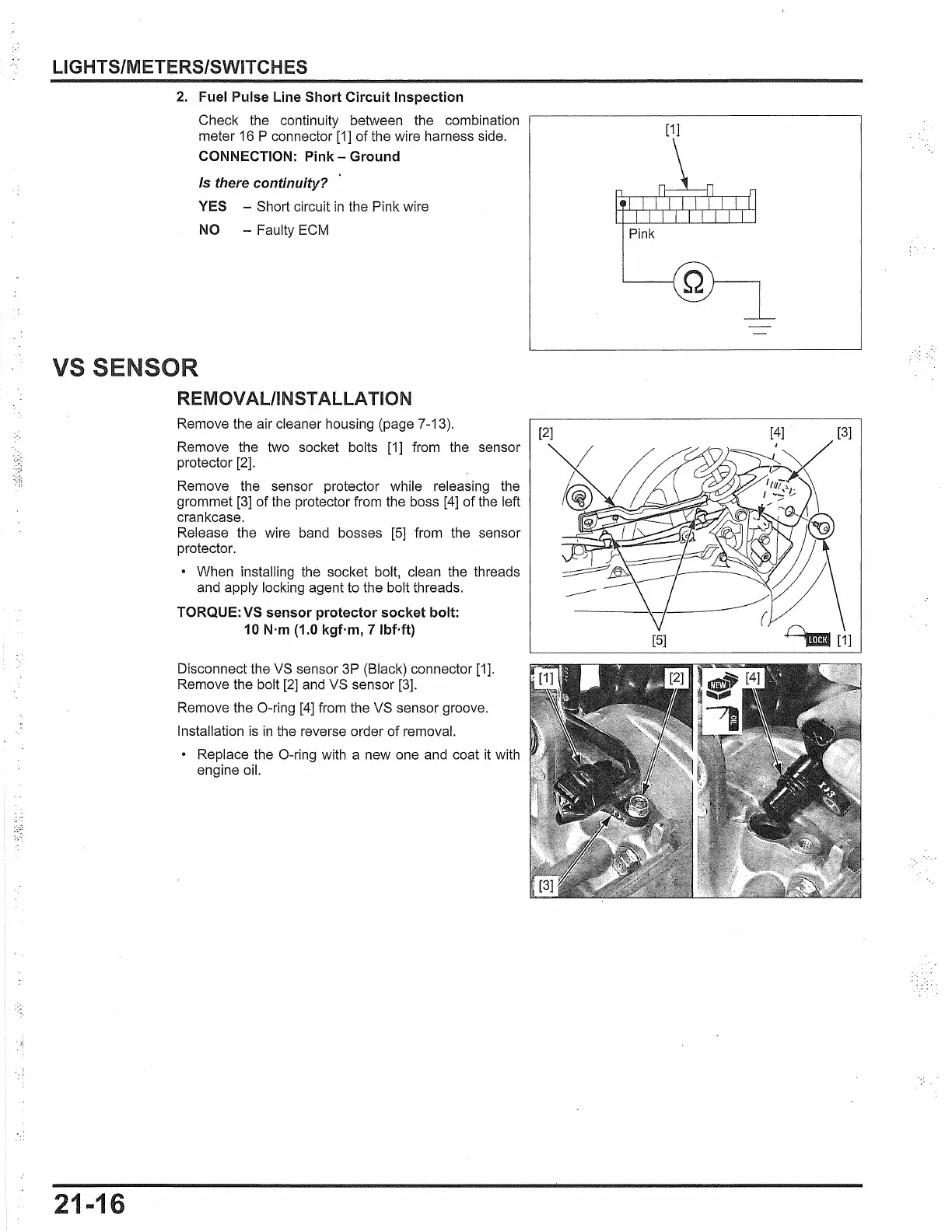

LIGHTS/METERS/SWITCHES
2. Fuel Pulse Line Short Circuit Inspection
Check the continuity between the combination
meter
16 P connector [1] of the wire harness side.
CONNECTION: Pink - Ground
Is there continuity?
YES - Short circuit in the Pink wire
NO - Faulty ECM
VS SENSOR
REMOVAL/INSTALLATION
21-16
Remove the air cleaner housing (page 7-13 ).
Remove the two socket bolts [1] from the sensor
protector [2].
Remove the sensor protector while releasing the
grommet [3] of the protector from the boss
[4] of the left
crankcase.
Release the wire band bosses
[5] from the sensor
protector.
• When installing the socket bolt, clean the threads
and apply locking agent
to the bolt threads.
TORQUE: VS sensor protector socket bolt:
10 N·m (1.0 kgf·m, 7 lbMt)
Disconnect the VS sensor 3P (Black) connector [1].
Remove the bolt [2] and VS sensor [3].
Remove the 0-ring
[4] from the VS sensor groove.
Installation
is in the reverse order of removal.
• Replace the 0-ring with a new one and coat it with
engine oil.
[1]
Pink

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
