Honda PCX150 2016 User Manual

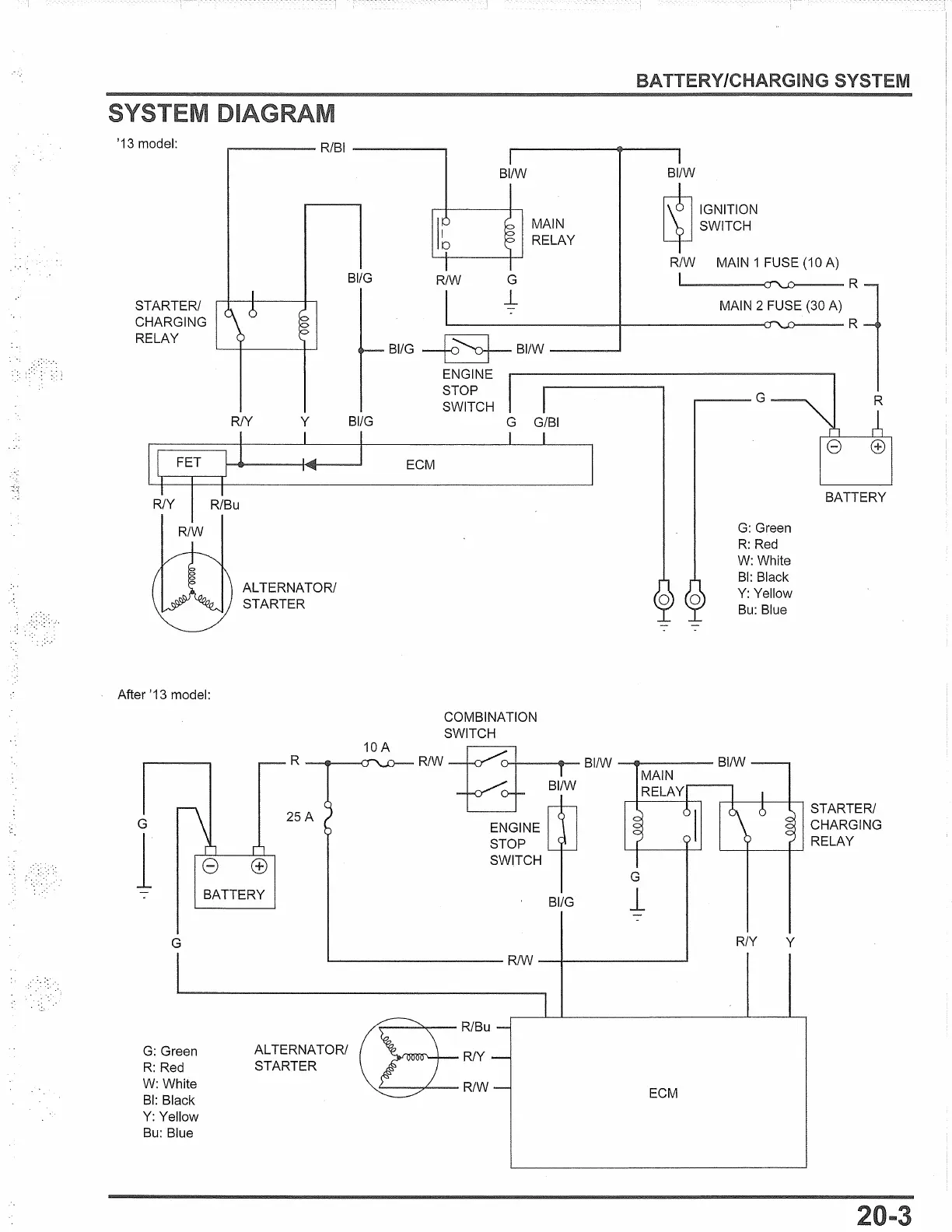

SYSTEM
'13 model:
....----- R/BI ------.
STARTER/
CHARGING
RELAY
11 FET
R~ I
R/W
After '13 model:
G
1
R/Bu
y
I
AL TERNA TOR/
STARTER
25A
BATTERY
G
G: Green
R: Red
W: White
Bl: Black
Y:
Yellow
Bu: Blue
AL TERNA TOR/
STARTER
BI/G
BI/G
I
BI/W
R/W G
J_
MAIN
RELAY
BI/W
~ IGNITION
L)J SWITCH
R/W MAIN 1 FUSE (10 A)
I crv;; R
MAIN 2 FUSE (30 A)
.__-------~--------<T'l'-..l)--- R
BI/G
~ BI/W ----
ENGINE
ECM
STOP
SWITCH
G G/BI
I I
COMBINATION
SWITCH
---G
G: Green
R:Red
W: White
Bl: Black
Y: Yellow
Bu: Blue
BATTERY
10 A
R/W
~ BI/W -----BI/W
ca
R/Bu
R/Y
R/W
ENGINE
STOP
SWITCH
MAIN
BI/W
RELAY
G
BI/G
1
ECM
.--f--t---<--,
R/Y y
STARTER/
CHARGING
RELAY

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
