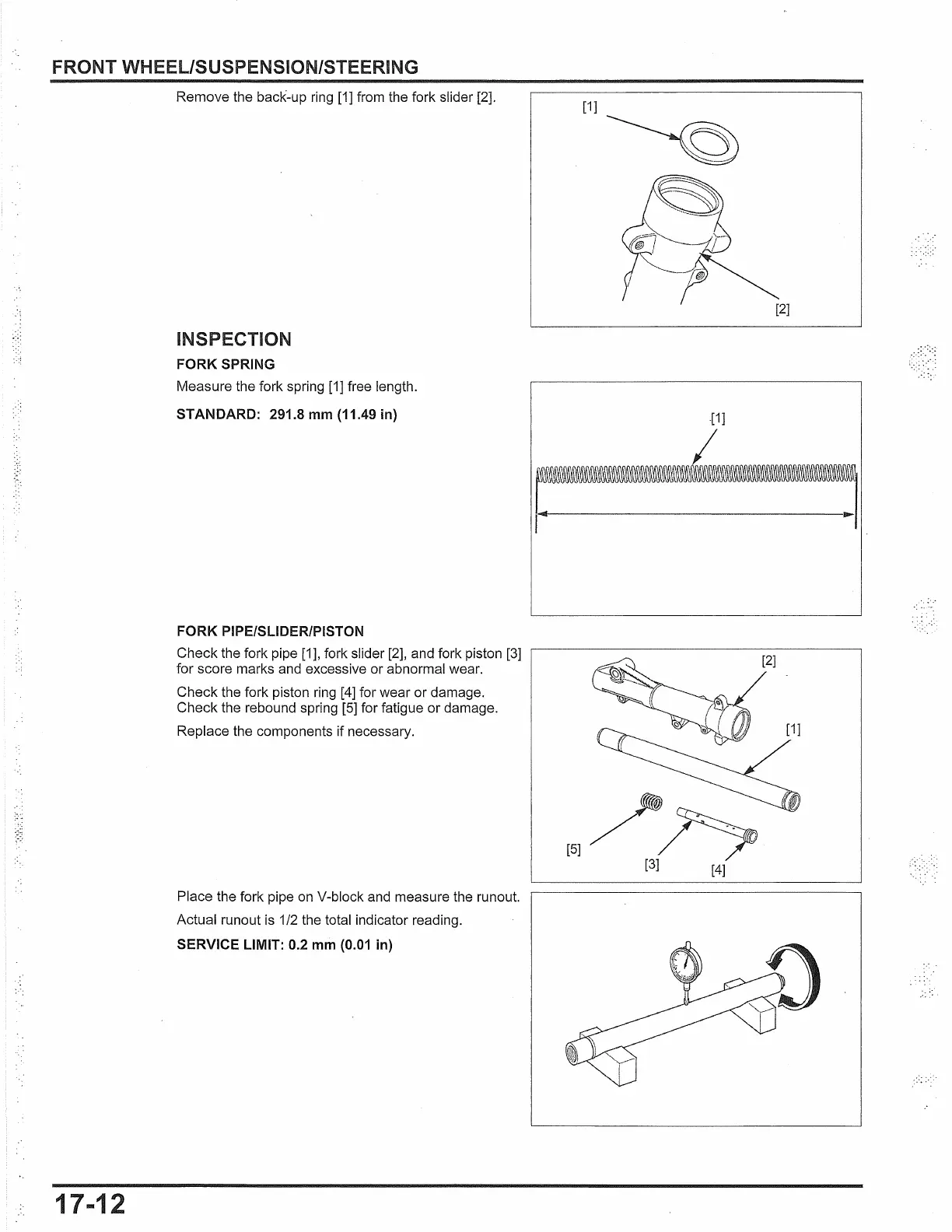

FRONT WHEEL/SUSPENSION/STEERING
17-12
Remove the back-up ring [1] from the fork slider [2].
INSPECTION
FORK SPRING
Measure the fork spring [1] free length.
STANDARD: 291.8 mm (11.49 in}
FORK PIPE/SLIDER/PISTON
Check the fork pipe [1], fork slider [2], and fork piston [3]
for score marks and excessive or abnormal wear.
Check the fork piston ring [4] for wear or damage.
Check the rebound spring
[5] for fatigue or damage.
Replace the components if necessary.
Place the fork pipe
on V-block and measure the runout.
Actual runout
is 1/2 the total indicator reading.
SERVICE LIMIT: 0.2 mm (0.01 in}
[1]
.[1]
I
~
I ~.
[5]/77
[3] [4]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
