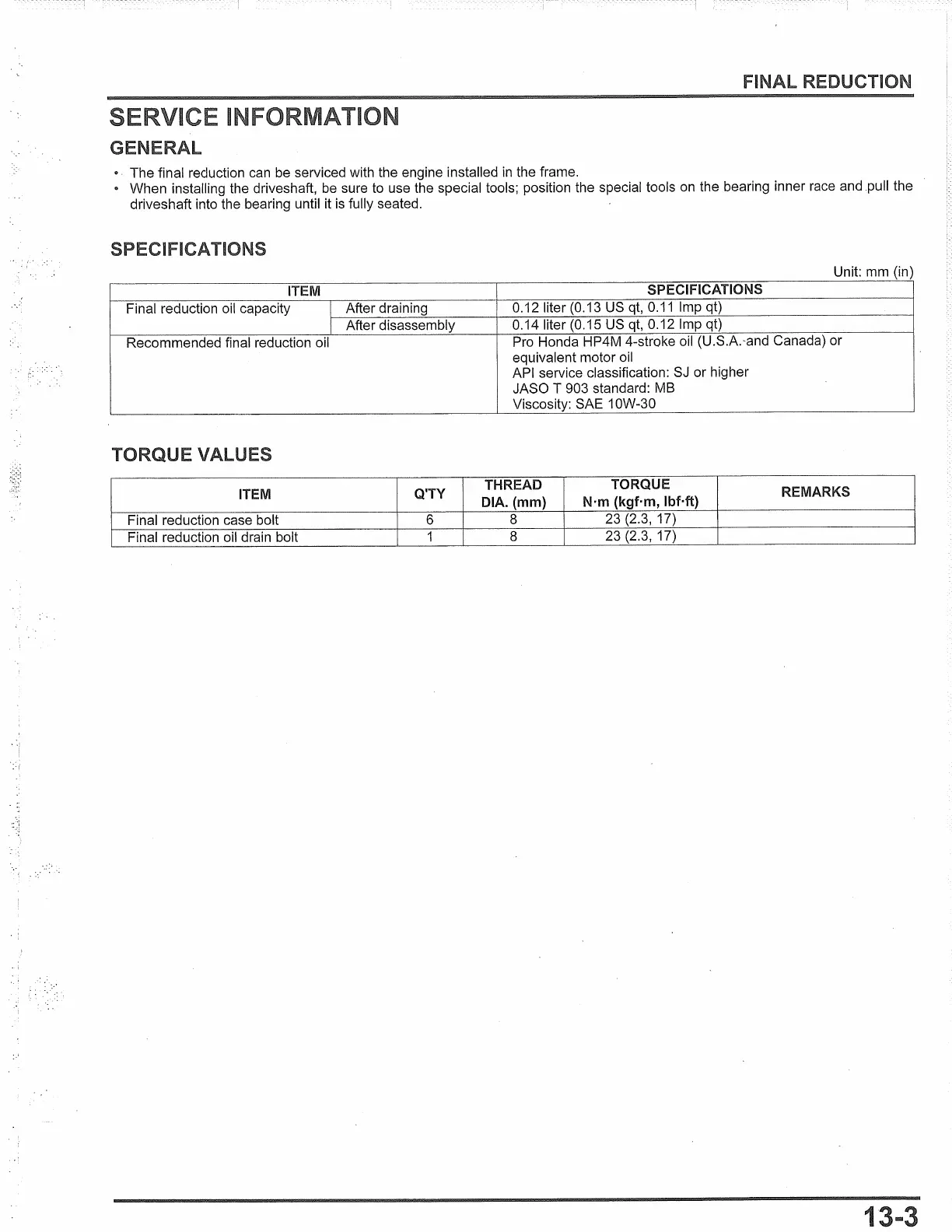

REDUCTION
•
The
final reduction can be serviced with the engine installed
in
the frame.
•
When
installing the driveshaft, be sure to use the special tools; position the special tools on the bearing inner race and pull the
driveshaft into the bearing until it is fully seated.
SPECIFICATIONS
Unit: mm (in)
ITEM
SPECIFICATIONS
Final reduction oil capacity
I
After draining 0.12 liter (0.13 US qt, 0.11 Imp qt)
I
After disassembly 0.14 liter (0.15 US qt, 0.12 Imp qt)
Recommended final reduction oil Pro Honda HP4M 4-stroke oil (U.S.A.-and Canada) or
equivalent motor oil
API service classification: SJ
or
higher
JASO T 903 standard: MB
Viscosity: SAE 1 OW-30
TORQUE VALUES
ITEM
Q'TY
THREAD TORQUE
REMARKS
DIA. (mm)
N·m (kgf·m,
lbMt)
Final reduction case bolt
6 8
23 (2.3, 17)
Final reduction oil drain bolt
1
8 23 (2.3, 17)
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
