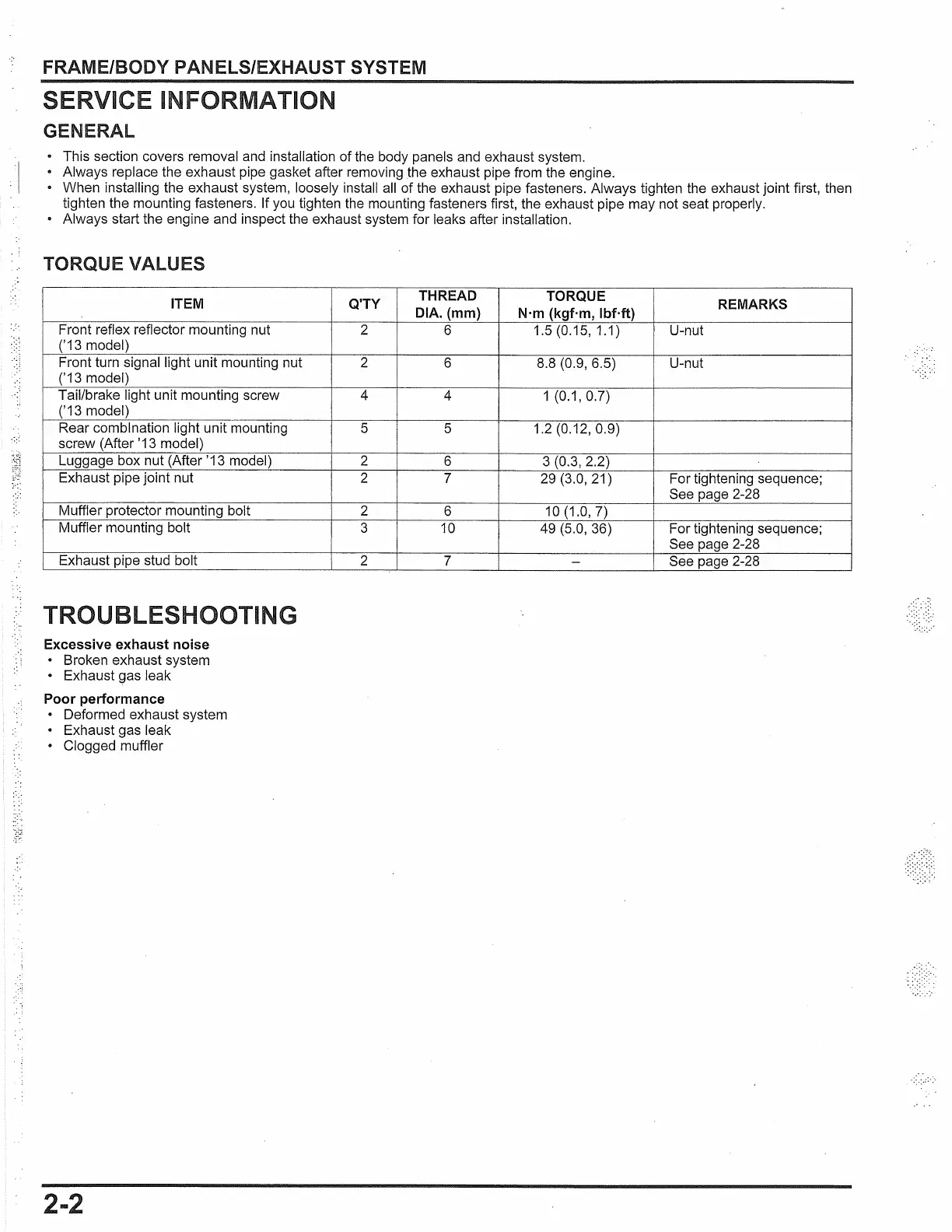

FRAME/BODY PANELS/EXHAUST SYSTEM
s
GENERAL
INFORMATION
• This section covers removal and installation
of
the body panels and exhaust system.
• Always replace the exhaust pipe gasket after removing the exhaust pipe from the engine.
• When installing the exhaust system, loosely install all of the exhaust pipe fasteners. Always tighten the exhaust joint first, then
tighten the mounting fasteners. If you tighten the mounting fasteners first, the exhaust pipe may not seat properly.
• Always start the engine and inspect the exhaust system for leaks after installation.
TORQUE VALUES
ITEM
Q'TY
THREAD
TORQUE
REMARKS
DIA. (mm) N·m (kgf·m,
lbMt)
Front reflex reflector mounting nut 2 6 1.5 (0.15, 1.1) U-nut
('13 model)
Front turn signal light unit mounting nut 2 6 8.8 (0.9, 6.5) U-nut
('13 model)
Tail/brake light unit mounting screw 4 4
1(0.1,0.7)
('13 model)
Rear combination light unit mounting 5 5 1.2 (0.12, 0.9)
screw (After '13 model)
Luggage box nut (After '13 model) 2 6 3 (0.3, 2.2)
Exhaust pipe joint nut 2 7
29 (3.0, 21)
For tightening sequence;
See page 2-28
Muffler protector mounting bolt 2 6
10(1.0,7)
Muffler mounting bolt 3
10
49 (5.0, 36)
For tightening sequence;
See page 2-28
Exhaust pipe stud bolt
2
7
-
See page 2-28
TROUBLESHOOTING
Excessive exhaust noise
• Broken exhaust system
• Exhaust gas leak
Poor performance
• Deformed exhaust system
• Exhaust gas leak
• Clogged muffler
2-2
