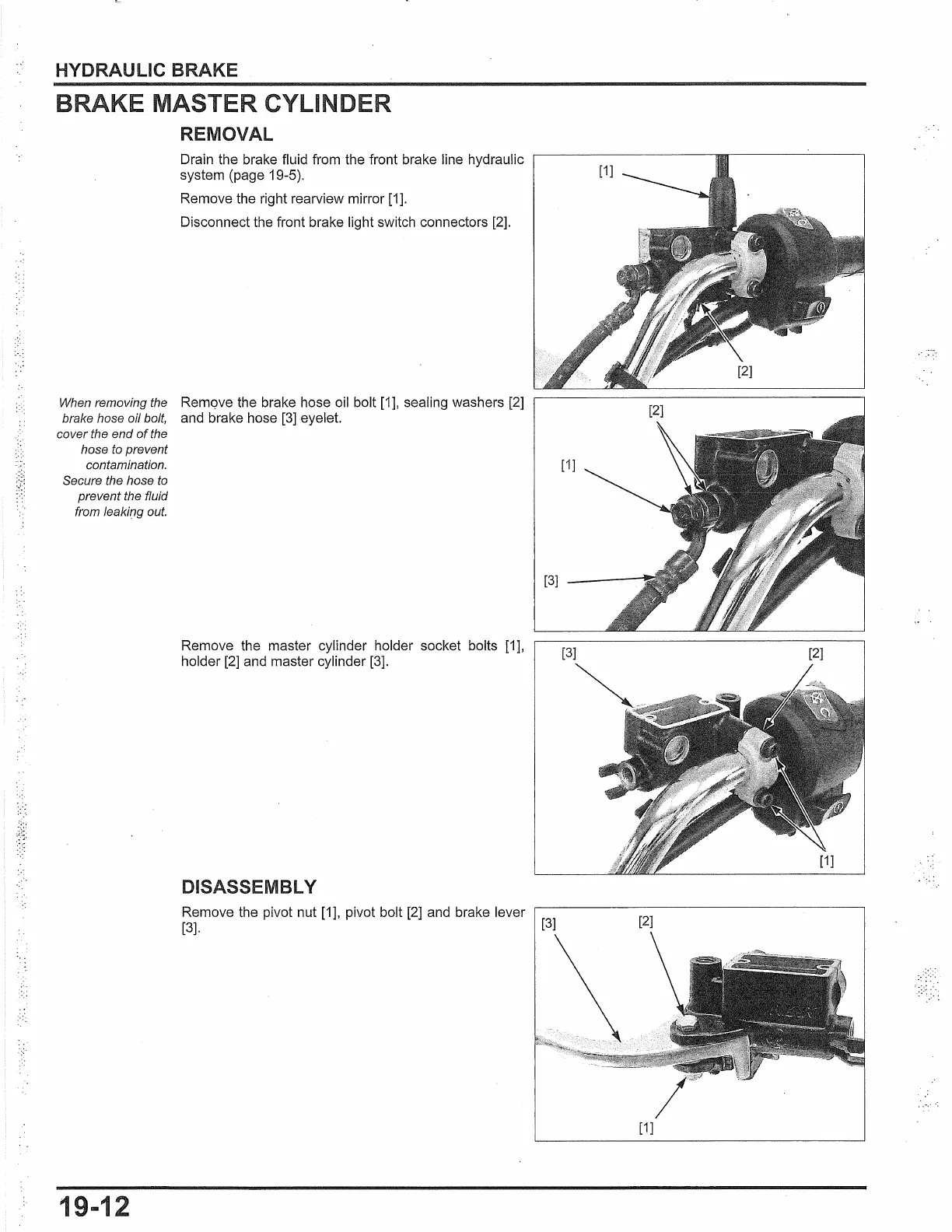

HYDRAULIC BRAKE
B
MASTER CYLIND R
REMOVAL
Drain the brake fluid from the front brake line hydraulic
system (page 19-5).
Remove the right rearview mirror [1].
Disconnect the front brake light switch connectors
[2].
When removing the Remqve the brake hose oil bolt [1 ], sealing washers [2]
brake hose oil bolt, and brake hose [3] eyelet.
cover the end of the
hose to prevent
contamination.
Secure the hose
to
prevent the fluid
from leaking out.
19-12
Remove the master cylinder holder socket bolts [1],
holder
[2] and master cylinder [3].
DISASSEMBLY
Remove the pivot nut [1], pivot bolt [2] and brake lever
[3]. [3]
[3]
[2]
~ .. •·
[2]
[1]

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
