Honda PCX150 2016 User Manual

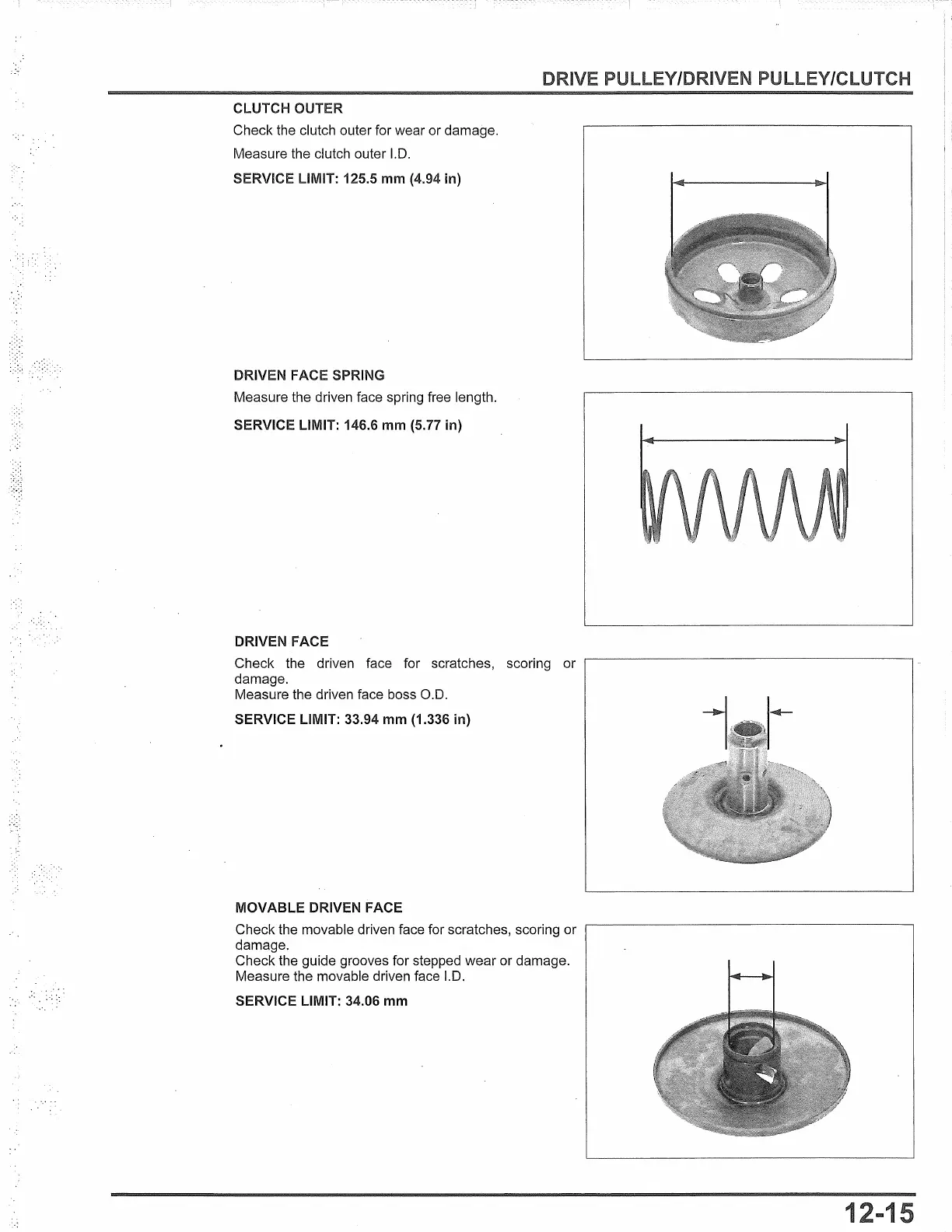

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
CLUTCH OUTER
Check the clutch outer for wear or damage.
Measure the clutch outer I.D.
SERVICE LIMIT: 125.5 mm (4.94 in)
DRIVEN FACE SPRING
Measure the driven face spring free length.
SERVICE LIMIT: 146.6
mm (5.77 in)
DRIVEN FACE
Check the driven face for scratches, scoring or
damage.
Measure the driven face boss O.D.
SERVICE LIMIT: 33.94 mm (1.336 in)
MOVABLE DRIVEN FACE
Check the movable driven face for scratches, scoring or
damage.
Check the guide grooves for stepped wear or damage.
Measure the movable driven face I.D.
SERVICE LIMIT: 34.06
mm
1

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
