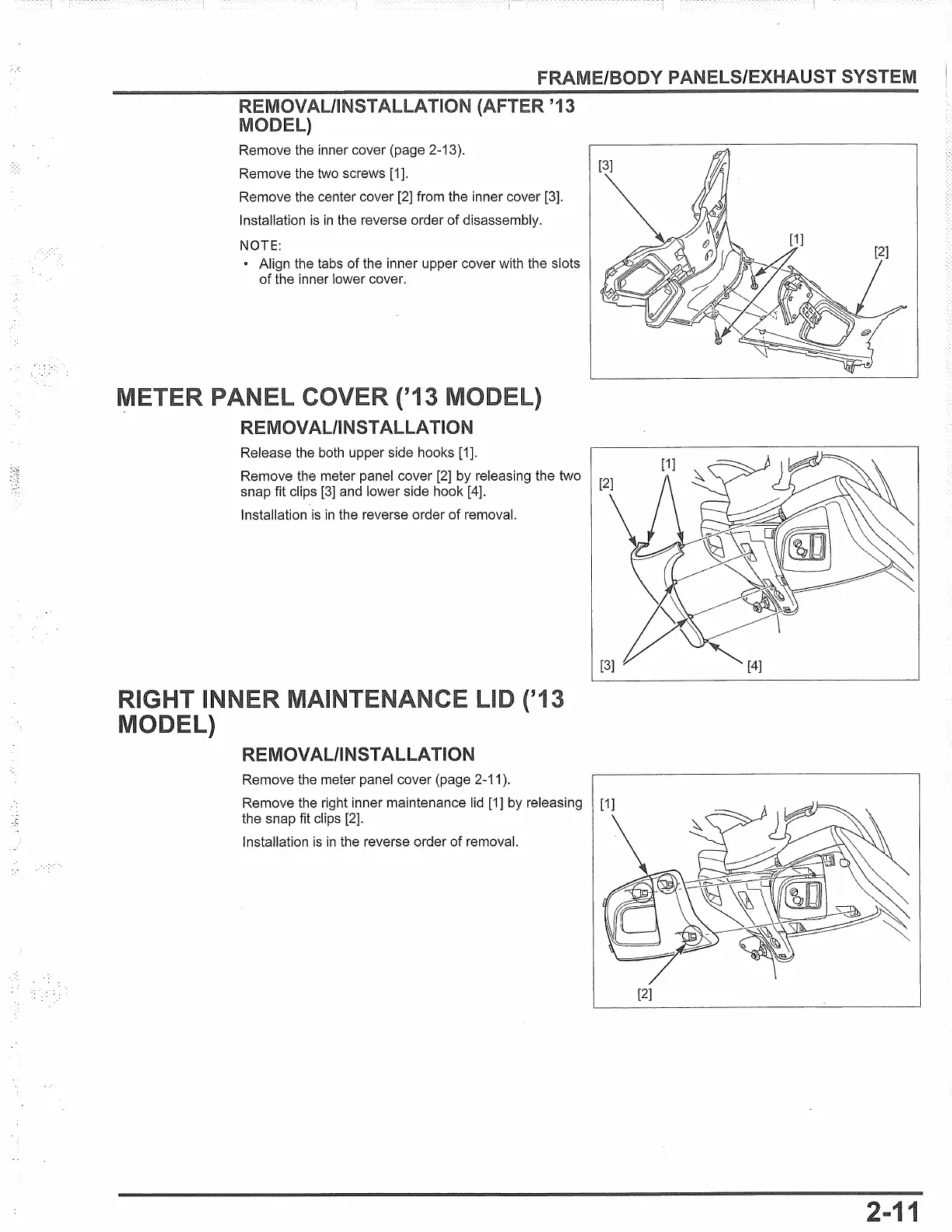

FRAME/BODY PANELS/EXHAUST
REMOVAL/INSTALLATION
Remove the inner cover (page 2-13).
Remove the two screws [1].
'13
Remove the center cover [2] from the inner cover [3].
Installation
is
in
the reverse order
of
disassembly.
NOTE:
• Align the tabs of the inner upper cover with the slots
of
the inner lower cover.
('13
REMOVAL/INSTALLATION
Release the both upper side hooks [1].
Remove the meter panel cover
[2]
by releasing the two
snap fit clips
[3]
and lower side hook [4].
Installation
is
in
the reverse order
of
removal.
('13
REMOVAL/INST
ALLA
Tl
ON
Remove the meter panel cover (page
2-11
).
Remove the right inner maintenance lid [1] by releasing
[1]
the snap
fit clips [2].
Installation
is
in
the reverse order of removal.
[2]
1
