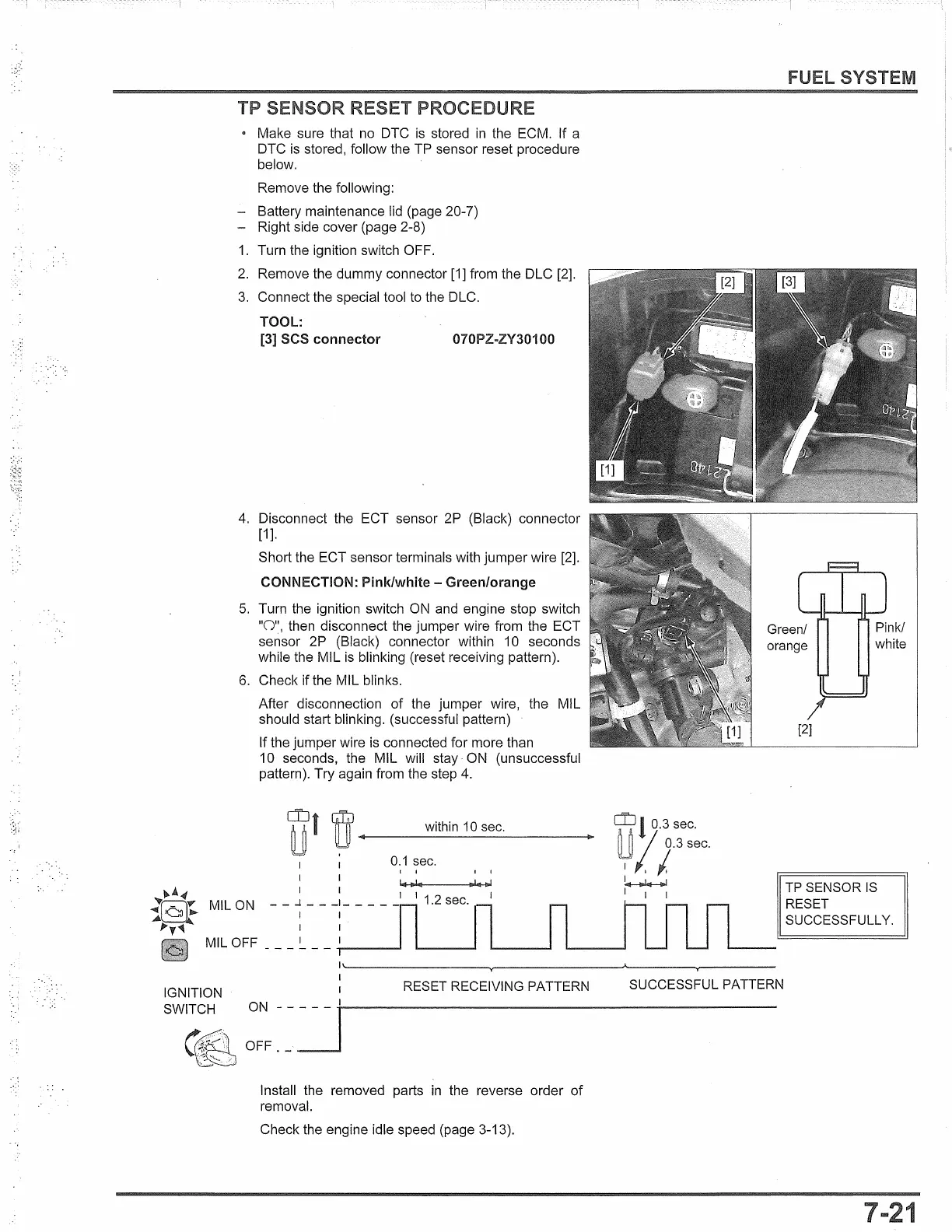

• Make sure that no
OTC
is
stored
in
the ECM. If a
OTC
is
stored, follow the TP sensor reset procedure
below.
Remove the following:
- Battery maintenance lid (page 20-7)
- Right side cover (page 2-8)
1.
Turn the ignition switch OFF.
2.
Remove the dummy connector [1] from the DLC [2].
3.
Connect the special tool to the DLC.
TOOL:
[3]
SCS
connector
070PZ-ZY30100
4.
Disconnect the ECT sensor 2P (Black) connector
[1
].
Short the ECT sensor terminals with jumper wire [2].
CONNECTION: Pink/white - Green/orange
5.
Turn the ignition switch
ON
and engine stop switch
"O", then disconnect the jumper wire from the ECT
sensor 2P (Black) connector within
10
seconds
while the MIL
is
blinking (reset receiving pattern).
6. Check if the MIL blinks.
After disconnection
of
the jumper wire, the MIL
should start blinking. (successful pattern)
If the jumper wire
is
connected for more than
10 seconds, the MIL will stay·
ON
(unsuccessful
pattern). Try again from the step
4.
ijf
ij
____
w_i_th_in_1_0_s_e_c.
____
..,..
0.1
sec.
...
4'
.l[§Jt MIL
ON
A,,_,.,..,
__
...1
___
1
_____
1 1
1.2
sec .
I
MIL
OFF
______
-.----'
IGNITION
SWITCH
RESET RECEIVING PATTERN
ON
- -
Install the removed parts
in
the reverse order
of
removal.
Check the engine idle speed (page 3-13).
cIJ 1
0.3
sec.
~ltsec
~
I
SUCCESSFUL PATTERN
SYSTEM
TP
SENSOR
IS
RESET
SUCCESSFULLY.
1
