Honda PCX150 2016 User Manual

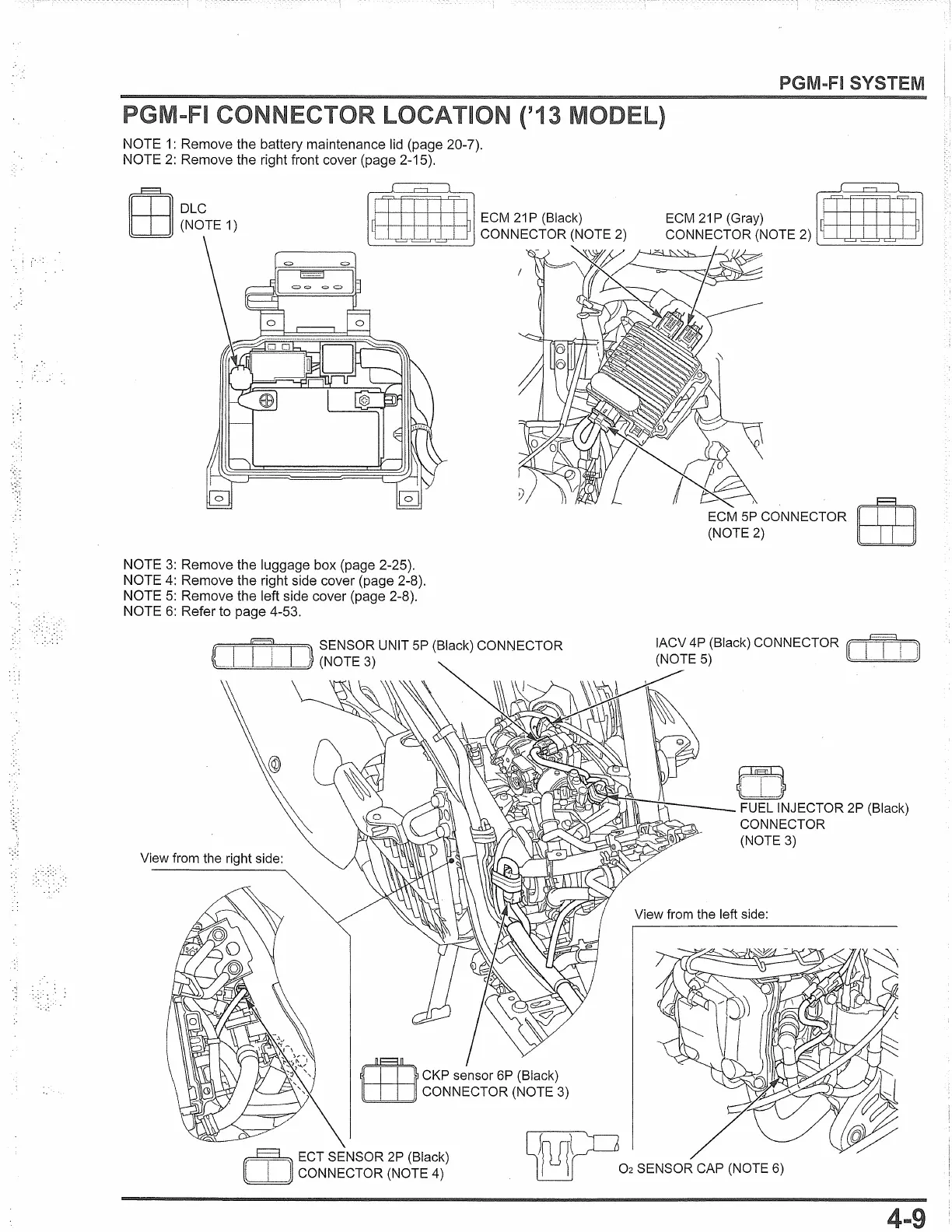

NOTE 1: Remove the battery maintenance lid (page 20-7).
NOTE 2: Remove the right front cover (page 2-15).
m DLC
l[J]J (NOTE 1)
Jl[QT1 ECM 21P (Black)
L -=-=cJ-= __ i_J CONNECTOR (NOTE 2)
NOTE 3: Remove the luggage box (page 2-25).
NOTE 4: Remove the right side cover (page 2-8).
NOTE 5: Remove the left side cover (page 2-8).
NOTE 6: Refer to page 4-53.
{l [ ~ j ~ SENSOR UNIT 5P (Black) CONNECTOR
___ _ _i __ _J (NOTE 3)
View from the right side:
~ CKP sensor 6P (Black)
tr:t] CONNECTOR (NOTE 3)
ECM 5P CONNECTOR
(NOTE 2)
IACV 4P (Black) CONNECTOR
rr==;~~=
(NOTE 5)
~
UJ
FUEL INJECTOR 2P (Black)
CONNECTOR
(NOTE 3)
View from the left side:
F¥9 ECT SENSOR 2P (Black)
lLLJJ CONNECTOR (NOTE 4)
~ 02 SENSOR CAP (NOTE 6)

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
