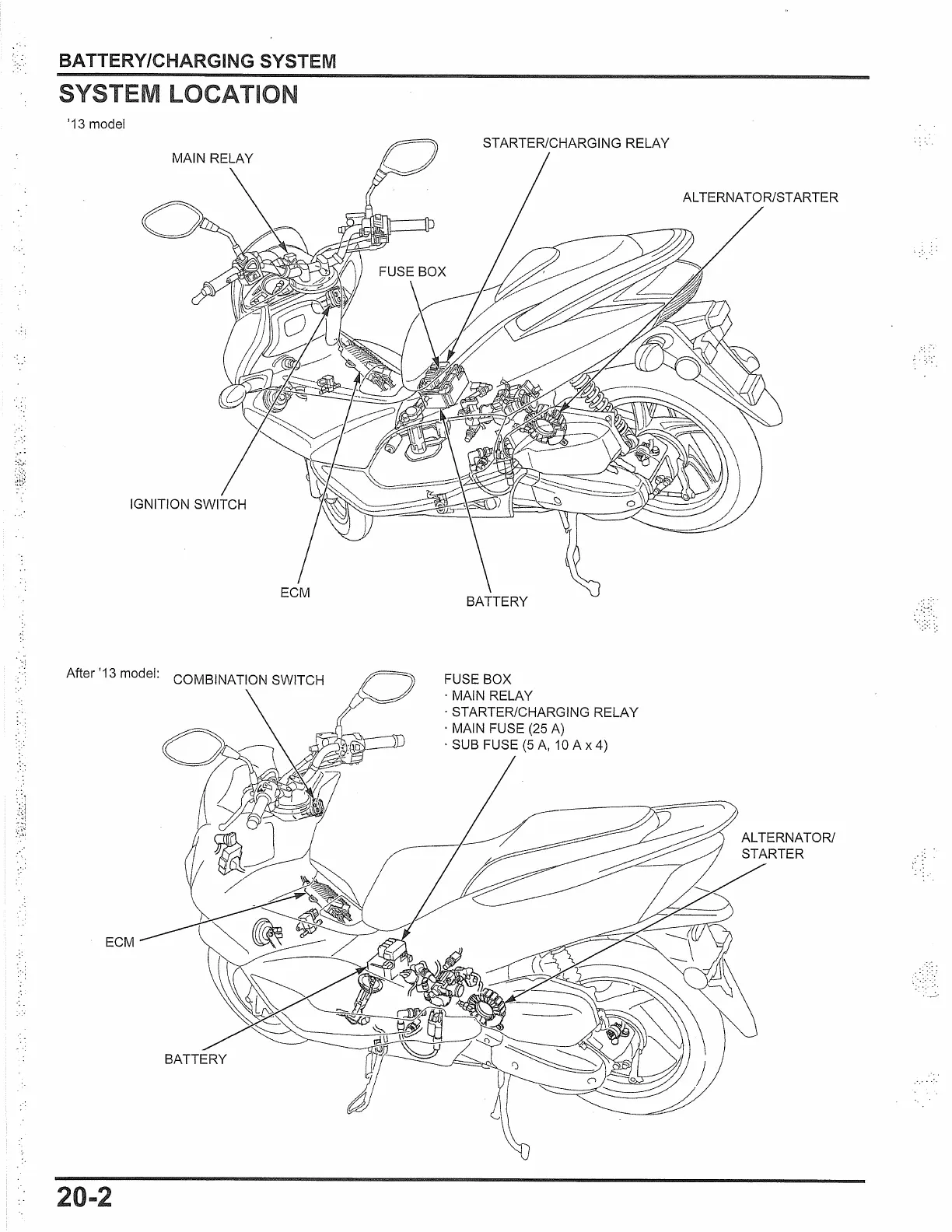

BATTERY/CHARGING SYSTEM
SYSTE
'13 model
STARTER/CHARGING RELAY
FUSE BOX
· MAIN RELAY
· STARTER/CHARGING RELAY
· MAIN FUSE (25 A)
· SUB FUSE
(5
A,
10
Ax
4)
ECM
20
