Honda PCX150 2016 User Manual

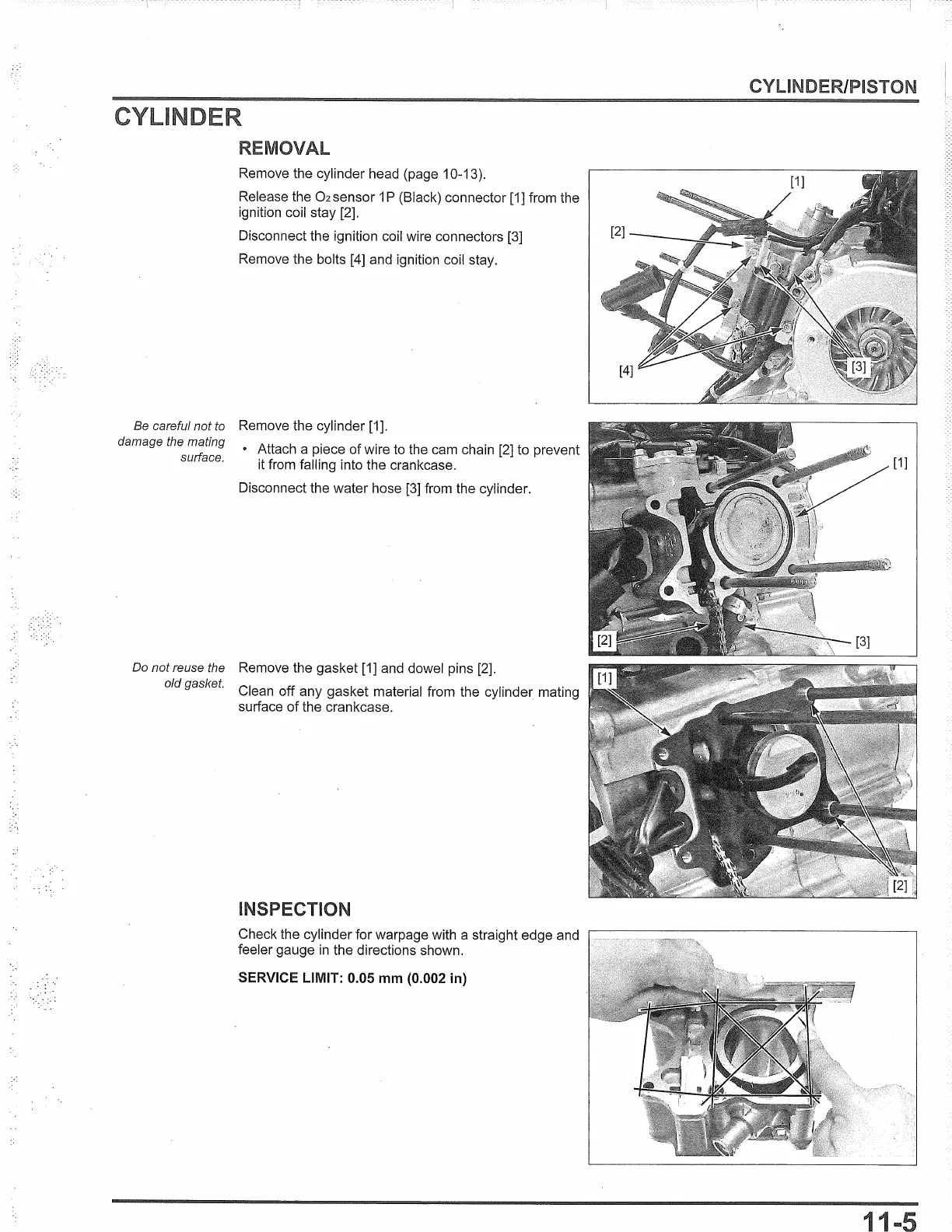

Remove the cylinder head (page 10-13).
Release the
Oz
sensor 1 P (Black) connector [1] from the
ignition coil stay [2].
Disconnect the ignition coil wire connectors [3]
Remove the bolts [4] and ignition coil stay.
Be careful
notto
Remove the cylinder [1].
damage the mating
surface.
• Attach a piece of wire to the cam chain
[2]
to prevent
it
from falling into the crankcase.
Disconnect the water hose [3] from the cylinder.
Do not reuse the
Remove the gasket [1] and dowel pins [2].
old gasket.
Clean off any gasket material from the cylinder mating
surface
of
the crankcase.
INSPECTION
Check the cylinder for warpage with a straight edge and
feeler gauge
in
the directions shown.
SERVICE LIMIT: 0.05 mm (0.002 in)
CYLINDER/PISTON
11

Honda PCX150 2016 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Seat Height	29.9 inches
Fuel Capacity	2.1 gallons
Ignition	Full Transistorized
Front Suspension	31mm telescopic fork
Rear Suspension	Twin shock
Front Brake	Hydraulic disc
Rear Brake	Drum
Engine Type	Liquid-cooled, 4-stroke, SOHC
