6-25
Wireless Interface Configuration
Modifying Antenna Settings
Web: Setting the Antenna Type and Antenna Mode
The Radio – Advanced Settings pop-up window, shown in Figure 6-9, enables
you to configure the following settings for adjusting the transmit power limits:
■ Antenna Type: The type of radio antenna utilized by this access point.
(The default is Internal.)
■ Antenna Mode: The mode of radio antenna utilized by this access point.
(The default is Diversity.)
■ [Update]: Updates the antenna type and antenna mode parameters.
Note Radio 2 must be configured to an external antenna if Radio 2 is configured to
either the IEEE 802.11b or 802.11g mode, The Radio 2 internal antenna must
be configured to the IEEE 802.11a mode. See
“Radio Configuration Summary Table”
on page 6-6
.

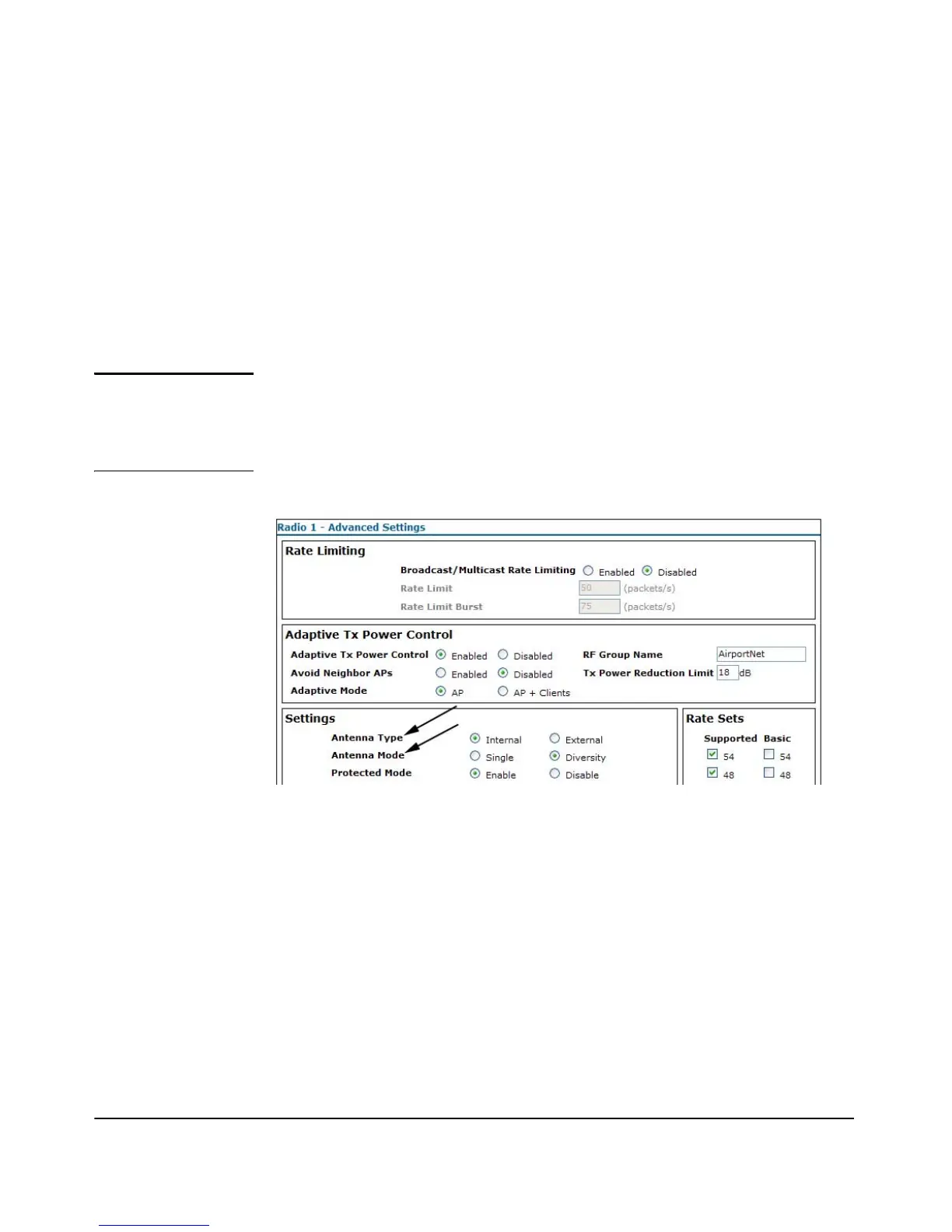

Figure 6-9. Setting Antenna Parameters
To Modify the Antenna Parameters:
1. Select Network Setup > Radio tab >
[Edit] > Advanced Settings.
2. To set the radio to use an internal or external antenna, select Internal or
External from the Antenna Type drop-down.
3. To set the radio to use a specific antenna mode, select Diversity or Single
from the Antenna Mode drop-down.
4. Select
[Update] to set the antenna parameters.
