6-35

Wireless Interface Configuration

Managing Multiple WLAN (BSS/SSID) Interfaces

The following figure shows the configuration scenario to follow when

managing VLANs and SSID interfaces.

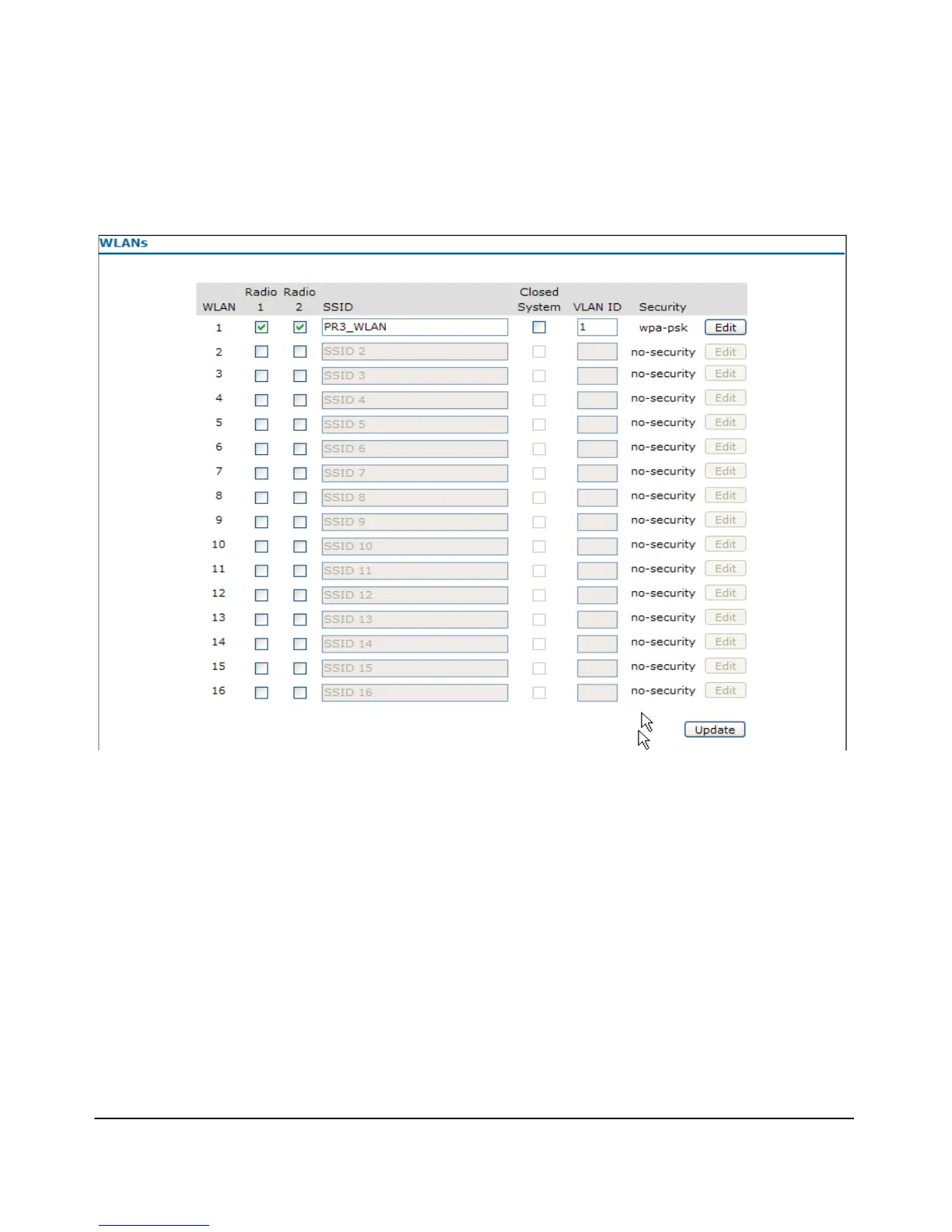

Figure 6-11. Configuring VLANs and SSID Interfaces

Web: Configuring SSID Interfaces

The WLANs tab, shown in Figure 6-11, enables you to configure SSIDs, VLANS,

and closed system settings. You can modify these parameters:

■ WLAN: Displays the WLAN index number, 1 through 16.

■ Radio 1/ Radio 2: Configures the access point to enable WLAN access

using either or both radios (when the appropriate box is checked).

■ SSID: Lists the access point’s SSID interfaces with their basic settings.

The

Enabled option auto-fills this field. The SSID is an alphanumeric string

of between 1 and 32 characters.
