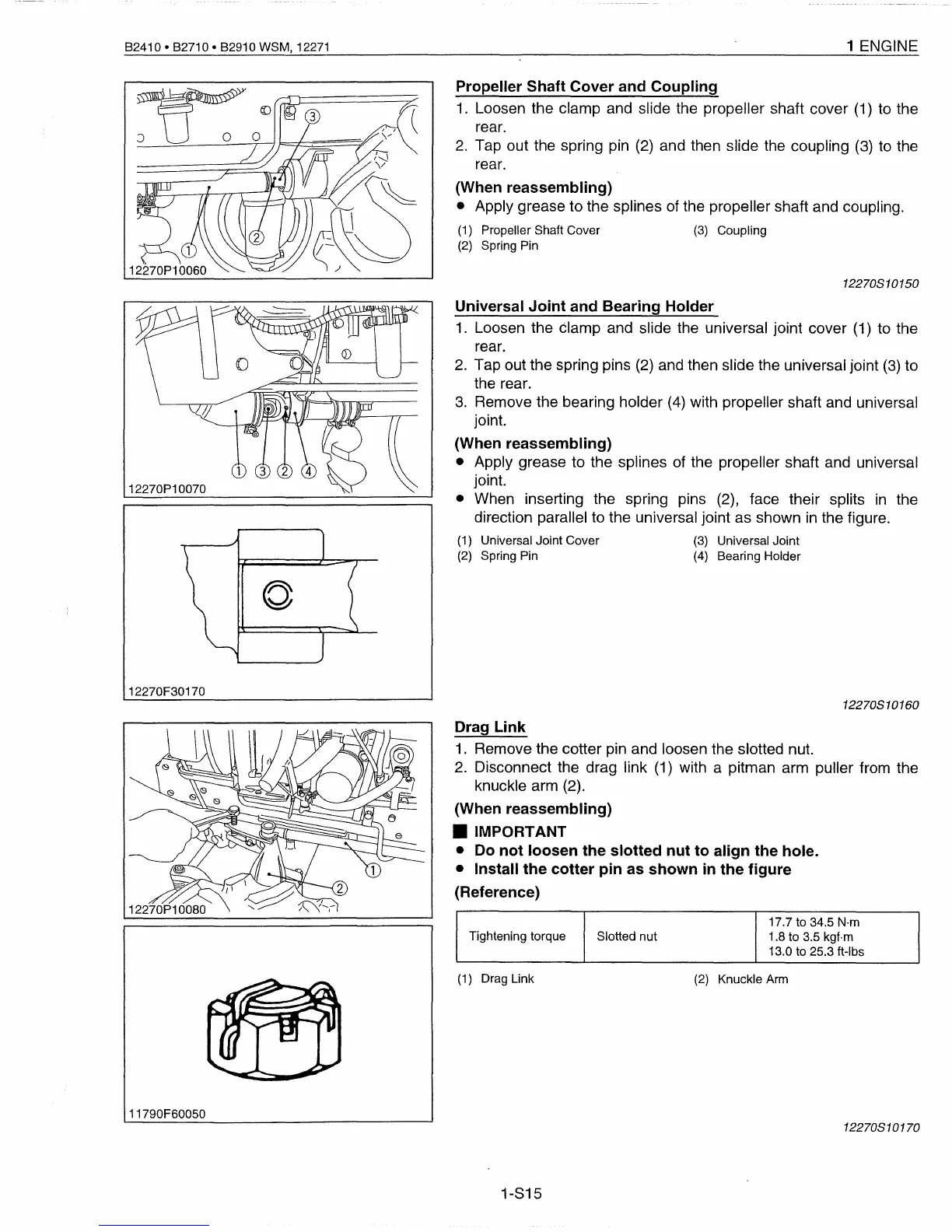

B2410 • B2710 • B2910 WSM,
12271
12270P10070
12270F30170
1 ENGINE
Propeller Shaft Cover and Coupling
1.
Loosen the clamp and slide the propeller shaft cover
(1)
to the
rear.
2.
Tap out the spring pin (2) and then slide the coupling (3) to the
rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft and coupling.
(1)
Propeller Shaft Cover
(3)
Coupling
(2)
Spring Pin
12270810150
Universal Joint and Bearing Holder
1.
Loosen the
Clamp
and slide the universal joint cover
(1)
to the
rear.
2.
Tap out the spring pins (2) and then slide the universal joint
(3)
to
the rear.
3.
Remove the bearing holder
(4)
with propeller shaft and universal
joint.
(When reassembling)
• Apply grease to the splines of the propeller shaft and universal
joint.
• When inserting the spring pins (2), face their splits
in
the
direction parallel to the universal joint as shown
in
the figure.
(1)
Universal Joint Cover
(3)
Universal Joint
(2)
Spring Pin
(4)
Bearing Holder
12270810160
Drag Link
1.
Remove the cotter pin and loosen the slotted nut.
2. Disconnect the drag link
(1)
with a pitman arm puller from the
knuckle arm (2).
(When reassembling)
• IMPORTANT
• Do not loosen the slotted nut to align the hole.
• Install the cotter pin as shown
in
the figure
(Reference)
17.7 to 34.5 N·m
Tightening torque
Slotted nut
1.8 to 3.5 kgf·m
13.0 to 25.3 ft-Ibs
11790F60050
(1)
Drag Link
1-815
(2) Knuckle
Arm
12270810170
To Next Page
