B2410 • B2710 •
B291
0 WSM,
12271
9 ELECTRICAL SYSTEM

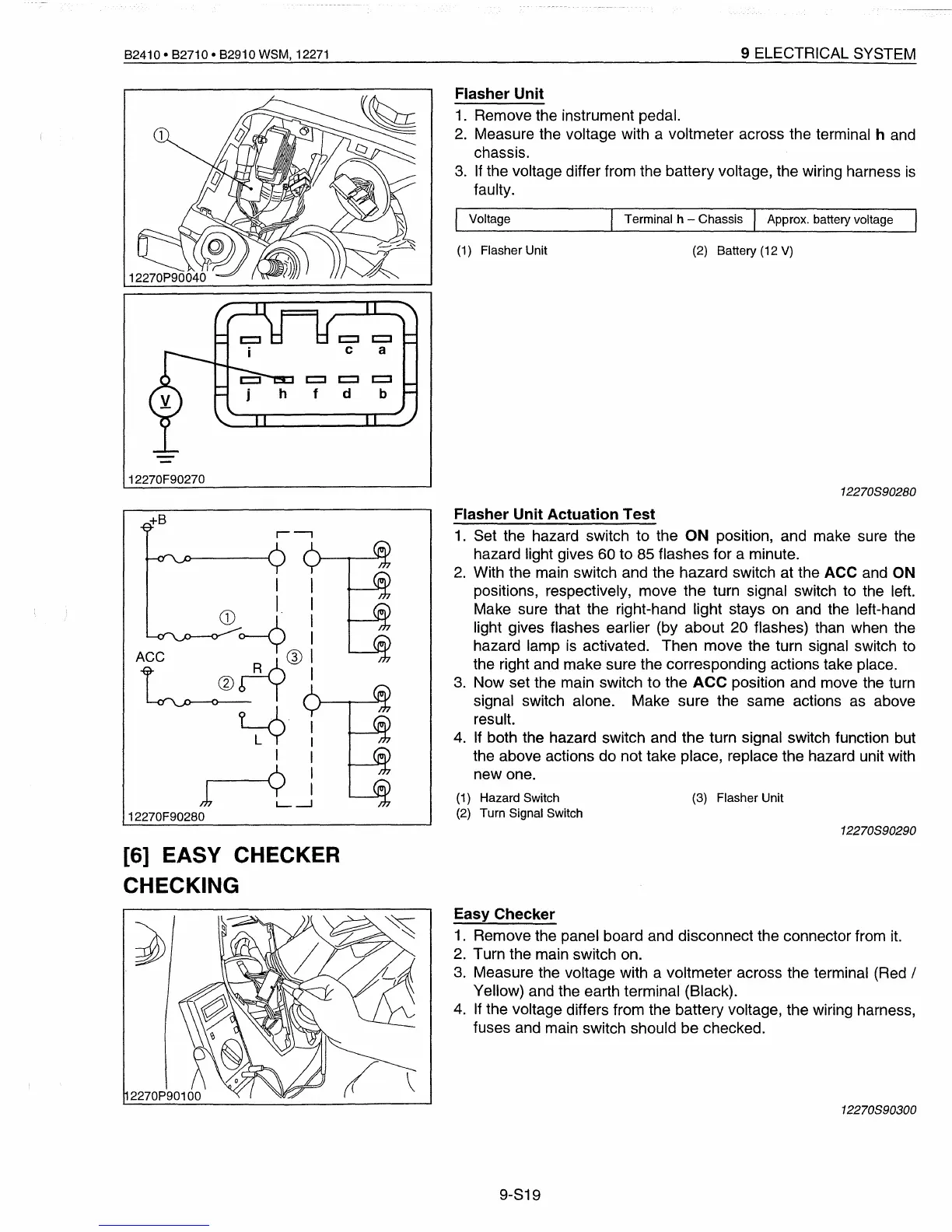

Flasher Unit
1.
Remove the instrument pedal.
2.
Measure the voltage with a voltmeter across the terminal
hand
chassis.
3.
If the voltage differ from the battery voltage, the wiring harness
is
faulty.
Voltage
(1)
Flasher Unit
Terminal h - Chassis Approx. battery voltage
(2) Battery (12
V)
12270F90270
12270890280
r--,
12270F90280
(3) Flasher Unit
(1)
Hazard Switch
(2)
Turn Signal Switch
Flasher Unit Actuation Test
1.
Set the hazard switch to the ON position, and make sure the
hazard light gives 60
to
85 flashes for a minute.
2. With the main switch and the hazard switch
at
the ACC and
ON
positions, respectively, move
the
turn signal switch to the left.
Make sure that the right-hand light stays on and the left-hand
light gives flashes earlier (by
about
20 flashes) than when the
hazard lamp is activated. Then
move
the turn signal switch to
the right and make sure the corresponding actions take place.
3. Now set the main switch
to
the ACC position and move the turn
signal switch alone. Make
sure
the same actions as above
result.
4. If both the hazard switch and
the
turn signal switch function but
the above actions do not take place, replace the hazard unit with
new
one.
I
I I
CD
o.--¢
i
ACC
~®I
L-:£
R
'(
}--.,.--""'"f
~
I
1
¢ I
L-
---I
+8
12270890290
[6] EASY CHECKER
CHECKING
Easy Checker
1. Remove the panel board and disconnect the connector from it.
2. Turn the main switch on.
3. Measure the voltage with a voltmeter across the terminal (Red /
Yellow) and the earth terminal (Black).
4. If the voltage differs from the battery voltage, the wiring harness,
fuses and main switch should
be
checked.
12270890300
9-S19
