6 FRONT AXLE
B2410· B2710· B2910 WSM, 12271

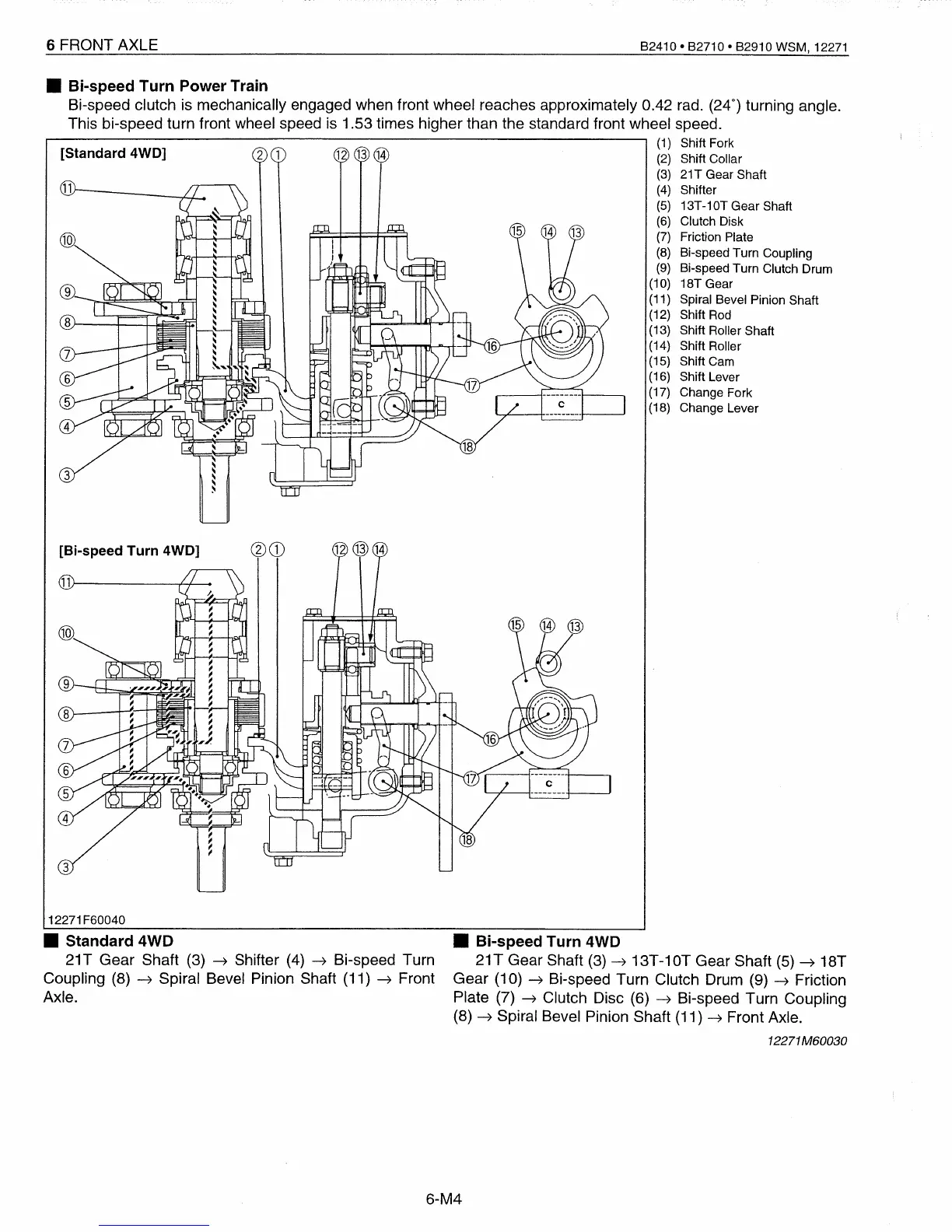

• Bi-speed Turn Power Train
Bi-speed clutch is mechanically engaged when front wheel reaches approximately 0.42 rad. (24°) turning angle.
This bi-speed turn front wheel speed
is 1.53 times higher than the standard front wheel speed.
(1) Shift Fork
[Standard 4WD] (2) Shift Collar
(3) 21 T Gear Shaft
11 (4) Shifter
(5) 13T-10T Gear Shaft
(6) Clutch Disk
(7) Friction Plate
(8) Bi-speed Turn Coupling
(9) Bi-speed Turn Clutch Drum
(10) 18T Gear
(11) Spiral Bevel Pinion Shaft
(12) Shift Rod
(13) Shift Roller Shaft
(14) Shift Roller
(15) Shift Cam
(16) Shift Lever
(17) Change Fork
(18) Change Lever
[Si-speed Turn 4WD] ® CD
11 ~-----.£-I.:""-
12271F60040
• Standard 4WD
21T Gear Shaft (3)
--7 Shifter (4) --7 Bi-speed Turn
Coupling (8)
--7 Spiral Bevel Pinion Shaft (11) --7 Front
Axle.
• Bi-speed Turn 4WD
21 T Gear Shaft (3) --7 13T -1 OT Gear Shaft (5) --7 18T
Gear (10)
--7 Bi-speed Turn Clutch Drum (9) --7 Friction
Plate (7)
--7 Clutch Disc (6) --7 Bi-speed Turn Coupling
(8)
--7 Spiral Bevel Pinion Shaft (11) --7 Front Axle.
12271 M60030
6-M4
