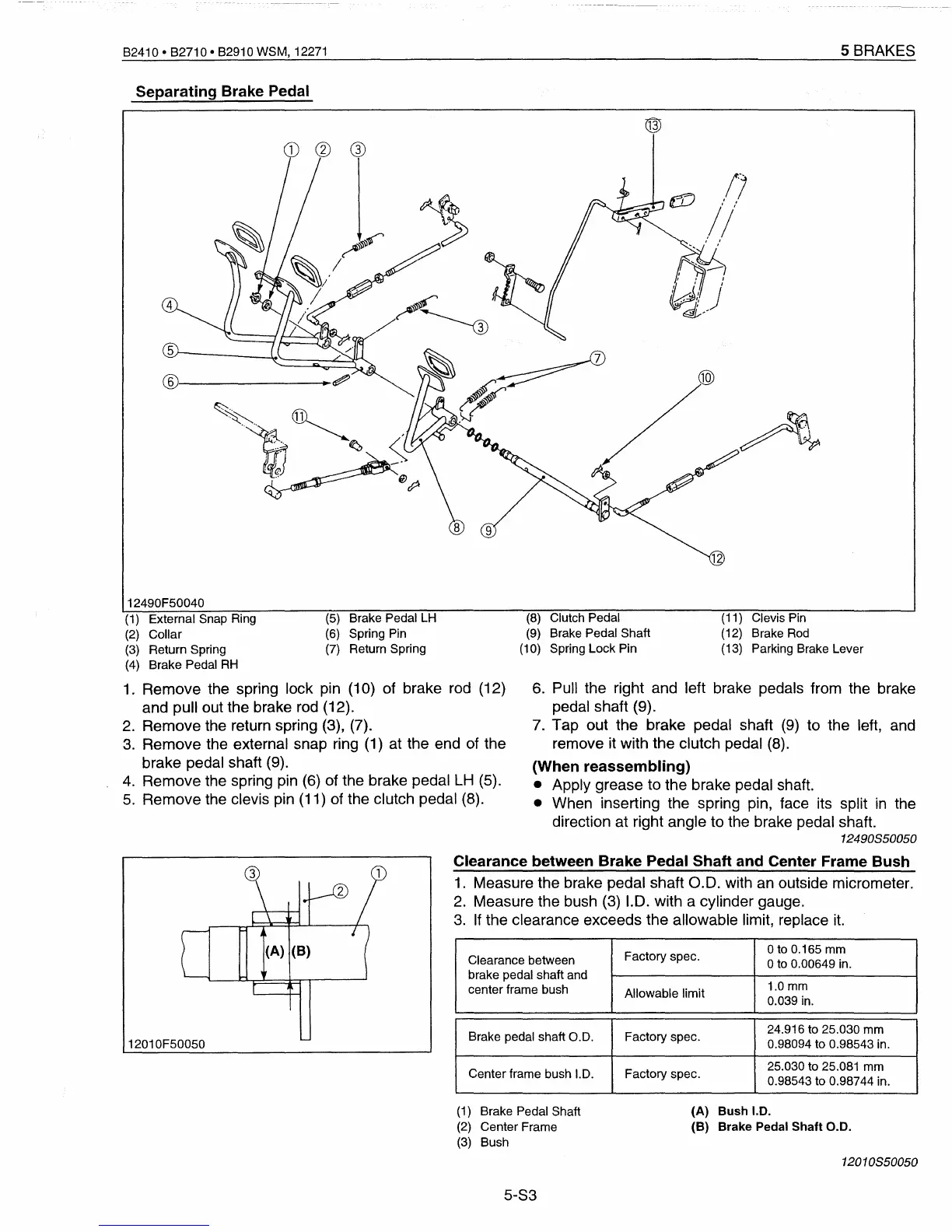

B2410 • B2710 • B2910 WSM,
12271
5 BRAKES
Separating
Brake
Pedal
®I
~
12490F50040
(11)
Clevis
Pin
(12)
Brake
Rod
(13)
Parking Brake Lever
(8)
Clutch Pedal
(9)
Brake Pedal Shaft
(10)
Spring Lock Pin
Factory spec.
o
to
0.165
mm
Clearance between
o
to
0.00649 in.
brake pedal shaft and
1.0mm
center frame bush
Allowable limit
0.039
in.
Brake pedal shaft O.D. Factory spec.
24.916 to 25.030
mm
0.98094 to 0.98543 in.
Center frame bush I.D. Factory spec.
25.030 to 25.081
mm
0.98543
to
0.98744 in.
6.
Pull the right and left brake pedals from the brake
pedal shaft (9).
7.
Tap out the brake pedal shaft
(9)
to the left, and
remove it with the clutch pedal
(8).
(When
reassembling)
• Apply grease to the brake pedal shaft.
• When inserting the spring pin, face its split
in
the
direction at right angle to the brake pedal shaft.
12490850050
Clearance
between
Brake
Pedal
Shaft
and
Center
Frame
Bush
1.
Measure the brake pedal shaft
0.0.
with an outside micrometer.
2.
Measure the bush
(3)
1.0. with a cylinder gauge.
3.
If
the clearance exceeds the allowable limit, replace
it.
(5)
Brake Pedal
LH
(6)
Spring
Pin
(7)
Return Spring
12010F50050
(A)
(8)
(1)
External
Snap
Ring
(2)
Collar
(3)
Return Spring
(4)
Brake Pedal
RH
1.
Remove the spring lock pin (10) of brake rod (12)
and pull out the brake rod (12).
2.
Remove the return spring (3), (7).
3.
Remove the external snap ring (1) at the end of the
brake pedal shaft (9).
4.
Remove the spring pin
(6)
of the brake pedal
LH
(5).
5.
Remove the clevis pin (11) of the clutch pedal (8).
(1)
Brake Pedal Shaft
(2)
Center Frame
(3)
Bush
(A) Bush 1.0.
(B) Brake Pedal Shaft
0.0.
12010850050
5-S3
To Next Page
