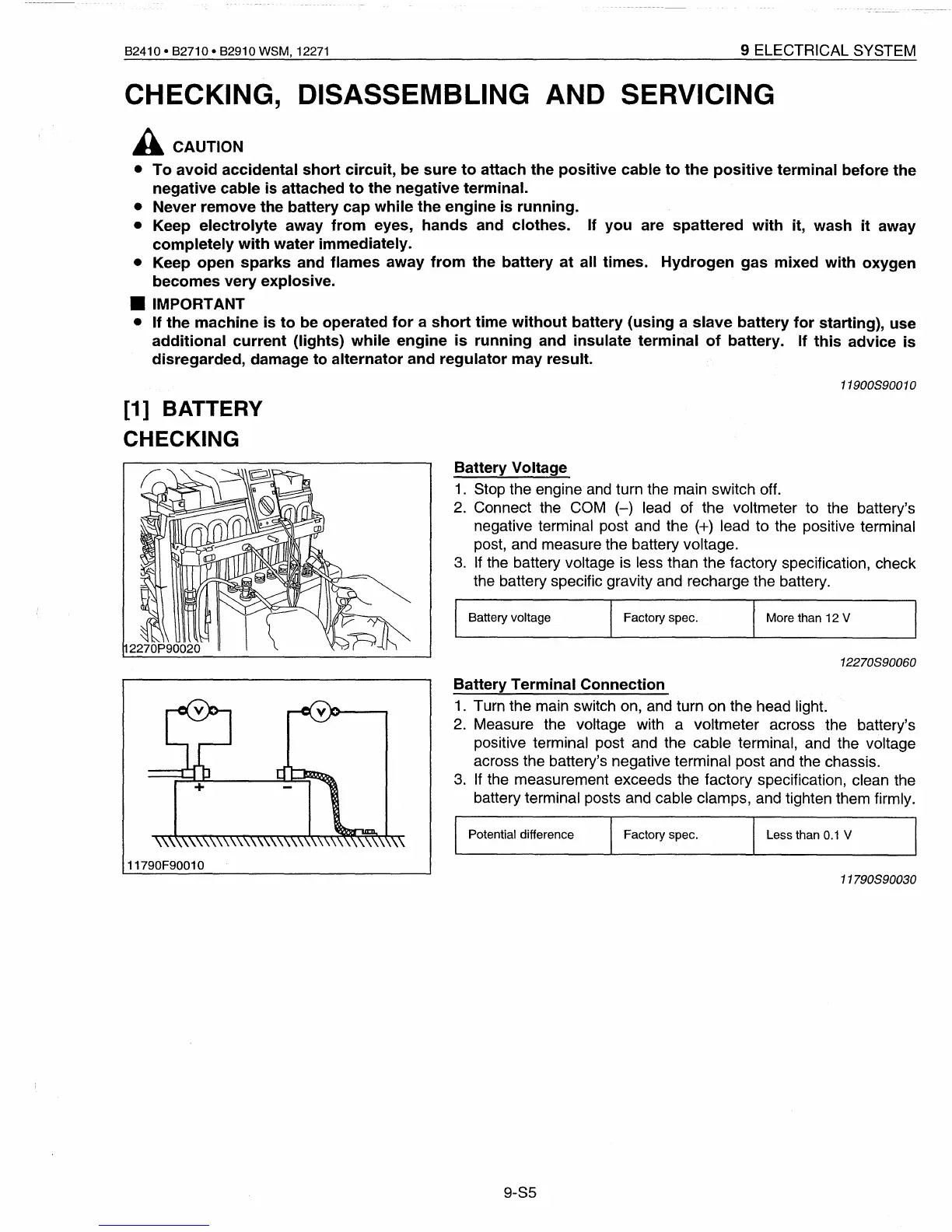

82910 WSM, 12271 9 ELECTRICAL SYSTEM
CHECKING, DISASSEMBLING AND SERVICING
A CAUTION
•
To
avoid
accidental
short
circuit,
be
sure
to
attach
the
positive
cable
to
the
positive
terminal before
the
negative
cable is attached
to
the
negative
terminal.
• Never remove the battery
cap
while
the
engine
is
running.
• Keep
electrolyte
away
from
eyes,
hands
and clothes. If
you
are
spattered
with
it, wash
it
away
completely
with
water immediately.
• Keep open
sparks
and flames away
from
the
battery
at
all times.
Hydrogen
gas
mixed
with
oxygen
becomes
very
explosive
.
• IMPORTANT
• If
the
machine
is
to
be operated
for
a
short
time
without
battery
(using
a
slave
battery
for
starting),
use
additional
current
(lights)
while
engine
is
running
and insulate
terminal
of
battery. If
this
advice
is
disregarded, damage to
alternator
and
regulator
may result.
11900890010
[1] BATTERY
CHECKING
Battery Voltage
1.
Stop the engine
and
turn the main switch off.
2.
Connect the COM
(-)
lead of the voltmeter to the battery's
negative terminal post and the
(+)
lead to the positive terminal
post, and measure the battery voltage.
3.
If the battery voltage is less than the factory specification, check
the battery specific gravity and recharge the battery.
Battery
Terminal Connection
1.
Turn the main switch on, and turn on the head light.
2.
Measure the voltage with a voltmeter across the battery's
positive terminal post and the cable terminal, and the voltage
across the battery's negative terminal post and the chassis.
3.
If
the measurement exceeds the factory specification, clean the
battery terminal posts and cable clamps, and tighten them firmly.
11790F90010
8attery voltage
Potential difference
9-S5
Factory spec.
Factory spec.
More than 12 V
12270890060
Less than
0.1
V
11790890030
