B2410 • B2710 •
B291
0 WSM,
12271
4 REAR AXLE

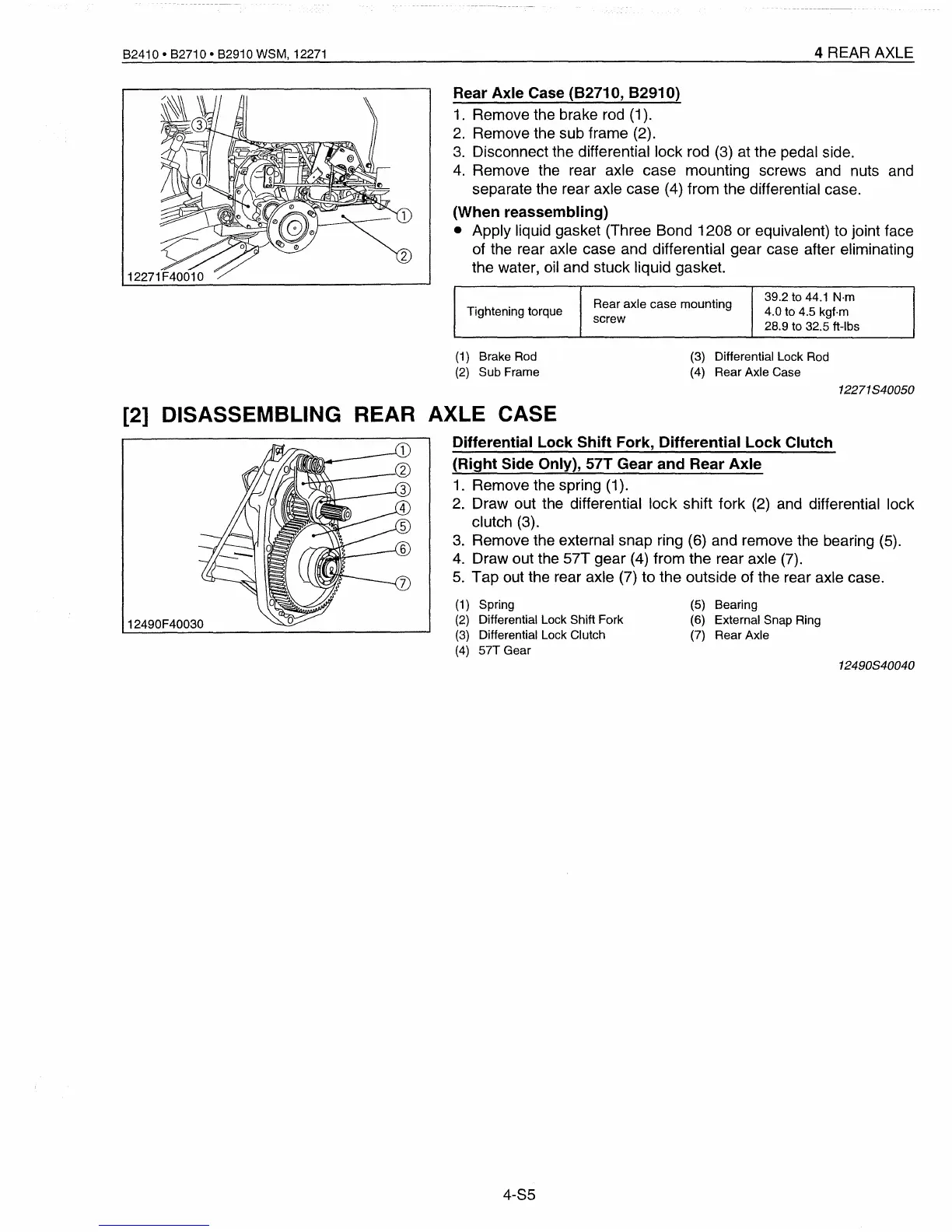

Rear Axle Case (82710, 82910)
1.
Remove the brake
rod
(1).
2.
Remove the sub frame (2).
3.
Disconnect the differential lock rod
(3)
at the pedal side.
4.
Remove the rear axle case mounting screws and nuts and
separate the rear axle case (4) from the differential case.
(When reassembling)
• Apply liquid gasket (Three Bond 1208 or equivalent) to joint face
of the rear axle case and differential gear case after eliminating
the water, oil and stuck liquid gasket.
Rear axle case mounting
39.2
to
44.1
N·m
Tightening torque
4.0 to 4.5 kgf·m
screw
28.9
to
32.5 ft-Ibs
(1)
Brake
Rod
(2)
Sub Frame
(3) Differential Lock
Rod
(4) Rear Axle Case
12271540050
12490540040
(5) Bearing
(6) External Snap Ring
(7) Rear Axle
(1)
Spring
(2)
Differential Lock Shift Fork
(3)
Differential Lock Clutch
(4)
57T Gear
7
12490F40030
[2] DISASSEMBLING REAR AXLE CASE
Differential Lock Shift Fork, Differential Lock Clutch
(Right Side Only), 57T Gear and Rear Axle
1.
Remove the spring (1).
2.
Draw out the differential lock shift fork
(2)
and
differential lock
clutch (3).
3.
Remove the external snap ring (6) and remove the bearing
(5).
4.
Draw out the 57T gear
(4)
from the rear axle
(7).
5.
Tap out the rear axle
(7)
to the outside of the rear axle case.
4-85
