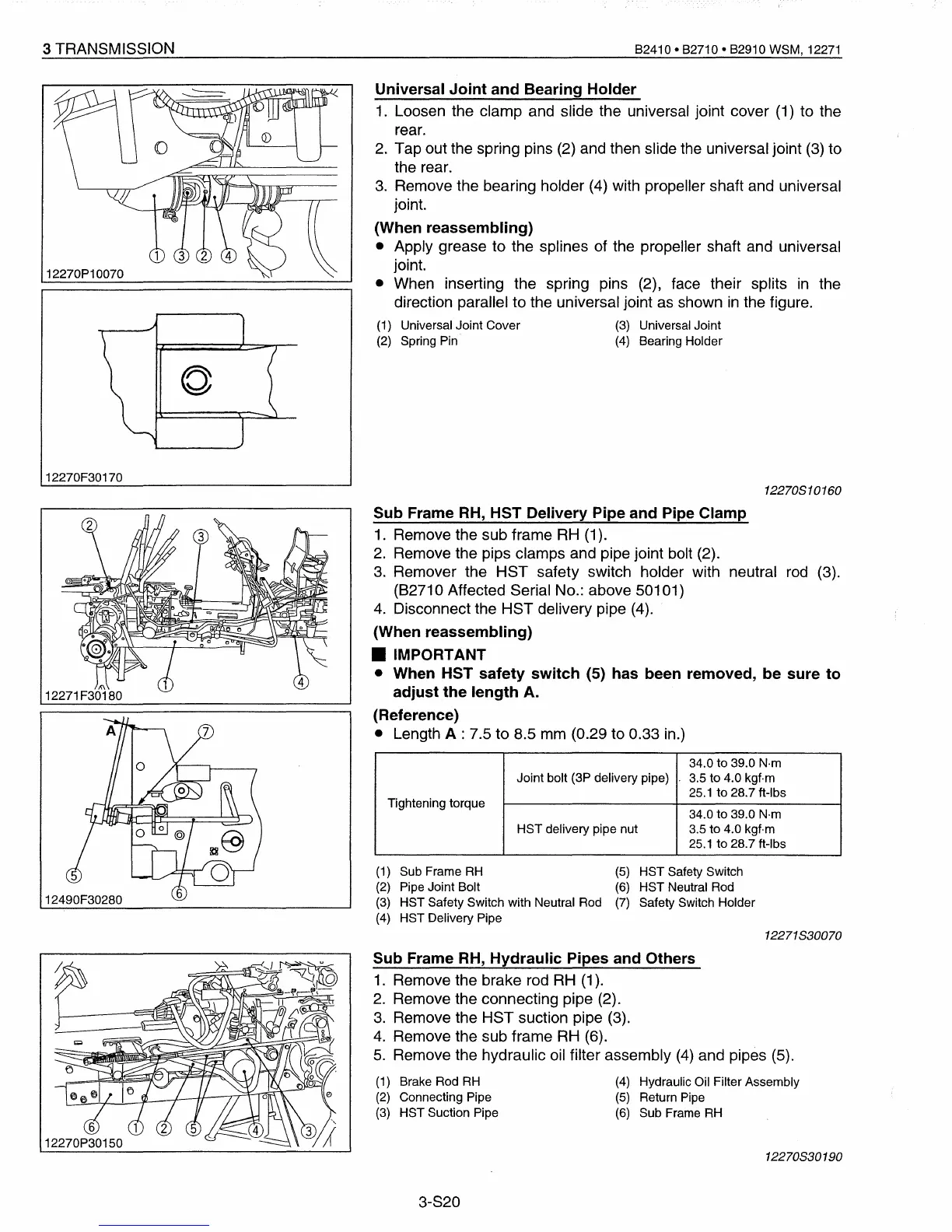

B2410· B2710· B2910 WSM, 12271
Universal Joint and Bearing Holder
1. Loosen the clamp and slide the universal joint cover (1) to the
rear.
2. Tap out the spring pins (2) and then slide the universal joint (3) to
the rear.
3. Remove the bearing holder (4) with propeller shaft and universal
joint.
(When
reassembling)
• Apply grease to the splines of the propeller shaft and universal
joint.
• When inserting the spring pins (2), face their splits
in the
direction parallel to the universal joint as shown
in the figure.
(1) Universal Joint Cover (3) Universal Joint
(2) Spring Pin (4) Bearing Holder
12270810160
Sub Frame RH, HST Delivery Pipe and Pipe Clamp
1. Remove the sub frame RH (1).
2. Remove the pips clamps and pipe joint bolt (2).
3. Remover the HST safety switch holder with neutral rod (3).
(82710 Affected Serial No.: above 50101)
4. Disconnect the HST delivery pipe (4).
(When reassembling)
• IMPORTANT
• When HST
safety switch (5) has been removed, be sure to
adjust the length A.
(Reference)
• Length A : 7.5 to 8.5
mm (0.29 to 0.33 in.)
34.0 to 39.0 N·m
Joint bolt (3P delivery pipe) . 3.5 to 4.0 kgf·m
25.1 to 28.7 ft-Ibs
Tightening torque
34.0 to 39.0 N·m
HST delivery pipe nut
3.5 to 4.0 kgf·m
25.1 to 28.7 ft-Ibs
(1) Sub Frame RH (5) HST Safety Switch
(2) Pipe Joint Bolt (6) HST Neutral Rod
(3) HST Safety Switch with Neutral Rod (7) Safety Switch Holder
(4) HST Delivery Pipe
12271830070
Sub Frame RH, Hydraulic Pipes and Others
1. Remove the brake rod RH (1).
2. Remove the connecting pipe (2).
3. Remove the HST suction pipe (3).
4. Remove the sub frame RH (6).
5. Remove the hydraulic oil filter assembly (4) and pipes (5).
(1) Brake Rod RH (4) Hydraulic Oil Filter Assembly
(2) Connecting Pipe (5) Return Pipe
(3) HST Suction Pipe (6) Sub Frame RH
12270830190
3-S20
