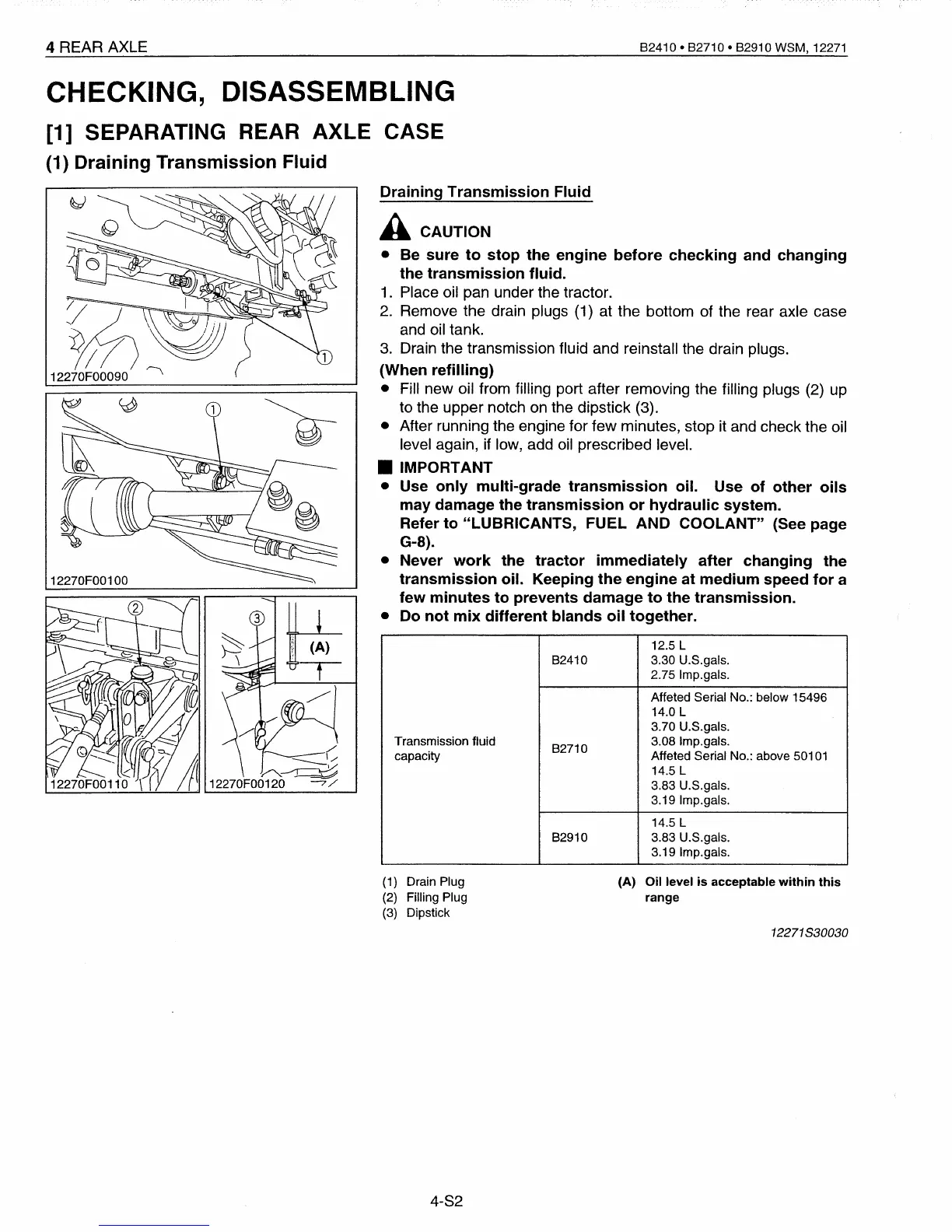

4 REAR AXLE
CHECKING, DISASSEMBLING
[1] SEPARATING REAR AXLE CASE
(1) Draining Transmission Fluid
82410·
82710·
82910 WSM,
12271
Draining
Transmission
Fluid
A CAUTION
•
Be
sure
to
stop
the
engine
before
checking
and
changing
the
transmission
fluid.
1.
Place oil pan under the tractor.
2.
Remove the drain plugs (1) at the bottom of the rear axle case
and oil tank.
3.
Drain the transmission fluid and reinstall the drain plugs.
(When
refilling)
• Fill new oil from filling port after removing the filling plugs (2) up
to the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the oil
level again,
if
low, add
oil
prescribed level.
• IMPORTANT
•
Use
only
multi-grade
transmission
oil.
Use
of
other
oils
may
damage
the
transmission
or
hydraulic
system.
Refer
to
"LUBRICANTS,
FUEL
AND
COOLANT"
(See
page
G-B).
•
Never
work
the
tractor
immediately
after
changing
the
transmission
oil.
Keeping
the
engine
at
medium
speed
for
a
few
minutes
to
prevents
damage
to
the
transmission.
•
Do
not
mix
different
blands
oil
together.
12.5 L
82410 3.30 U.S.gals.
2.75 Imp.gals.
Affeted Serial No.: below 15496
14.0 L
3.70 U.S.gals.
Transmission fluid
82710
3.08 Imp.gals.
capacity Affeted Serial No.: above 50101
14.5 L
3.83 U.S.gals.
3.19 Imp.gals.
14.5 L
82910 3.83 U.S.gals.
3.19Imp.gals.
(1)
Drain Plug
(2)
Filling Plug
(3)
Dipstick
4-82
(A) Oil level
is
acceptable
within
this
range
12271830030
