9 ELECTRICAL SYSTEM

[5]

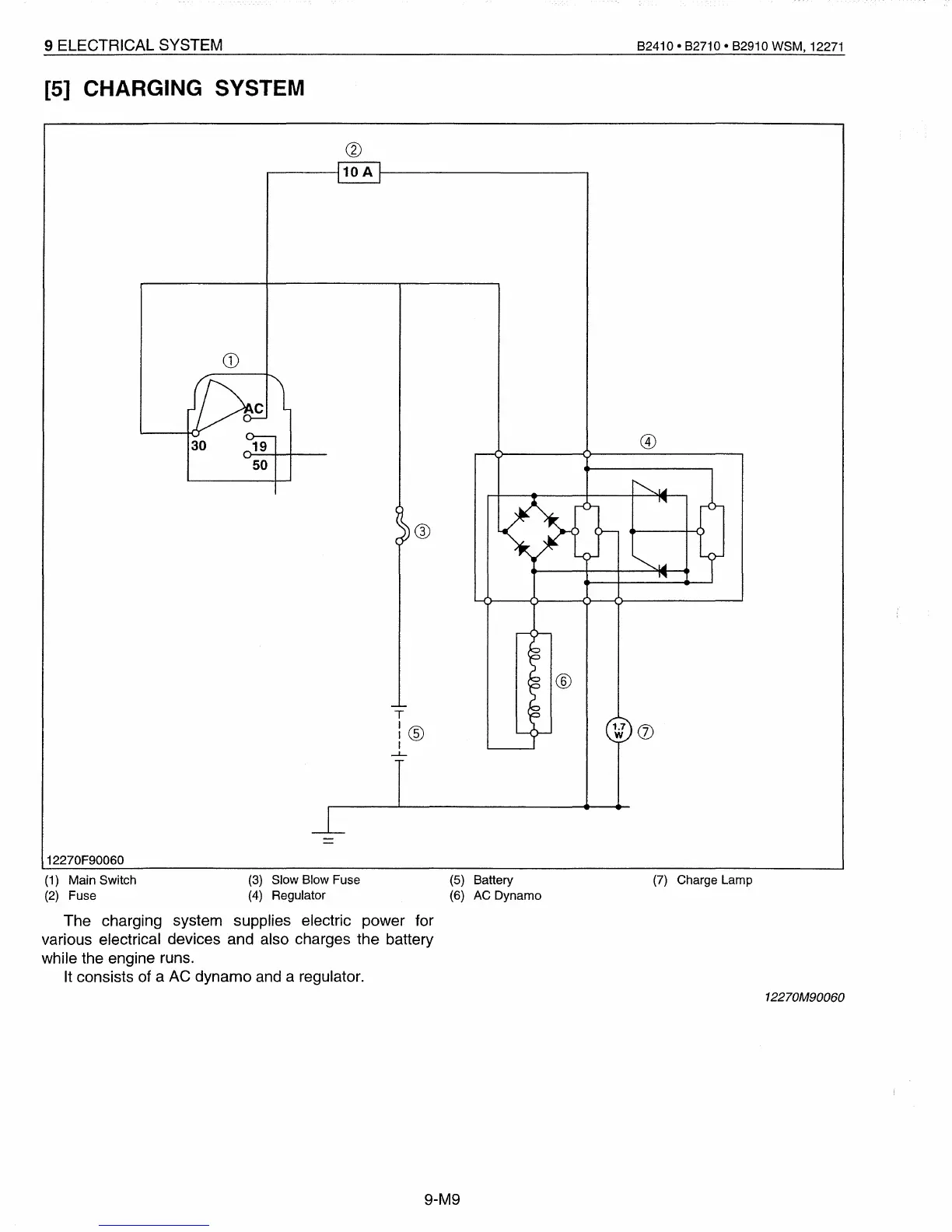

CHARGING SYSTEM

(1)

.-----110

1-------------.

B2410 •

B271

0 • B2910 WSM,

12271

12270F90060

(1)

Main Switch

(2)

Fuse

(3)

Slow Blow Fuse

(4)

Regulator

....L.

(5) Battery

(6)

Dynamo

(7)

Charge Lamp

The charging system supplies electric power for

various electrical devices and also charges the battery

while the engine runs.

It consists of a AC dynamo and a regulator.

9-M9

12270M90060
