B2410 •
B271
0 •
B291
0 WSM, 12271
[4]

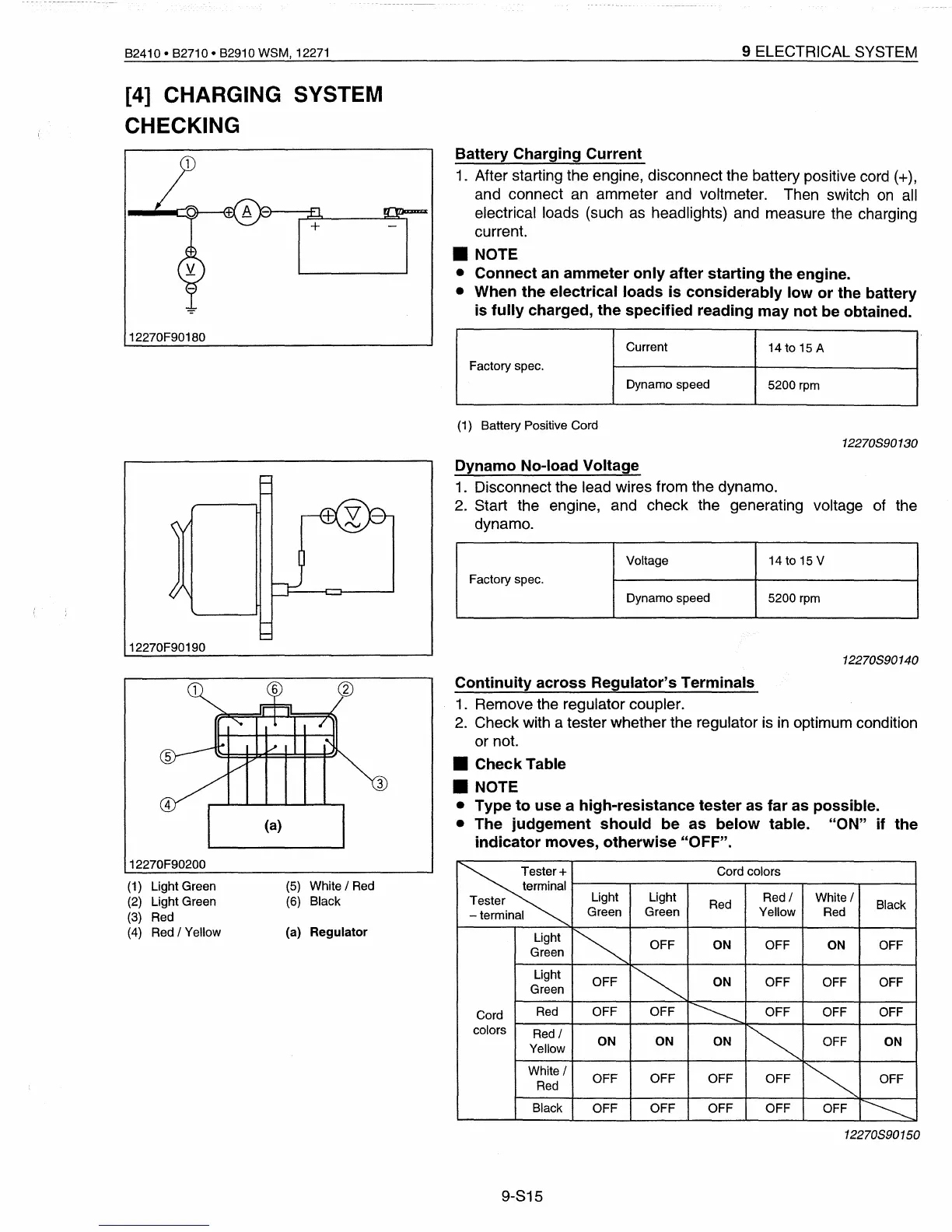

CHARGING SYSTEM
CHECKING
12270F90180
12270F90190
(a)
9 ELECTRICAL SYSTEM
Battery
Charging Current
1.
After starting the engine, disconnect the battery positive cord (+),
and connect an ammeter and voltmeter. Then switch
on
all
electrical loads (such
as
headlights) and measure the charging
current.
• NOTE
•
Connect
an
ammeter
only
after
starting
the engine.
• When
the
electrical
loads
is
considerably
low
or
the battery
is
fully
charged,
the
specified
reading
may
not
be obtained.
Current
14 to 15 A
Factory spec.
Dynamo speed
5200
rpm
(1)
Battery Positive Cord
12270890130
Dynamo No-load Voltage
1.
Disconnect the lead wires from the dynamo.
2.
Start the engine, and check the generating voltage of the
dynamo.
Voltage 14 to
15
V
Factory spec.
Dynamo speed 5200
rpm
12270890140
Continuity
across
Regulator's
Terminals
1.
Remove the regulator coupler.
2.
Check with a tester whether the regulator is
in
optimum condition
or not.
•
Check
Table
• NOTE
•
Type
to
use
a
high-resistance
tester
as
far
as possible.
• The
judgement
should
be as
below
table.
"ON"
if
the
indicator
moves,
otherwise
"OFF".
12270F90200
(1)
Light Green
(2)
Light Green
(3)
Red
(4)
Red / Yellow
(5) White /
Red
(6)
Black
(a) Regulator
~
Cord colors
terminal
Tester
Light
Light
Red
Red/
White /
Black
-terminal
Green Green
Yellow
Red
Light
~
OFF
ON
OFF
ON
OFF
Green
Light
OFF
~
ON
OFF
OFF OFF
Green
Cord
Red
OFF
OFF
~
OFF OFF OFF
colors
Red
/
~
Yellow
ON
ON
ON
OFF
ON
White /
OFF OFF OFF OFF
~
OFF
Red
Black
OFF OFF OFF OFF OFF
~
12270890150
9-815
