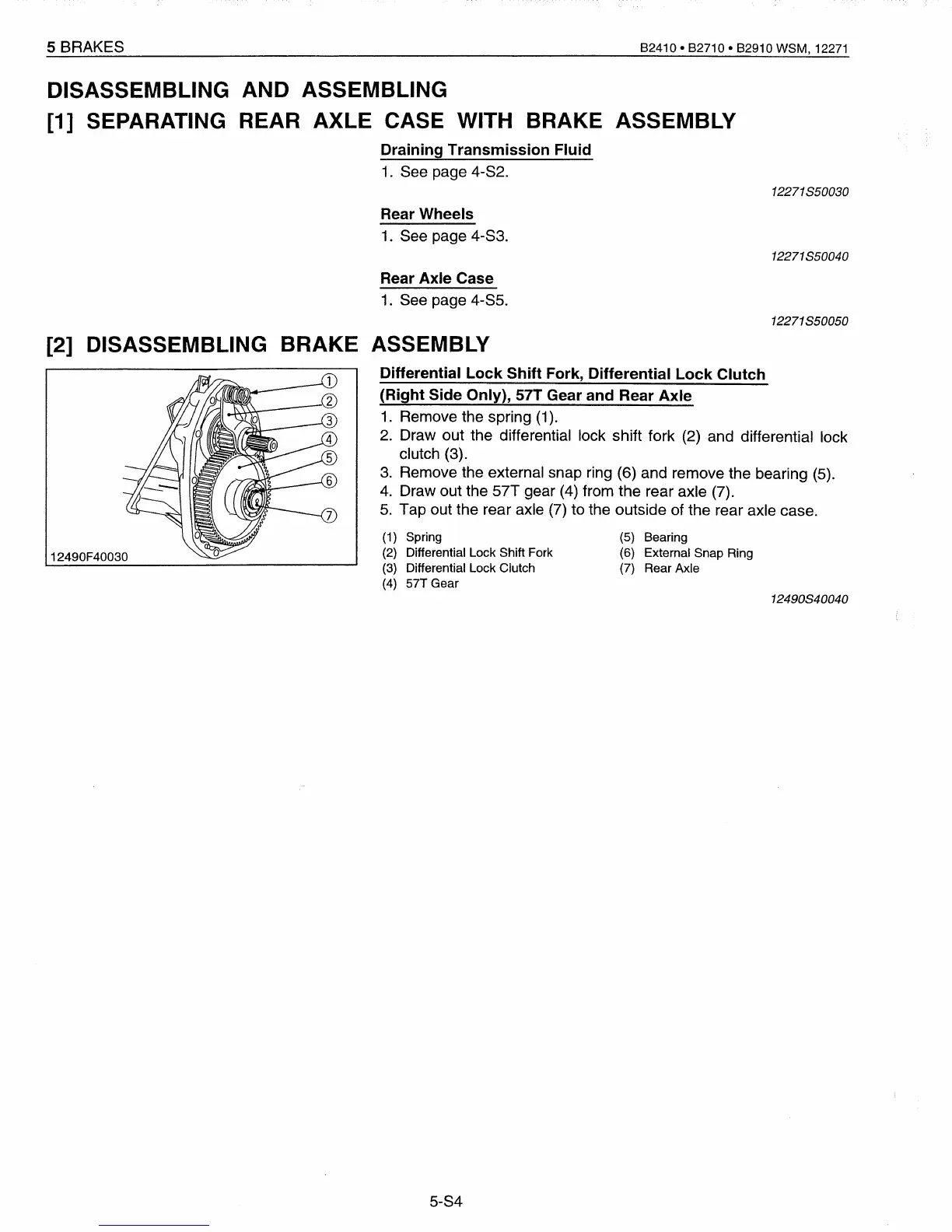

5 BRAKES 82410· 82710· 82910 WSM, 12271
DISASSEMBLING AND ASSEMBLING
[1] SEPARATING REAR AXLE CASE WITH BRAKE ASSEMBLY
Draining Transmission Fluid
1. See page 4-S2.
12271850030
Rear Wheels
1. See page 4-S3.
12271850040
Rear Axle Case
1. See page 4-S5.
12271850050
(5) 8earing
(6) External Snap Ring
(7) Rear Axle
(1) Spring
(2) Differential Lock Shift Fork
(3) Differential Lock Clutch
(4) 57T Gear
7
12490F40030
[2] DISASSEMBLING BRAKE ASSEMBLY
Differential Lock Shift Fork, Differential Lock Clutch
(Right Side Only), 57T Gear and Rear Axle
1. Remove the spring (1).
2. Draw out the differential lock shift fork (2) and differential lock
clutch (3).
3. Remove the external snap ring (6) and remove the bearing (5).
4. Draw out the 57T gear (4) from the rear axle (7).
5. Tap out the rear axle (7) to the outside of the rear axle case.
12490840040
