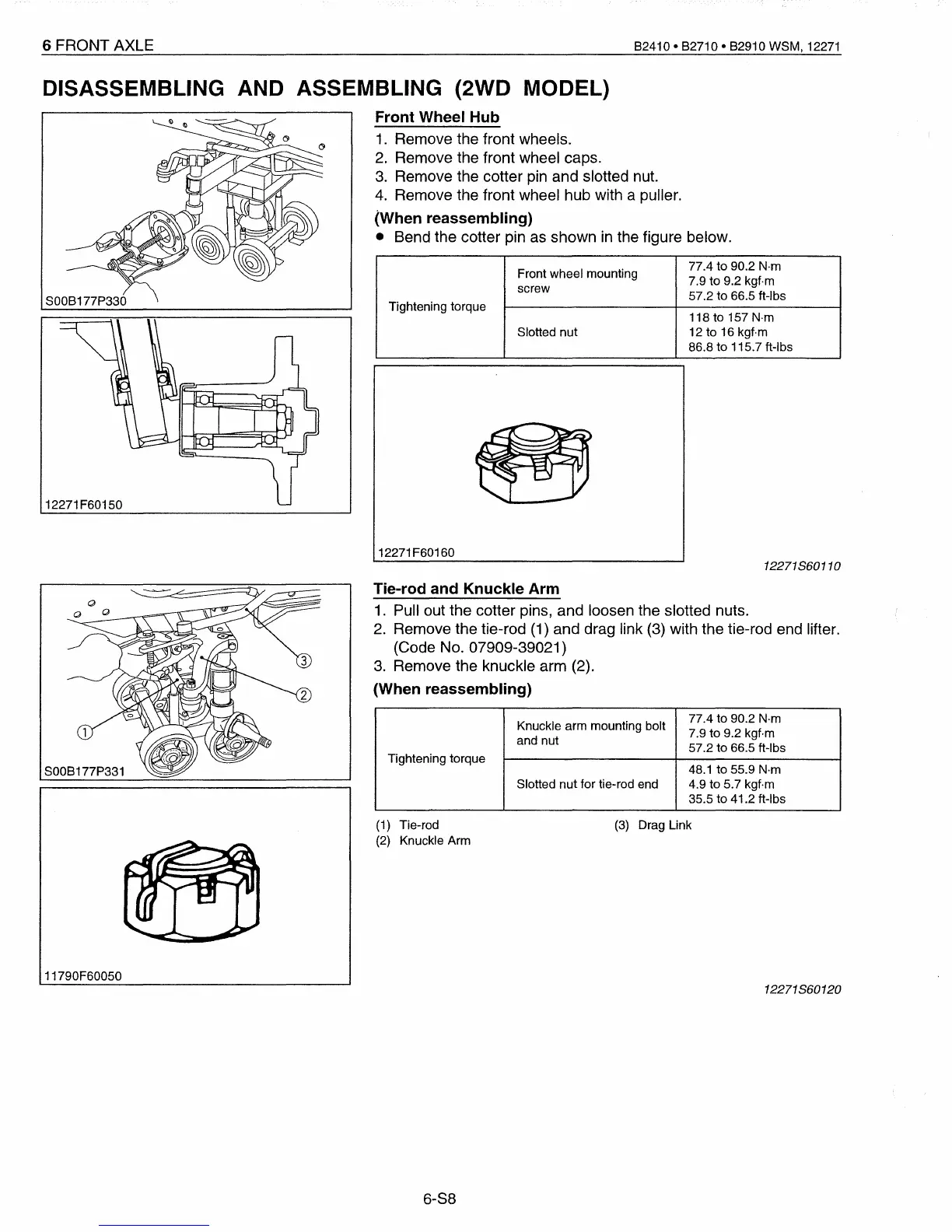

6 FRONT AXLE
82410·
82710·
82910 WSM,
12271
DISASSEMBLING AND ASSEMBLING (2WD MODEL)
Front Wheel Hub
1.
Remove the front wheels.
2.
Remove the front wheel caps.
3.
Remove the cotter
pin
and slotted nut.
4.
Remove the front wheel hub with a puller.
(When reassembling)
• Bend the cotter pin
as
shown
in
the figure below.
Front wheel mounting
77.4 to 90.2 N·m
7.9 to 9.2 kgf·m
screw
57.2 to 66.5 ft-Ibs
Tightening torque
118 to 157 N·m
Slotted nut 12 to 16 kgf·m
86.8 to 115.7 ft-Ibs
12271F60150
12271F60160
12271860110
S008177P331
Tie-rod and Knuckle Arm
1.
Pull out the cotter pins, and loosen the slotted nuts.
2.
Remove the tie-rod
(1)
and drag link
(3)
with the tie-rod end lifter.
(Code No. 07909-39021)
3.
Remove the knuckle arm (2).
(When reassembling)
Knuckle arm mounting bolt
77.4 to 90.2
N·m
7.9 to 9.2 kgf·m
and nut
57.2 to 66.5 ft-Ibs
Tightening torque
48.1
to 55.9 N·m
Slotted nut for tie-rod end
4.9 to 5.7 kgf·m
35.5 to 41.2 ft-Ibs
11790F60050
(1)
Tie-rod
(2)
Knuckle Arm
6-88
(3)
Drag Link
12271860120
