82410 • 82710 • 82910 WSM, 12271
(1

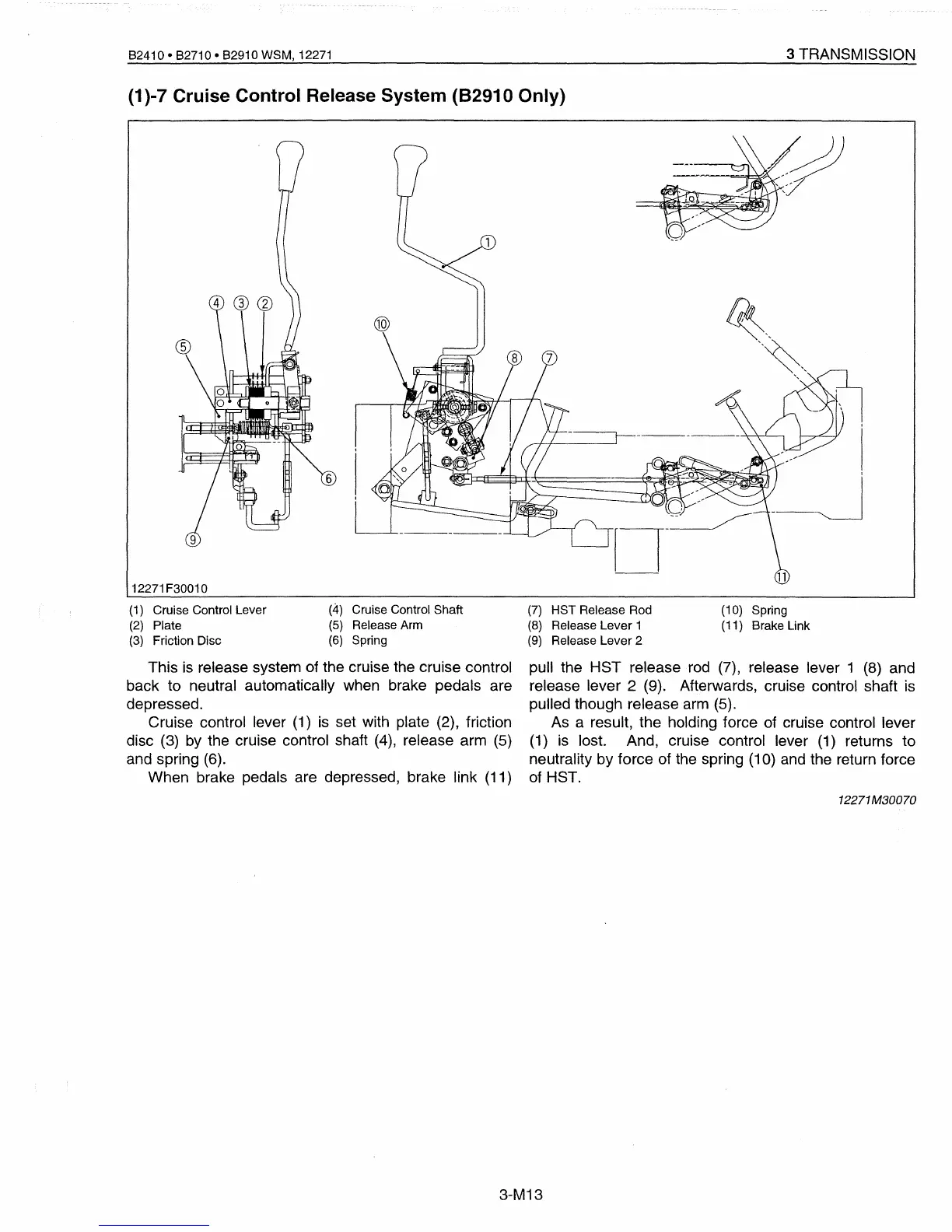

)-7 Cruise Control Release System
(82910
Only)
3 TRANSMISSION
12271F30010
(1)
Cruise Control Lever
(2) Plate
(3)
Friction Disc
(4)
Cruise Control Shaft
(5) Release Arm
(6)
Spring
(7)
HST Release Rod
(8) Release Lever 1
(9)
Release Lever 2
(10) Spring
(11) 8rake Link
This
is
release system of the cruise the cruise control
back to neutral automatically when brake pedals are
depressed.
Cruise control lever (1)
is
set with plate (2), friction
disc (3) by the cruise control shaft
(4),
release arm (5)
and spring (6).
When brake pedals are depressed, brake link (11)
pull the HST release
rod
(7), release lever 1 (8) and
release lever 2 (9). Afterwards, cruise control shaft
is
pulled though release arm (5).
As a result, the holding force of cruise control lever
(1)
is
lost. And, cruise control lever
(1)
returns to
neutrality by force of the spring (10) and the return force
of HST.
12271M30070
3-M13
