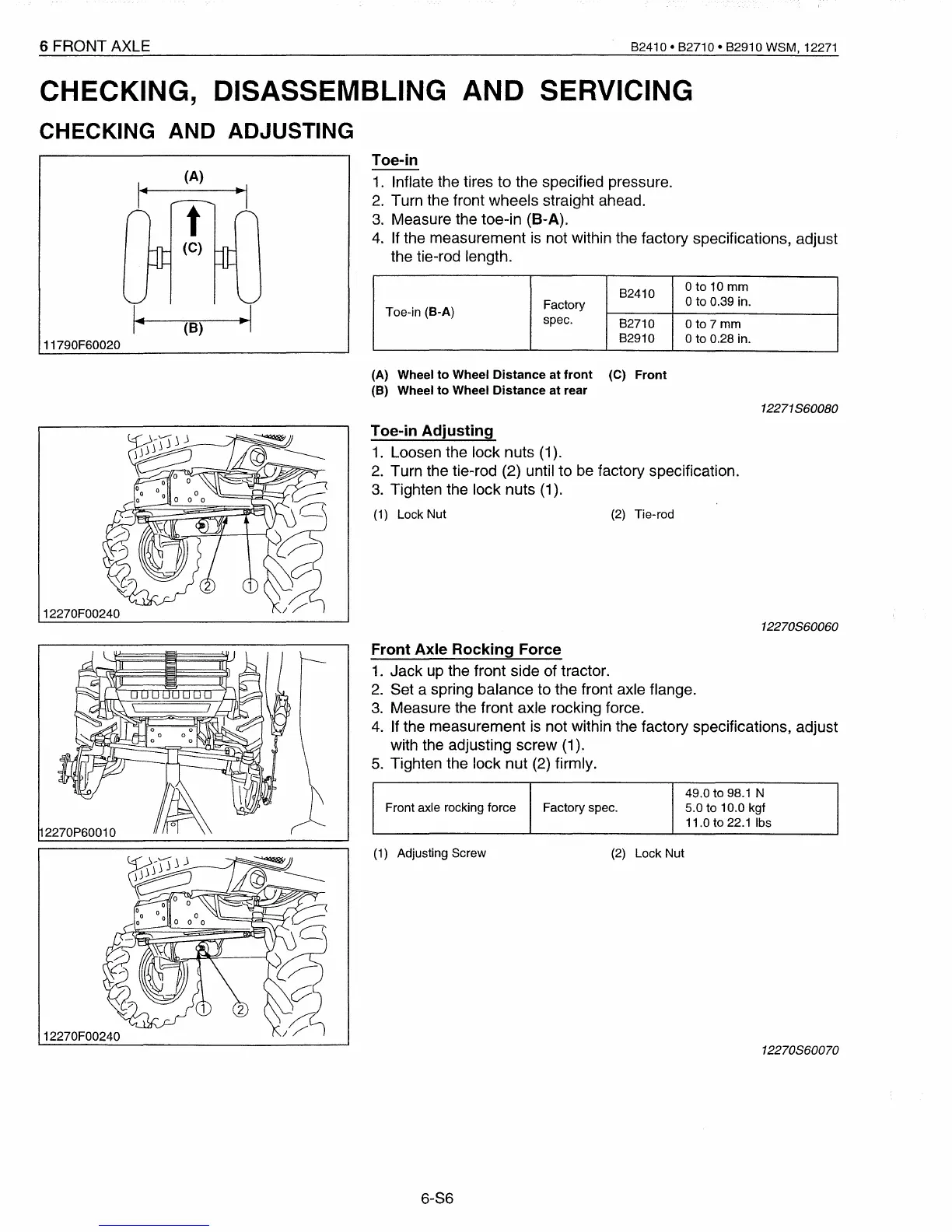

6 FRONT AXLE
82410·
82710·
82910 WSM, 12271
CHECKING, DISASSEMBLING AND SERVICING
CHECKING AND ADJUSTING
11790F60020
I~
(A)
t
(C)
(8)
~I
Toe-in
1.
Inflate the tires to the specified pressure.
2.
Turn the front wheels straight ahead.
3.
Measure the toe-in (B-A).
4.
If the measurement
is
not within the factory specifications, adjust
the tie-rod length.
82410
o
to
10 mm
Factory
oto 0.39 in.
Toe-in (B-A)
spec.
82710
oto 7 mm
82910
oto 0.28 in.
(A) Wheel
to
Wheel Distance
at
front
(C)
Front
(B) Wheel
to
Wheel Distance at rear
12271860080
Toe-in
Adjusting
1.
Loosen the lock nuts (1).
2.
Turn the tie-rod (2) until
to
be factory specification.
3.
Tighten the lock nuts (1).
49.0 to
98.1
N
Front axle rocking force Factory spec.
5.0 to 10.0 kgf
11.0 to 22.1 Ibs
Front
Axle
Rocking
Force
1.
Jack up the front side of tractor.
2.
Set a spring balance to the front axle flange.
3.
Measure the front axle rocking force.
4.
If the measurement
is
not within the factory specifications, adjust
with the adjusting screw (1).
5.
Tighten the lock nut (2) firmly.
12270F00240
2270P60010
12270F00240
(1)
Lock Nut
(1)
Adjusting Screw
6-86
(2)
Tie-rod
(2)
Lock Nut
12270860060
12270860070
