G GENERAL
12490F00200
82410·
82710·
82910 WSM, 12271

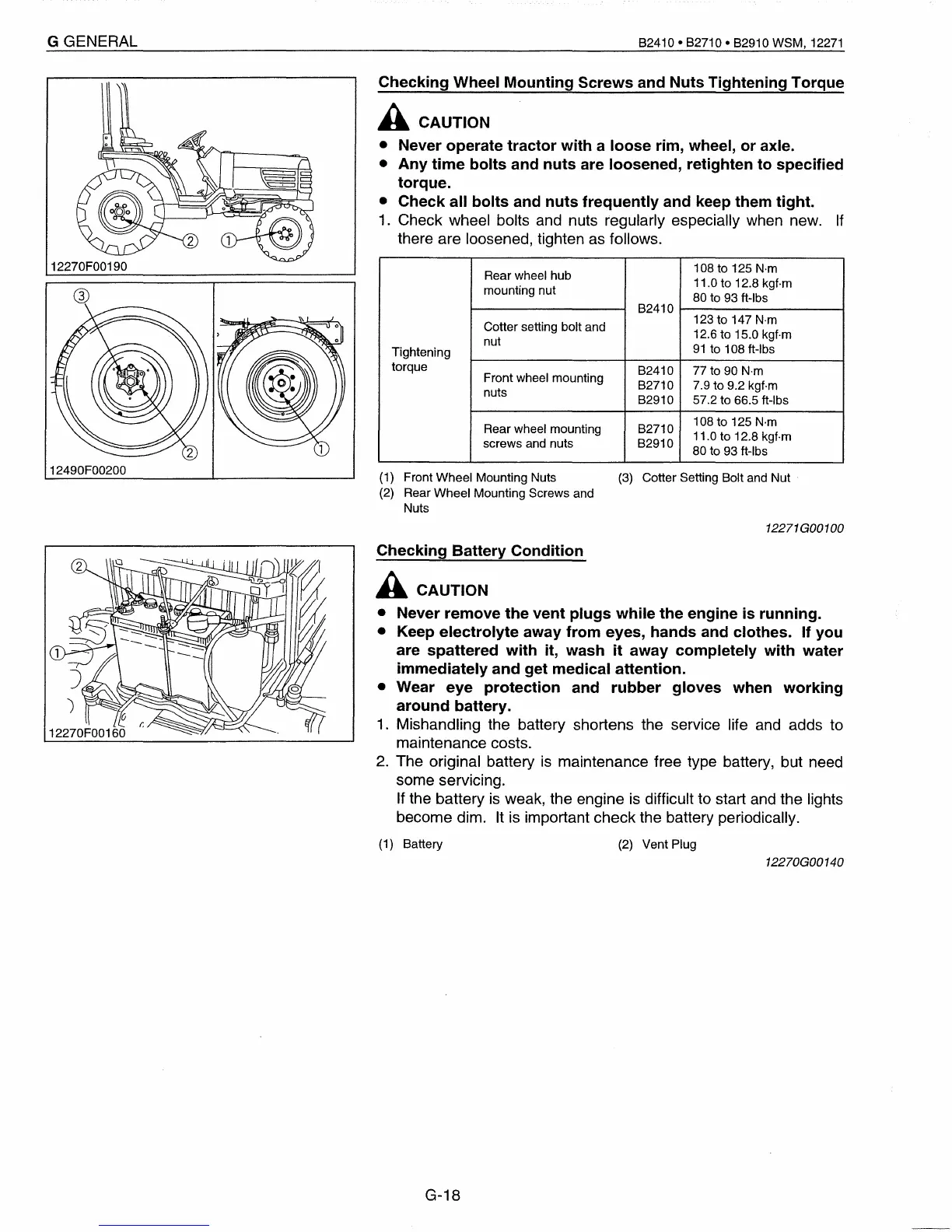

Checking
Wheel
Mounting
Screws
and
Nuts
Tightening Torque
A CAUTION
• Never operate
tractor
with
a
loose
rim, wheel,
or
axle.
•
Any
time
bolts
and
nuts
are loosened, retighten
to
specified
torque.
• Check
all
bolts
and
nuts
frequently
and
keep them
tight.
1.
Check wheel bolts and nuts regularly especially when new.
If
there are loosened, tighten
as
follows.
Rear wheel hub
108 to 125
N·m
mounting nut
11.0 to 12.8 kgf·m
80 to 93 ft-Ibs
82410
Cotter setting bolt and
123 to 147 N·m
nut
12.6 to 15.0 kgf·m
Tightening
91
to 108 ft-Ibs
torque
Front wheel mounting
82410
77 to 90 N·m
82710 7.9 to 9.2 kgf·m
nuts
82910 57.2 to 66.5 ft-Ibs
Rear wheel mounting 82710
108 to 125 N·m
11.0 to 12.8 kgf·m
screws and nuts 82910
80 to 93 ft-Ibs
(1) Front Wheel Mounting Nuts
(3)
Cotter Setting 80lt and Nut
(2) Rear Wheel Mounting Screws and
Nuts
12271G00100
Checking
Battery
Condition
A CAUTION
• Never
remove
the
vent
plugs
while
the
engine
is
running.
• Keep
electrolyte
away
from
eyes,
hands
and clothes. If
you
are spattered
with
it, wash
it
away
completely
with
water
immediately
and
get
medical
attention.
• Wear
eye
protection
and
rubber
gloves
when
working
around
battery.
1.
Mishandling the battery shortens the service life
and
adds to
maintenance costs.
2.
The original battery
is
maintenance free type battery, but need
some servicing.
If the battery
is
weak, the engine
is
difficult to start
and
the lights
become dim. It is important check the battery periodically.
(1) 8attery
G-18
(2) Vent Plug
12270G00140
To Next Page
