(1 )-5 Control Linkage
3 TRANSMISSION
12270F30060
The roller (7) on the neutral holder arm (6) is held
with spring seats the detent of the neutral holder
(5) so
that the neutral holder returns to neutral. Then, the
swashplate
is returned to neutral with the neutral holder,
when the pedal
is released. The damper (2) connected
to the speed control pedal restricts the movement
of the
linkage to prevent abrupt operation or reversing.

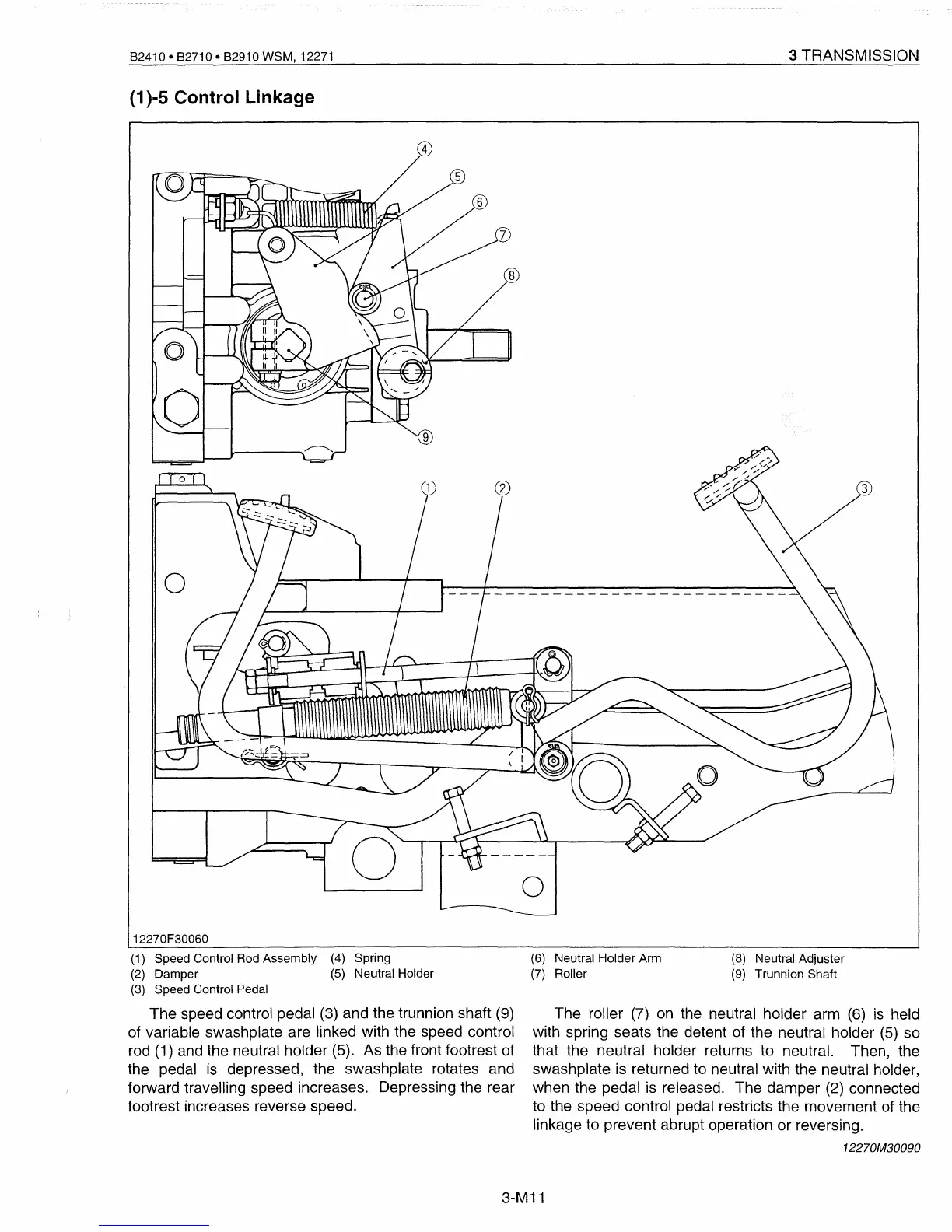

12270M30090
(1) Speed Control Rod Assembly (4) Spring
(2) Damper (5) Neutral Holder
(3) Speed Control Pedal
The speed control pedal (3) and the trunnion shaft (9)
of variable swashplate are linked with the speed control
rod (1) and the neutral holder (5). As the front footrest of
the pedal
is depressed, the swashplate rotates and
forward travelling speed increases. Depressing the rear
footrest increases reverse speed.
(6) Neutral Holder Arm
(7) Roller
(8) Neutral Adjuster
(9) Trunnion Shaft
3-M11
