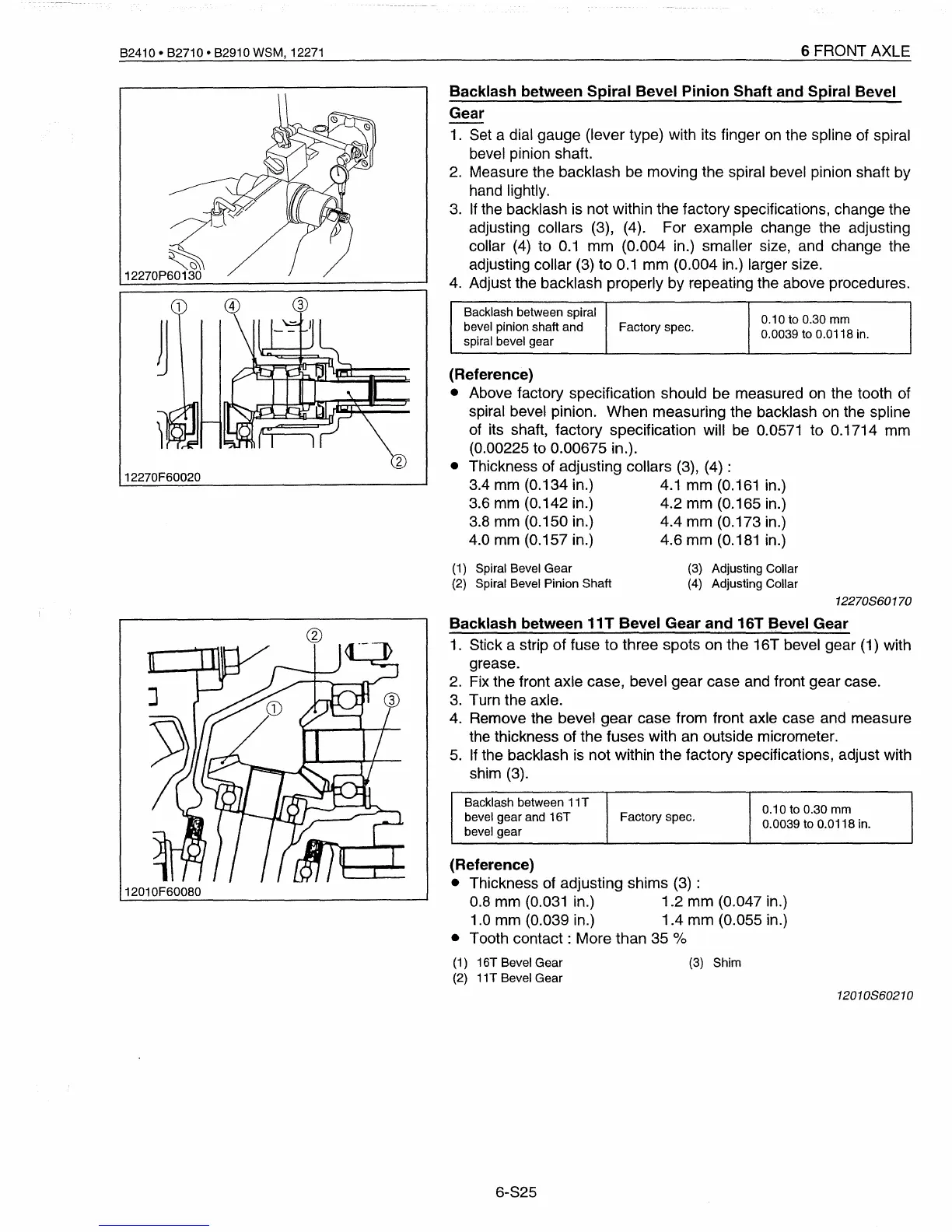

6 FRONT AXLE
Backlash between Spiral Bevel Pinion Shaft and Spiral Bevel
Gear
1.
Set a dial gauge (lever type) with its finger
on
the spline of spiral
bevel pinion shaft.
2.
Measure the backlash
be
moving the spiral bevel pinion shaft by
hand lightly.
3.
If
the backlash
is
not within the factory specifications, change the
adjusting collars (3),
(4).
For example change the adjusting
collar
(4)
to
0.1
mm (0.004 in.) smaller size, and change the
adjusting collar
(3)
to
0.1
mm (0.004 in.) larger size.
4.
Adjust the backlash properly by repeating the above procedures.
Backlash between spiral
0.10 to 0.30
mm
bevel pinion shaft and
Factory spec.
0.0039
to
0.0118
in.
spiral bevel gear
(Reference)
• Above factory specification should be measured
on
the tooth of
spiral bevel pinion. When measuring the backlash
on
the spline
of
its shaft, factory specification will
be
0.0571
to 0.1714 mm
(0.00225 to 0.00675 in.).
• Thickness of adjusting collars
(3),
(4) :
3.4
mm
(0.134 in.)
4.1
mm
(0.161
in.)
3.6 mm (0.142 in.) 4.2 mm (0.165 in.)
3.8
mm (0.150 in.) 4.4 mm (0.173 in.)
4.0
mm
(0.157 in.) 4.6 mm (0.181 in.)
(1)
Spiral Bevel Gear
(3)
Adjusting Collar
(2)
Spiral Bevel Pinion Shaft
(4)
Adjusting Collar
12270860170
Backlash between
11
T Bevel Gear and 16T Bevel Gear
1.
Stick a strip of fuse to three spots on the 16T bevel gear (1) with
grease.
2.
Fix
the front axle case, bevel gear case and front gear case.
3.
Turn the axle.
4.
Remove the bevel gear case from front axle case and measure
the thickness of the fuses with
an
outside micrometer.
5.
If
the backlash
is
not within the factory specifications, adjust with
shim
(3).
Backlash between
11
T
0.10
to
0.30
mm
bevel gear and 16T Factory spec.
0.0039 to 0.0118 in.
bevel gear
(Reference)
• Thickness of adjusting shims
(3)
:
0.8
mm
(0.031
in.) 1.2 mm (0.047 in.)
1.0 mm (0.039 in.) 1.4 mm (0.055 in.)
• Tooth contact: More than 35
0/0
(1)
16T Bevel Gear
(3)
Shim
(2) 11T Bevel Gear
12010860210
6-S25
