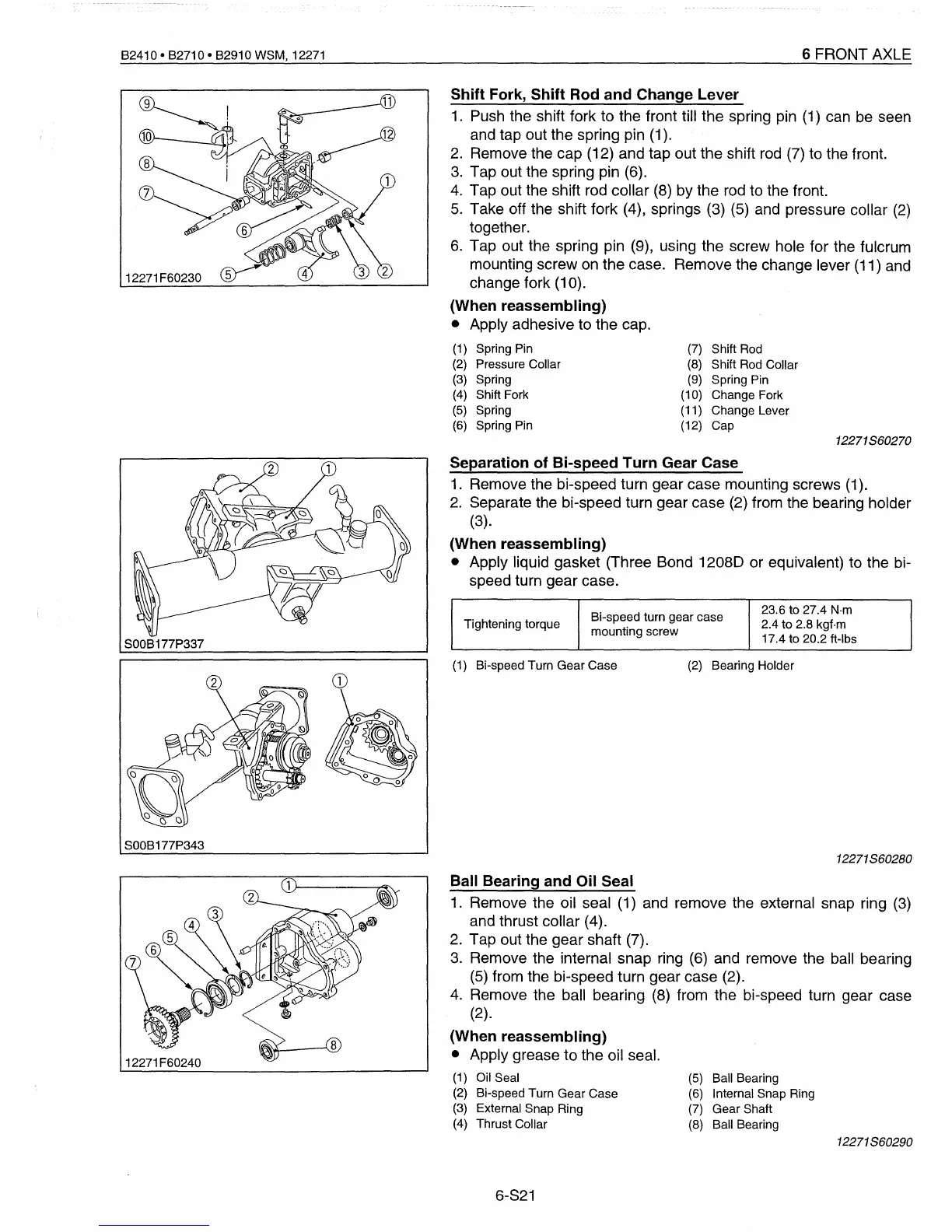

B2410 • B2710 • B2910 WSM,
12271
6 FRONT AXLE
Shift
Rod
Shift
Rod
Collar
Spring Pin
Change Fork
Change Lever
Cap
(7)
(8)
(9)
(10)
(11
)
(12)
Shift Fork, Shift Rod and Change Lever
1.
Push the shift fork to the front till
the
spring pin (1) can be seen
and tap out the spring pin (1).
2. Remove the cap (12) and tap out
the
shift rod (7) to the front.
3.
Tap out the spring pin (6).
4.
Tap out the shift rod collar (8) by the rod to the front.
5.
Take off the shift fork (4), springs (3) (5) and pressure collar (2)
together.
6.
Tap out the spring pin (9), using the screw hole for the fulcrum
mounting screw on
the
case. Remove the change lever (11) and
change fork (10).
(When reassembling)
• Apply adhesive to the cap.
(1)
Spring Pin
(2)
Pressure Collar
(3)
Spring
(4)
Shift Fork
(5)
Spring
(6)
Spring Pin
12271F60230
12271860270
SOOB177P337
Separation of Bi-speed Turn Gear Case
1.
Remove the bi-speed turn gear case mounting screws (1).
2.
Separate the bi-speed turn
gear
case (2) from the bearing holder
(3).
(When reassembling)
• Apply liquid gasket (Three Bond
12080
or equivalent) to the bi-
speed turn
gear
case.
Bi-speed turn gear case
23.6 to 27.4
N·m
Tightening torque
2.4 to 2.8 kgf·m
mounting screw
17.4 to 20.2 ft-Ibs
CD
(1)
Bi-speed Turn Gear Case
(2)
Bearing Holder
SOOB177P343
12271860280
(5)
Ball Bearing
(6)
Internal Snap Ring
(7)
Gear Shaft
(8)
Ball Bearing
12271F60240
Ball Bearing and Oil Seal
1.
Remove the oil seal (1) and remove the external snap ring (3)
and thrust collar (4).
2. Tap out the
gear
shaft (7).
3.
Remove the internal snap ring (6) and remove the ball bearing
(5) from the bi-speed turn gear case (2).
4. Remove the ball bearing (8) from the bi-speed turn gear case
(2).
(When reassembling)
• Apply grease
to
the oil seal.
(1)
Oil Seal
(2)
Bi-speed Turn Gear Case
(3)
External Snap Ring
(4)
Thrust Collar
12271860290
6-S21
