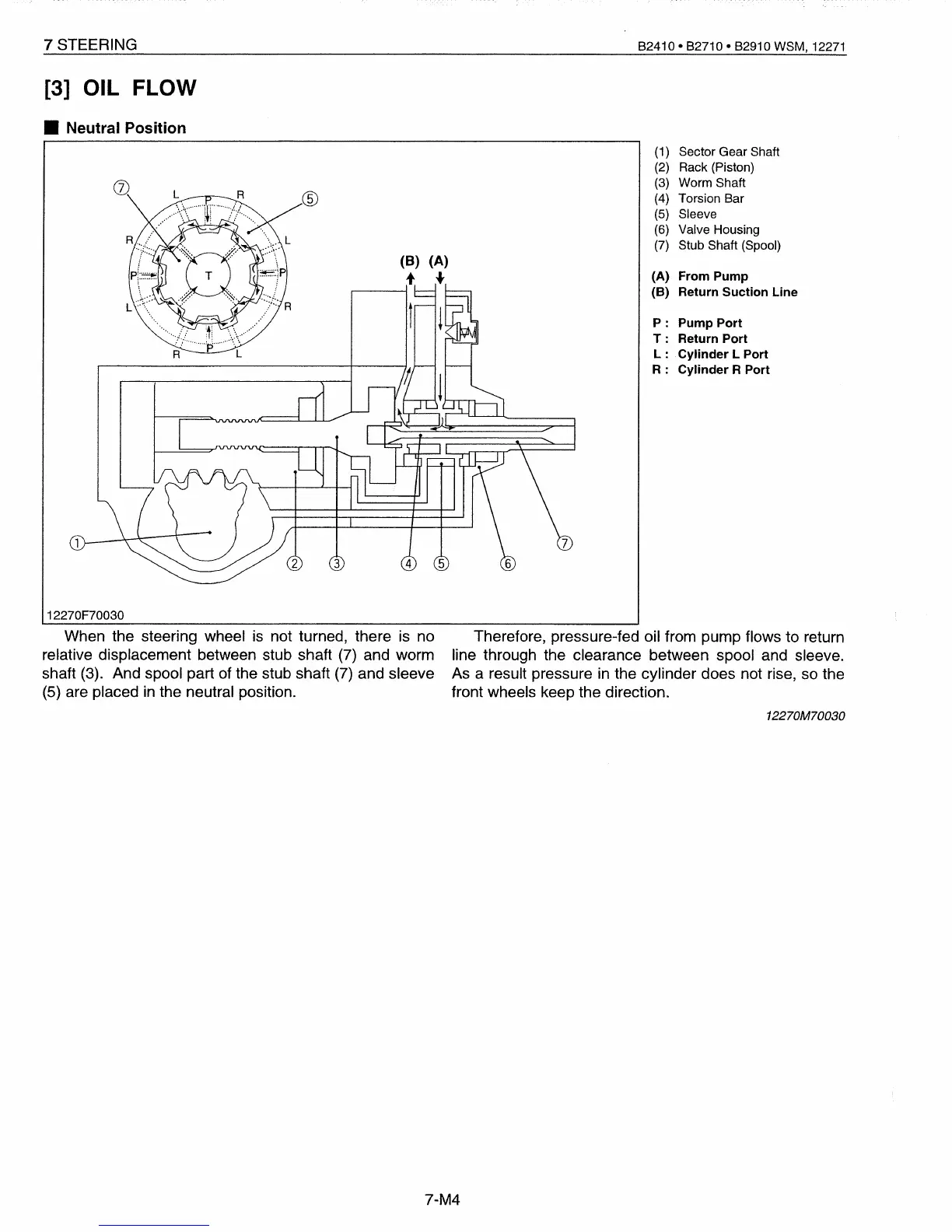

7 STEERING
[3]
OIL FLOW
• Neutral Position
12270F70030
82410·
82710·
82910 WSM,
12271
(1
)
Sector Gear Shaft
(2)
Rack (Piston)
(3)
Worm Shaft
®
(4) Torsion
8ar
(5) Sleeve
(6)
Valve Housing
(7) Stub Shaft (Spool)
(B) (A)
t
..
(A) From Pump
(B) Return Suction Line
P:
Pump
Port
T:
Return
Port
L:
Cylinder
L Port
R:
Cylinder
R Port
When the steering wheel
is
not turned, there is no
relative displacement between stub shaft (7) and worm
shaft (3). And spool part of the stub shaft (7) and sleeve
(5) are placed
in
the neutral position.
Therefore, pressure-fed oil from pump flows to return
line through the clearance between spool and sleeve.
As a result pressure in the cylinder does not rise, so the
front wheels keep the direction.
12270M70030
7-M4
