Kubota B2910 User Manual

82410 • 82710 • 82910 WSM, 12271
Front
t
Rear
00000F60040

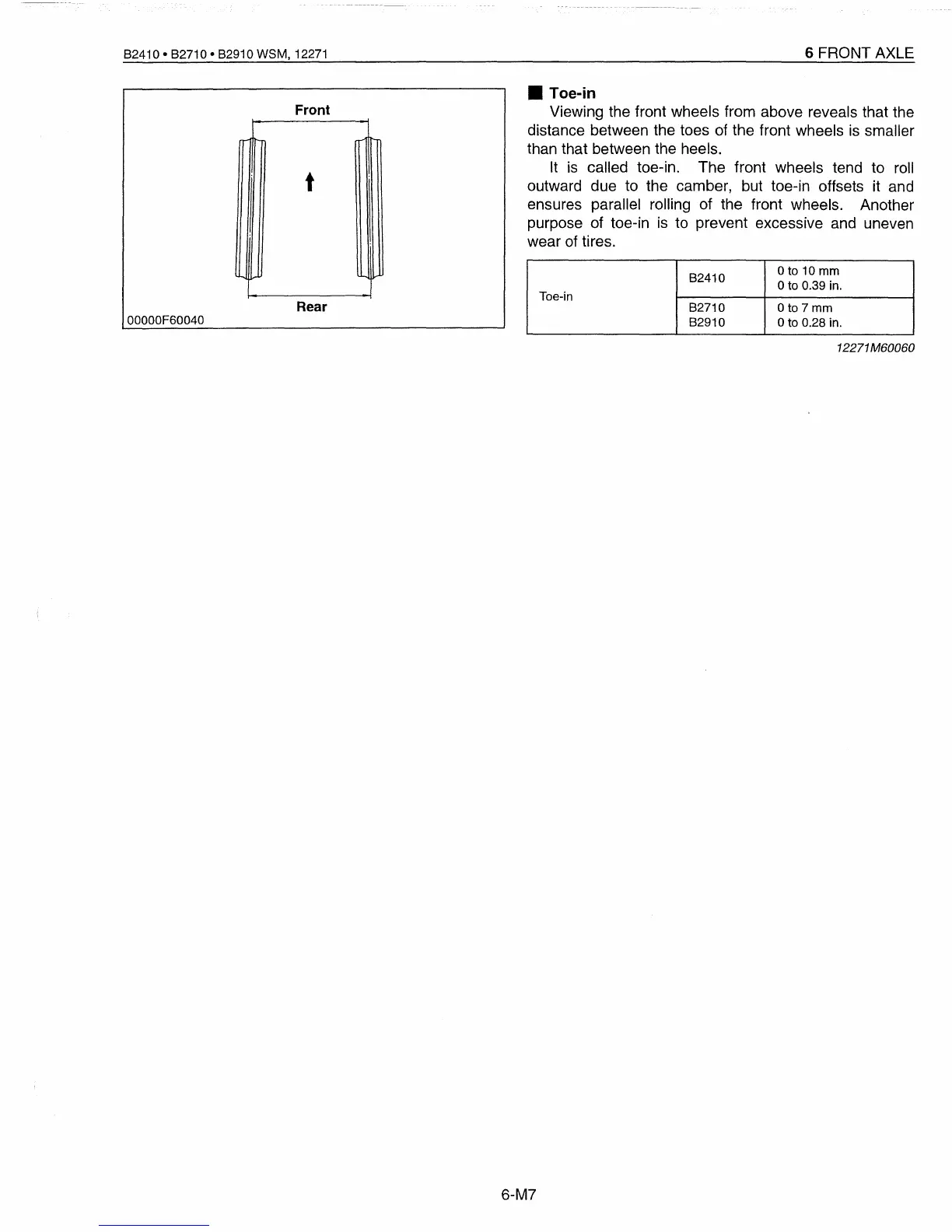

6 FRONT AXLE
• Toe-in
Viewing the front wheels from above reveals that the
distance between the toes of the front wheels is smaller
than that between the heels.
It is called toe-in. The front wheels tend to roll
outward due to the camber, but toe-in offsets it and
ensures parallel rolling of the front wheels. Another
purpose of toe-in is to prevent excessive and uneven
wear of tires.
82410
oto 10 mm
oto 0.39 in.
Toe-in
82710
oto 7 mm
82910
oto 0.28 in.
12271 M60060
6-M7

Kubota B2910 Specifications

General

Fuel Type	Diesel
Transmission Type	Hydrostatic
Hydraulic System	Open center
3-Point Hitch	Category I
Lift Capacity	1, 323 lbs (600 kg)
Drive	4WD
Engine Type	Diesel, 4-cycle, liquid-cooled
Horsepower	30 hp
Number of Gears	Infinite (3 ranges)
Wheelbase	63 inches
PTO Horsepower	22 hp
