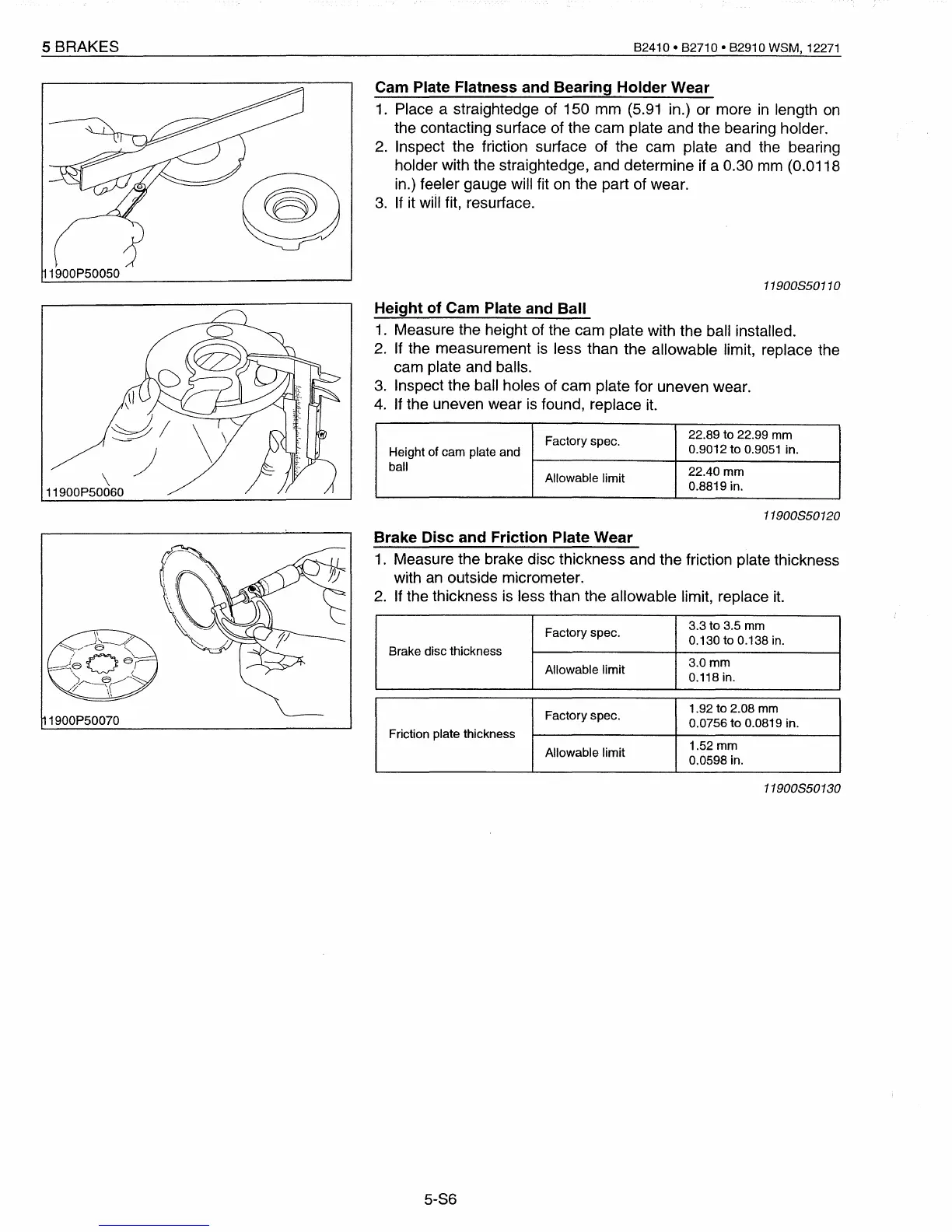

5 BRAKES
\
11900P50060
82410·
82710·
82910 WSM,
12271
Cam Plate Flatness and Bearing Holder Wear
1.
Place a straightedge of 150 mm
(5.91
in.) or more
in
length
on
the contacting surface of the cam plate and the bearing holder.
2.
Inspect the friction surface of the cam plate and the bearing
holder with the straightedge, and determine if a 0.30
mm
(0.0118
in.) feeler gauge will fit
on
the part of wear.
3.
If
it will fit, resurface.
11900850110
Height of Cam Plate and Ball
1.
Measure the height of the cam plate with the ball installed.
2.
If
the measurement
is
less than the allowable limit, replace the
cam plate and balls.
3.
Inspect the ball holes of cam plate for uneven wear.
4.
If the uneven wear
is
found, replace
it.
Factory spec.
22.89 to 22.99 mm
Height of cam plate and
0.9012 to
0.9051
in.
ball
22.40 mm
Allowable limit
0.8819 in.
11900850120
Brake Disc and Friction Plate Wear
1.
Measure the brake disc thickness and the friction plate thickness
with
an
outside micrometer.
2.
If the thickness
is
less than the allowable limit, replace
it.
Factory spec.
3.3 to 3.5
mm
0.130 to 0.138 in.
8rake disc thickness
Allowable limit
3.0mm
0.118 in.
Factory spec.
1.92 to 2.08
mm
0.0756 to 0.0819 in.
Friction plate thickness
1.52 mm
Allowable limit
0.0598 in.
11900850130
5-S6
To Next Page
