9 ELECTRICAL SYSTEM

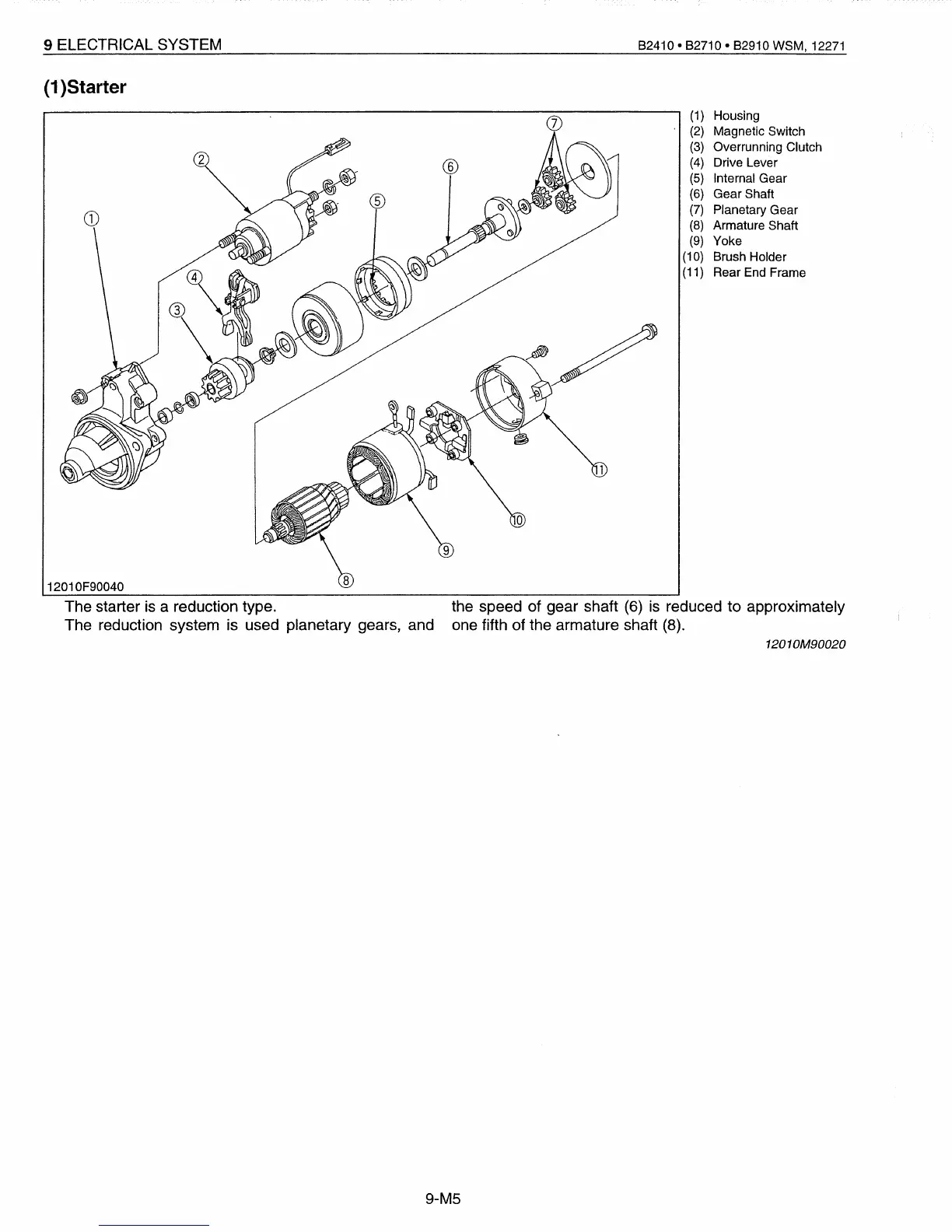

(1)Starter

12010F90040

The starter

a reduction type.

The reduction system is used planetary gears, and

B2410·

B2710·

B2910 WSM,

12271

(1)

Housing

(2)

Magnetic Switch

(3) Overrunning Clutch

(4)

Drive Lever

(5) Internal Gear

(6) Gear Shaft

(7)

Planetary Gear

(8)

Armature Shaft

(9)

Yoke

(10)

Brush Holder

(11)

Rear End Frame

the speed of gear shaft (6)

reduced to approximately

one fifth of the armature shaft (8).
