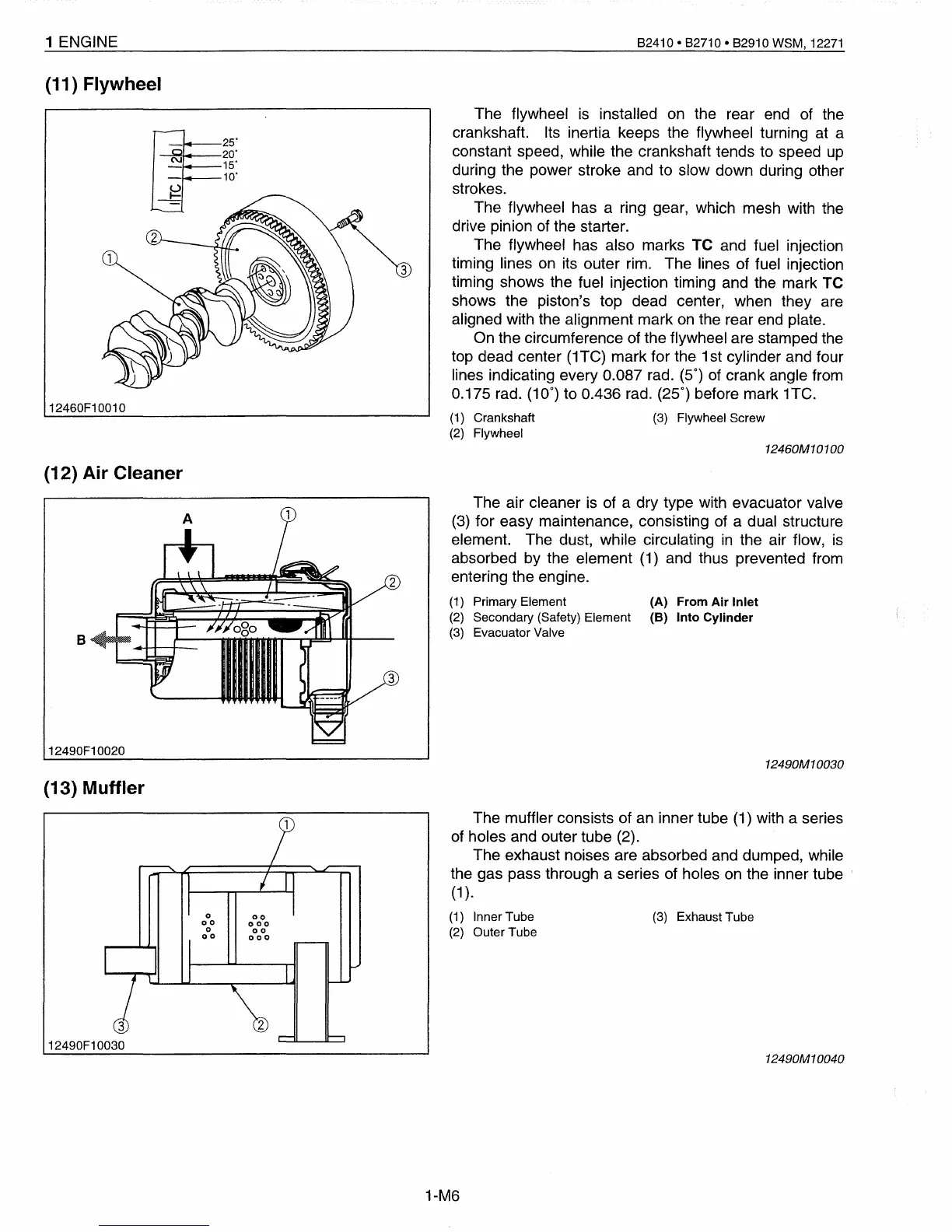

1 ENGINE
(11) Flywheel
12460F10010
(12) Air Cleaner
B
12490F10020
(13) Muffler
o
00
o
00
82410 • 82710 • 82910 WSM, 12271
The
flywheel is installed on the rear end of the
crankshaft. Its inertia keeps the flywheel turning at a
constant speed, while
the
crankshaft tends to speed up
during the power stroke and to slow
down
during other
strokes.
The
flywheel has a ring gear, which mesh with the
drive pinion of the starter.
The
flywheel has
also
marks
TC and fuel injection
timing lines on its
outer
rim.
The
lines
of
fuel injection
timing shows the fuel injection timing and the
mark
TC
shows
the
piston's
top
dead center,
when
they
are
aligned with the alignment
mark
on the rear end plate.
On
the
circumference of the flywheel are stamped the
top dead center (1TC)
mark
for
the 1st cylinder and four
lines indicating every
0.087
rad. (5°) of
crank
angle from
0.175 rad. (10°)
to
0.436 rad. (25°) before
mark
1TC.
(1)
Crankshaft
(3)
Flywheel Screw
(2)
Flywheel
12460M10100
The
air cleaner is of a
dry
type with
evacuator
valve
(3)
for
easy
maintenance, consisting of a dual structure
element.
The
dust, while circulating in
the
air flow, is
absorbed
by
the element (1) and thus prevented from
entering the engine.
(1)
Primary Element (A) From
Air
Inlet
(2)
Secondary (Safety) Element (B)
Into
Cylinder
(3)
Evacuator Valve
12490M10030
The
muffler consists
of
an inner tube (1) with a series
of holes and outer
tube
(2).
The
exhaust noises
are
absorbed and dumped, while
the
gas
pass through a series
of
holes on the inner tube
(1
).
(1)
Inner Tube (3) Exhaust Tube
(2)
Outer Tube
12490M10040
1-M6
