B2410 • B2710 • B291 0 WSM, 12271
6 FRONT AXLE
12271560090
Steering inner angle (2)
0.40 to 0.44 rad.
(When bi-speed turn Factory spec.
23' to 25'
neutral)
• NOTE
• When you adjust the bi-speed turn shift rod, be sure the
angle of the shift rod end is the same as the angle in the
figure left.
(1) Bi-speed Turn Shift Rod (3) 0.90 rad. (52')
(2) Steering Inner Angle
I 84mm
3.31 In.
I Factory spec.

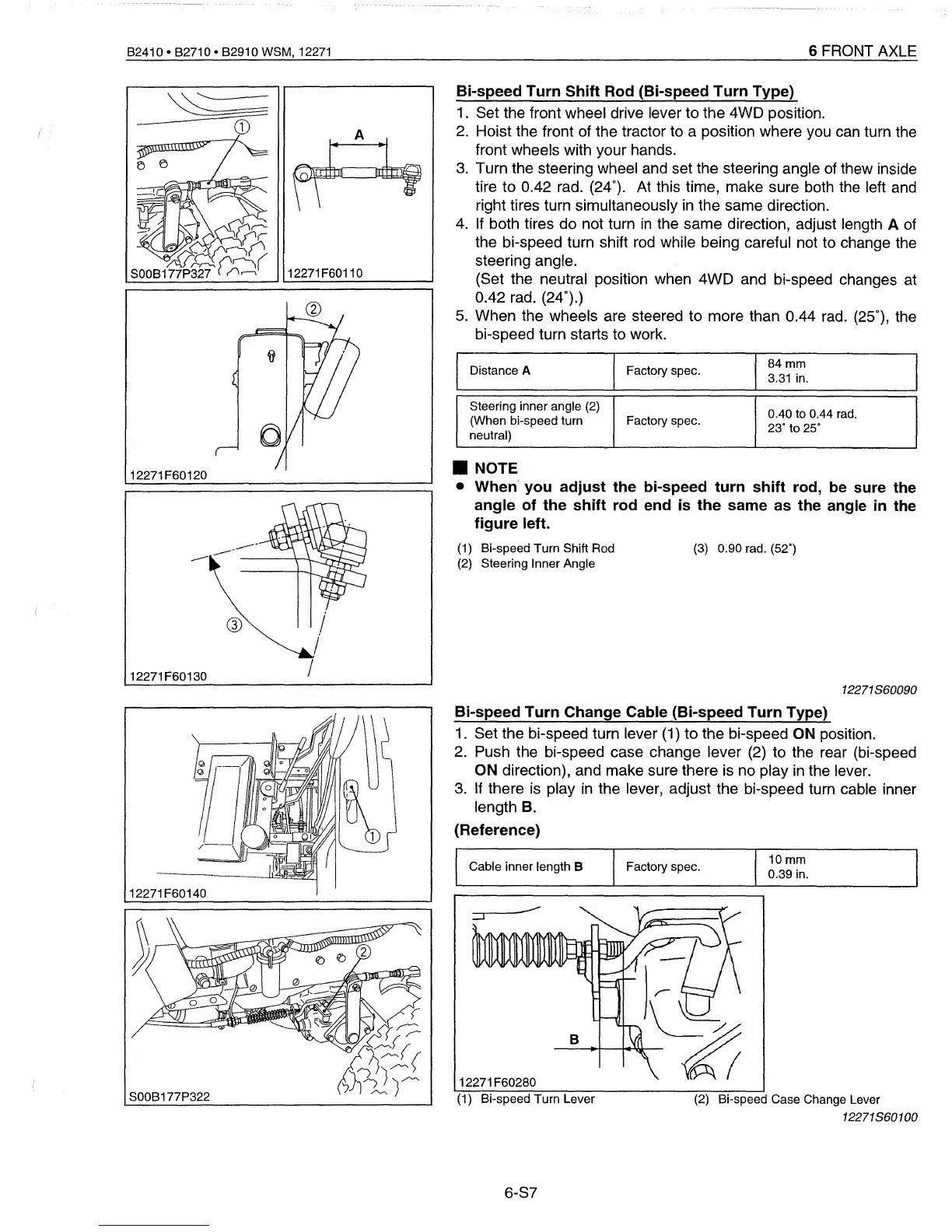

Bi-speed Turn Shift Rod (Bi-speed Turn Type)
1. Set the front wheel drive lever to the 4WD position.
2. Hoist the front of the tractor to a position where you can turn the
front wheels with your hands.
3. Turn the steering wheel and set the steering angle of thew inside
tire to 0.42 rad. (24°). At this time, make sure both the left
and
right tires turn simultaneously in the same direction.
4. If both tires do not turn in the same direction, adjust length A of
the bi-speed turn shift
rod while being careful not to change the
steering angle.
(Set the neutral position when 4WD and bi-speed changes at
0.42 rad. (24°).)
5. When the wheels are steered to more than 0.44 rad. (25°), the
bi-speed turn starts to work.
I Distance A
12271F60110
~ :
CD
12271F60120
12271F60130
Bi-speed Turn Change Cable (Bi-speed Turn Type)
1. Set the bi-speed turn lever (1) to the bi-speed ON position.
2. Push the bi-speed case change lever (2) to the rear (bi-speed
ON direction), and make sure there is no play in the lever.
3. If there is play in the lever, adjust the bi-speed turn cable inner
length B.
(Reference)
(2) Bi-speed Case Change Lever
12271560100
10mm
0.39 in.
Factory spec.
B
-,------
Cable inner length B
12271F60280
(1) Bi-speed Turn Lever
SOOB177P322
12271F60140
6-S7
